If you intend to use a seneye USB connected directly via USB to a PC please use
these instructions.
Thank you for purchasing a seneye web server (SWS). Please read the following instructions
carefully in order get your SWS working.
DO NOT PLUG IN OR TURN ON YOUR SWS BEFORE READING THESE INSTRUCTIONS
DO NOT CONNECT THE SWS TO THE EDIMAX WI-FI ADAPTOR UNTIL INSTRUCTED
IF YOU HAVE PURCHASED ANY PART OF THE SYSTEM 2nd HAND PLEASE CONTACT
US
Stage 1 - Registering an account on seneye.me
If you already have a seneye account please proceed to stage 2.
If you a new user please register an account at www.seneye.me. You will need to use the E-
mail address that you want your alerts sent too.
Once you have registered, please ignore any details on the Welcome E-mail that mention
downloading the seneye connect application. Seneye connect software is not needed
because everything will be done using your SWS. Once your registration is complete, please
continue through these instructions.
Stage 2 - Registering the SWS to your account
Please go to the following link to register your SWS to your account.
http://my.sws.li
You will be asked for your E-mail address, password, and the details that are on the sticker on
the SWS packaging. An example of this is shown below:
Please note that O is the letter O and not the number 0 in the ID
Advertisement
Summary of Contents for seneye SWS
- Page 1 Stage 1 - Registering an account on seneye.me If you already have a seneye account please proceed to stage 2. If you a new user please register an account at www.seneye.me. You will need to use the E- mail address that you want your alerts sent too.

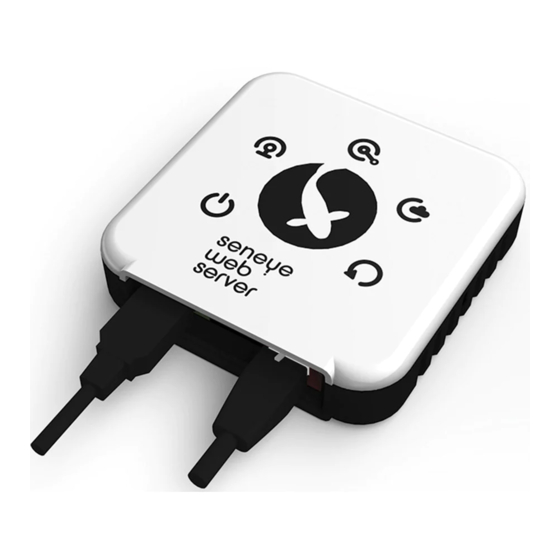

- Page 2 SWS may not be able to communicate with the seneye servers. Please click here for more infomation. An overview of the lights and connections on the SWS can be seen below. You will need to reference these later in the setup.
- Page 3 In order to connect the SWS to your LAN, the following ports need connecting in the order described below. At this stage it is very important not to connect your seneye device to the SWS. CONNECT ETHERNET...
- Page 4 Plug the USB power adaptor (supplied) into the mains. Connect the micro USB cable (supplied) into USB power adaptor. Connect the micro USB cable into the Micro USB port (black port) of the SWS. Your SWS will now boot up:...
- Page 5 Please leave the SWS connected unitl the following lights shown. If the lights flash in a circular Please leave the SWS connected unitl the following lights shown. If the lights flash in a circular Please leave the SWS connected unitl the following lights shown. If the lights flash in a circular sequence on the SWS after powering it up, it is downloading a firmware update.
- Page 6 Local Area Network (LAN) as the SWS. We would recomend doing this using FireFox as a browser, this renders the GUI of the SWS best. The SWS GUI can only be viewed on the LAN. If you are not on the network, the GUI will not be accessible.
- Page 7 Stage 5 - Using the SWS GUI Once you have found the SWS, you will find a page like that below. The page is dynamic and you can move the tiles. It will also resize to any device screen size.
- Page 8 Please note: your SUD will no longer communicate with the seneye connect on a PC after the firmware update You must connect the SUD directly to the SWS and not use any form of extenstion leads as the SUD will not communicate correctly.
- Page 9 SWS will flash in a circle to indicated this. Do not disconnect your SUD from the SWS until the tile show the image below and the LEDs on Do not disconnect your SUD from the SWS until the tile show the image below and the LEDs on...
- Page 10 Once the tile above is shows, and the lights have stopped circling, disconnect the SUD from Once the tile above is shows, and the lights have stopped circling, disconnect the SUD from the SWS and reconnect it to complete the update. the SWS and reconnect it to complete the update.
- Page 11 Setting up a WiFi module Now that your SWS is registered to your account and your SUD is connected, you can set up Now that your SWS is registered to your account and your SUD is connected, you can set up Now that your SWS is registered to your account and your SUD is connected, you can set up any adaptors that you are using for the connection.
