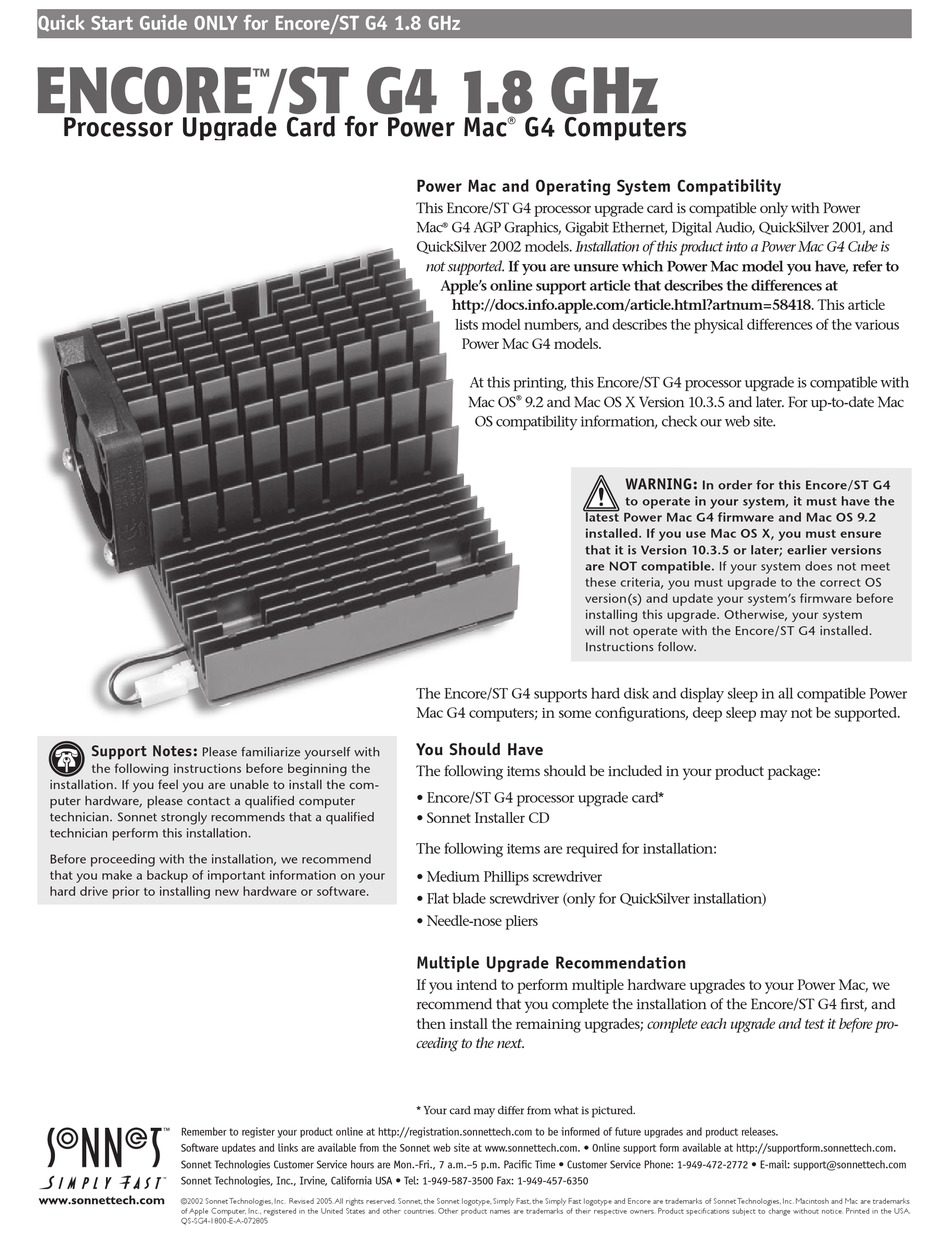

Quick Start Guide ONLY for Encore/ST G4 1.8 GHz
������
��������� ������� ���� ��� ����� ���
Support Notes:
Please familiarize yourself with
the following instructions before beginning the
installation. If you feel you are unable to install the com-
puter hardware, please contact a qualified computer
technician. Sonnet strongly recommends that a qualified
technician perform this installation.
Before proceeding with the installation, we recommend
that you make a backup of important information on your
hard drive prior to installing new hardware or software.
Remember to register your product online at http://registration.sonnettech.com to be informed of future upgrades and product releases.
Software updates and links are available from the Sonnet web site at www.sonnettech.com. • Online support form available at http://supportform.sonnettech.com.
Sonnet Technologies Customer Service hours are Mon.-Fri., 7 a.m.–5 p.m. Pacific Time • Customer Service Phone: 1-949-472-2772 • E-mail: support@sonnettech.com
Sonnet Technologies, Inc., Irvine, California USA • Tel: 1-949-587-3500 Fax: 1-949-457-6350
©2002 Sonnet Technologies, Inc. Revised 2005. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype and Encore are trademarks of Sonnet Technologies, Inc. Macintosh and Mac are trademarks
of Apple Computer, Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without notice. Printed in the USA.
QS-SG4-1800-E-A-072805
�� � � ��� ���
�
�
Power Mac and Operating System Compatibility
This Encore/ST G4 processor upgrade card is compatible only with Power
Mac
QuickSilver 2002 models. Installation of this product into a Power Mac G4 Cube is
not supported. If you are unsure which Power Mac model you have, refer to
The Encore/ST G4 supports hard disk and display sleep in all compatible Power
Mac G4 computers; in some configurations, deep sleep may not be supported.
You Should Have
The following items should be included in your product package:
• Encore/ST G4 processor upgrade card*
• Sonnet Installer CD
The following items are required for installation:
• Medium Phillips screwdriver
• Flat blade screwdriver (only for QuickSilver installation)
• Needle-nose pliers
Multiple Upgrade Recommendation
If you intend to perform multiple hardware upgrades to your Power Mac, we
recommend that you complete the installation of the Encore/ST G4 first, and
then install the remaining upgrades; complete each upgrade and test it before pro-
ceeding to the next.
* Your card may differ from what is pictured.
�� ���������
�
G4 AGP Graphics, Gigabit Ethernet, Digital Audio, QuickSilver 2001, and
®
Apple's online support article that describes the differences at
http://docs.info.apple.com/article.html?artnum=58418. This article
lists model numbers, and describes the physical differences of the various
Power Mac G4 models.
At this printing, this Encore/ST G4 processor upgrade is compatible with
Mac OS
9.2 and Mac OS X Version 10.3.5 and later. For up-to-date Mac
®
OS compatibility information, check our web site.
latest Power Mac G4 firmware and Mac OS 9.2
installed. If you use Mac OS X, you must ensure
that it is Version 10.3.5 or later; earlier versions
are NOT compatible. If your system does not meet
these criteria, you must upgrade to the correct OS
version(s) and update your system's firmware before
installing this upgrade. Otherwise, your system
will not operate with the Encore/ST G4 installed.
Instructions follow.
WARNING:
In order for this Encore/ST G4
to operate in your system, it must have the
