AC Guitars BASS-EQ-03 Instruction Manual

AC GUITARS
BASS-EQ-03 FILTER STYLE ACTIVE PREAMP
ACG EQ03 4K/A & 5K A/P iNSTruCTiON mANuAL

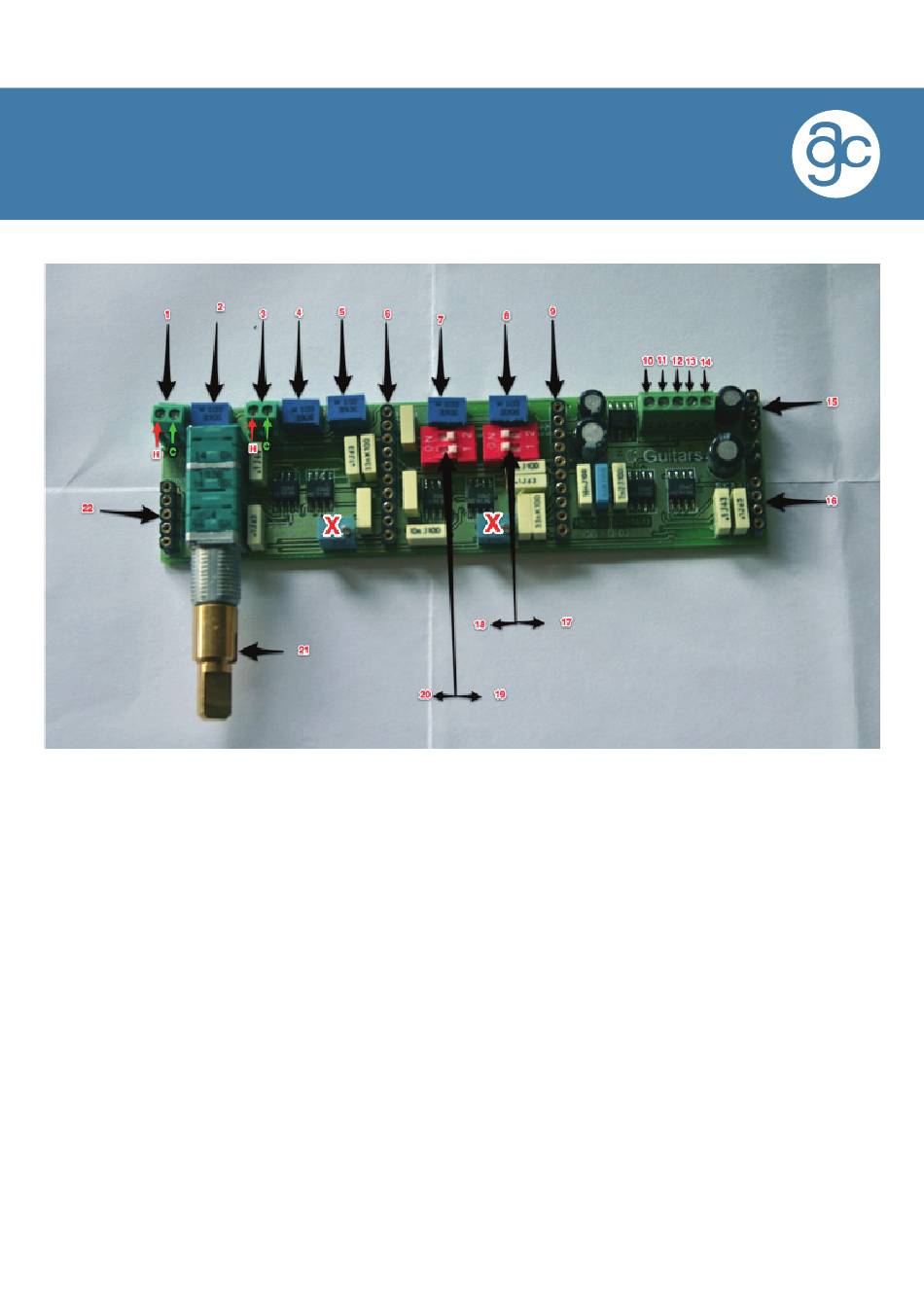

KEY
1 Neck pickup input. (H hot input C cold input)
2 Gain preset for neck pickup.
3 Bridge pickup input. (H hot input C cold input)
4 Gain preset for bridge pickup.
5 Treble filter blend.
6 Neck pickup filter connection.
7 Low-mid gain preset.
8 High-mid gain preset.
9 Bridge pickup filter connection.
10 + ve 9 or 18 volt.
11 + ve 9 or 18 volt.
The two presets marked with a red X are not user adjustable and should in no circumstances be moved. This will void the
warranty and AC Guitars will not be responsible for any damaged caused to the pre-amp or attached equipment.
12 Output.
13 Ground
14 Ground
15 Passive tone connection.
16 Treble filter connection.
17 Selector for high-mid frequency 500Hz Both white
switches should be moved to select frequency.
18 Selector for high-mid 800Hz Both white switches
should be moved to select frequency.
19 Selector for low-mid frequency 150 Hz. Both white
switches should be moved to select frequency.
20 Selector for low-mid frequency 250 Hz. Both white
switches should be moved to select frequency.
21 Volume Blend
22 Passive tone connection.
