Shadow SH 889-A Installation Instruction

Installation Instruction for Shadow SH 889-A:
Active Soundboard-Transducer and Undersaddle-Piezo-
Pickup with Endpin-Preamp
Contains:
soundboard transducer,
undersaddle pickup,
endpin preamp,
battery holder,
cable holder
1. Take off strings.
2. Take off the original saddle, place the piezo pickup with the output cable towards the lower E-string (E6)
and mark, where to drill the 3mm hole.

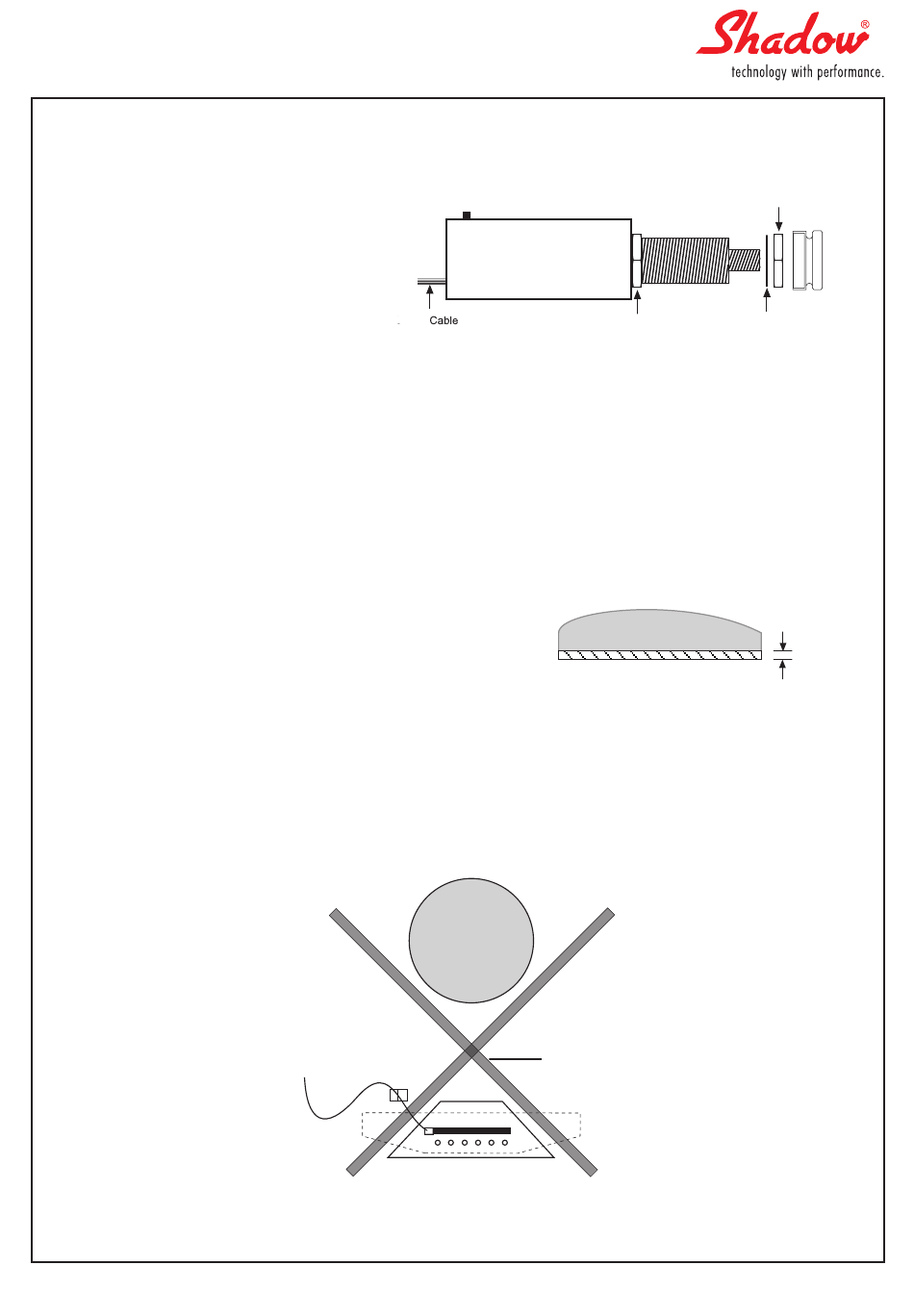

3 Remove original strap nut and increase original hole to 13mm diameter.
4. Clean up the saddle slot and eliminate the wood dust from the inside of the instrument.
5. Put the pickup-cable through the hole in the bridge and place the pickup into the bridge.
6. Accommodate the height of the original bridge.
Reduce of the thickness of the pickup (Fig. 2)).
Pay attention, that the lower side has to be absolutely
flat.
7. Screw the battery holder onto the base of the neck.
8. Put strings loosely on, so that you can reach the inside of the guitar.
9. Take off the protection foil from the pickup and put the pickup from the inside underneath the bridge (see Fig. 3). Pay
attention that the end with the cable on the side of the lower E-string (E6) roughly 10mm overlaps.
10. Use included clips to secure battery cable to prevent noise. Use one clip near the endpin and one clip near the battery.
Shadow Elektroakustik
Peter-Haendel Straße 2
91334 Hemhofen · Germany
Endpin
Fig. 1
Battery
E6
Fig. 3
Fax: +49 - 91 95 - 92 99 30
eMail: info@shadow-electronics.com
Inside Nut
Original Bridge
Fig. 2
Sound
Hole
Brace
Shadow Electronics of America Inc.
17791 Alexander Run
Jupiter, FL 33478 U.S.A.
Hexagon Nut
Strap Nut
Washer
1.8 mm
Fax: (561) 743 0460
eMail: jjmelch@shadow-pickups.com
