Installation and Operating Instruction for B.E.G. - Automatic-system-light LUXOMAT

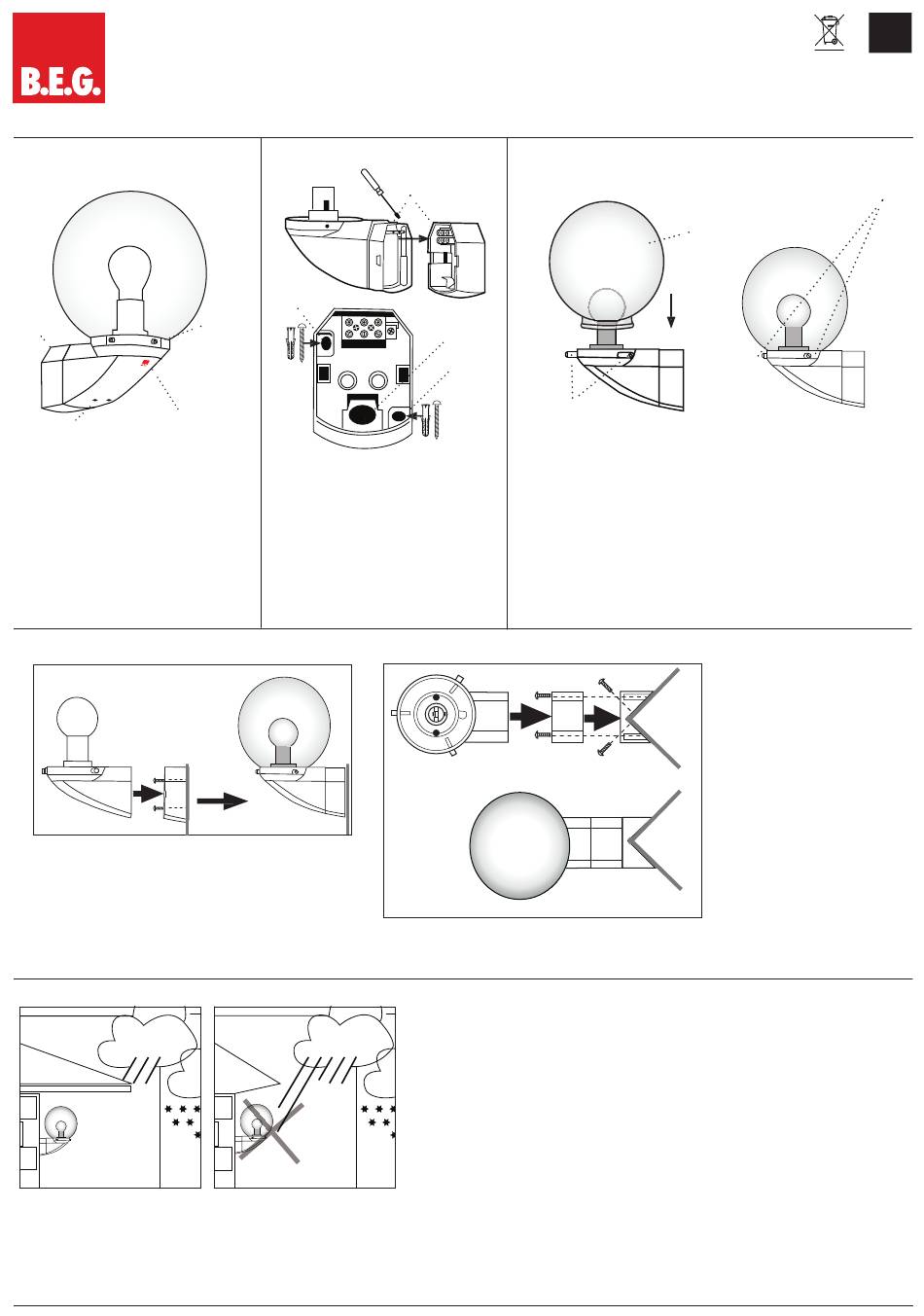

1. Assembly ALC-ELU SLS

4
1
3
1) System light lower section can be freely
combined with 17 different System-Globes
SG
2) Socket ring with stud screws
3) Locking screw for connector base
4) Plug-in connector base

4. Mounting types

1) Wall mounting

5. Mounting place

1
®

2. Installation

c
2
1) Detach lighting part from the base by means
of a screwdriver. (a)
2) Insert the cable, from the bottom (b) or from
the back here.
3) Connect the cables as indicated by the termi-
nal labels (see point 9 for wiring diagrams).
4) Attach the assembly base with two screws (c).
5) Screw in incandescent lamp 2G7 9 W
6) Secure system glass to system light lower
section (see point 3)
2
ALC-ELU SLS

3. Attaching the system glass

a
b
c
1
1) Un-fasten the stud screws (1)
2) Put system glass on socket ring (2)
3) Fasten the screws equally on all sides until the
system-glass is firmly attached (3).
2) Outside corner mounting with plug-in socket
1) If possible mount unit on a safe place
2) Influence of weather reduces the lifetime
of the unit. Please take care to mount
correctly.
ALC-ELU SLS
®
2
GB
3
