Summary of Contents for Space Television HD/MH-HD+A

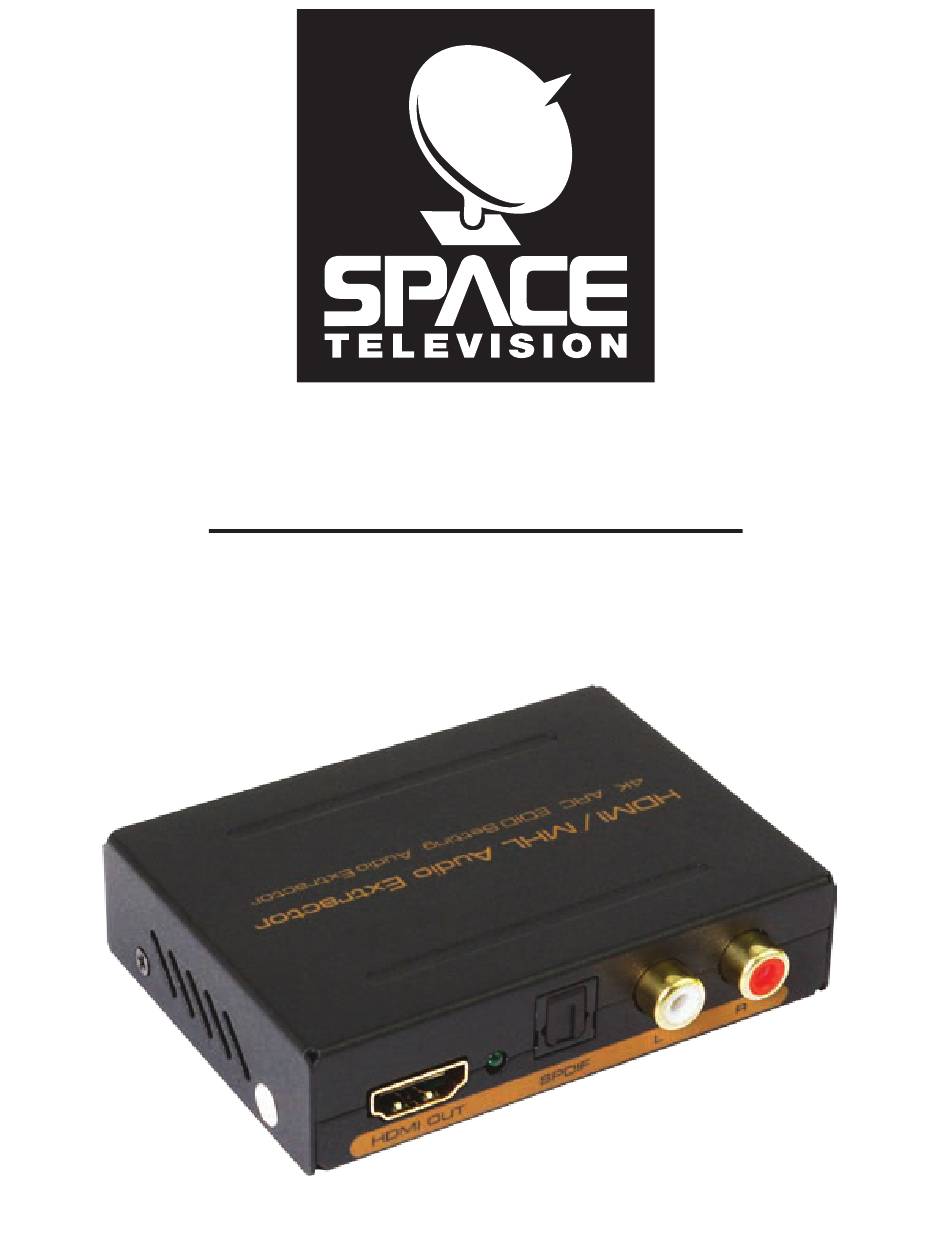

- Page 1 HD/MH-HD+A HDMI /MHL AuDIo (SPDIF+R/L) ExtRActoR (4K / ARC / EDID SEttIng AuDIo ExtRACtoR) HELPLINE 0861 40 41 42 • www.spacetv.co.za...
- Page 2 INTRODUCTION: Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Our series of HDMI converters, switches, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.
- Page 3 PHySICAl CONNECTION: Figure 1.0 Front Panel: DC5V: 5V DC-DC Power Interface PWR: Power Led Status Light HDMI/MHL IN: HDMI/MHL dual mode input ports GREEN LED: ARC Led Status Light ARC: ARC Function On/Off Key SWITCH: Switch button for Audio output mode, it can choose 5.1CH,2.0CH, ADV [Advance Audio] three kinds of audio output mode by circulate switching(When switch to 5.1CH audio mode output, the Digital audio signal receiving terminal must can support DTS/ DOLBY-AC3 decode, or the input D audio signal receiving terminal will have no sound...
- Page 4 OPERATINg AND CONNECTINg: 1. To use the HDMI cable to connect the HD Source with the HDMI input port of the converter or to use one MHL TO HDMI Cable to connect the MHL device with the HDMI input port of the extractor 2.
- Page 5 FAUlT FINDINg: Before power on, pls check the connection line carefully. Make sure that all interfaces are normally connected. The common trouble shooting way shows below: Trouble Description Cause and Ways to deal with 1. Check if the power adaptor head is truly and correctly inserted Non-Power-Connected the power socket.
- Page 6 SPECIFICATIONS: Model No HD/MH-HD+A 24/50/60fs/1080p/1080i/720p/576p/57 HDMI resolution 6i/480p/480i Support video color format 24bit/deep color 30bit, 36bit Audio output L/R+SPDIF Max bandwidth 300MHz Max baud rate 9.0Gbps Input/Output TMDS signal 0.5~1.5Volts p-p (TTL) Input/Output DDC signal 5Volts p-p (TTL) Input cable distance ≤15m AWG26 HDMI standard cable...
