Information to the User
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

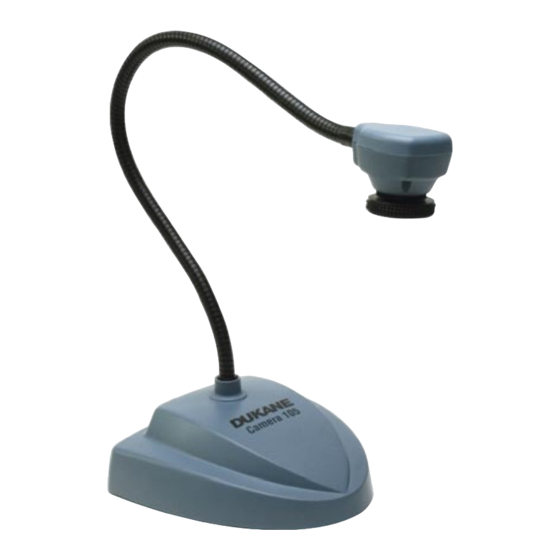

Technical Specifications for Dukane Camera 105
Unit Weight
3.8 lbs/ 1.7 kg
Base Dimension
7 in x 7 in x 7 in / 18 cm x 18 cm x 18 cm
Base Material
Polycarbonate
Neck Length
20 in/ 50.8 cm
Boxed Weight
7 lbs/ 3.18 kg
Head Type
Swivel
Lens
6mm
Magnification
30:1 & Greater
Focus
Knurled Focus ring - 1 in. (2.54 cm)
to Infinity
Illumination needed
20 Lux
Output signal
USB 2.0
OperatingVoltage/amperage
5 VDC/180mA
Eyepiece Adapters
1.36 in/34.5 mm built in
1.1 in/28 mm provided adapter
Cable
6 ft/122 cm
Applied Vision Software
Version 3.0
1 year
2900 Dukane Drive
Service Dept 800-676-2487
St. Charles, Illinois 60174
Fax: 630-584-5156
www.dukcorp.com/av
e-mail : avsales@dukcorp.com
Audio Visual
D D U U K K A A N N E E
Products
INS-VVDUK105
D D U U K K A A N N E E

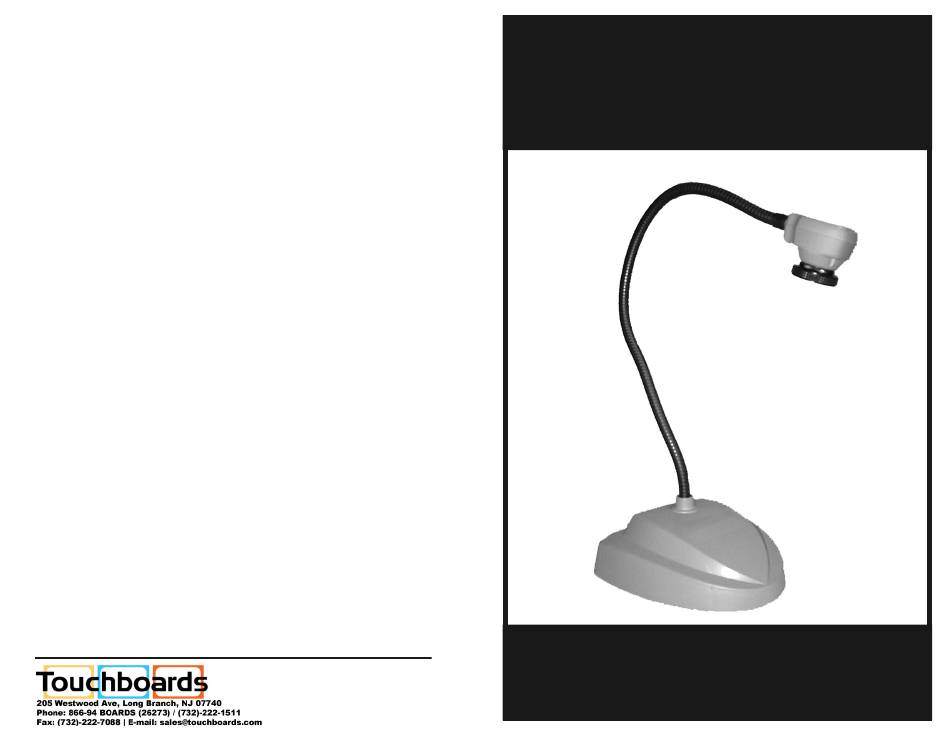

Camera 105
Instruction Manual
