Summary of Contents for Entec LBS-751
- Page 1 Quick Start Guide www.Entec-USA.com Date: June 2018 LBS-751 Electronic Sectionalizer Control Patent Pending Technology Version 1.1...

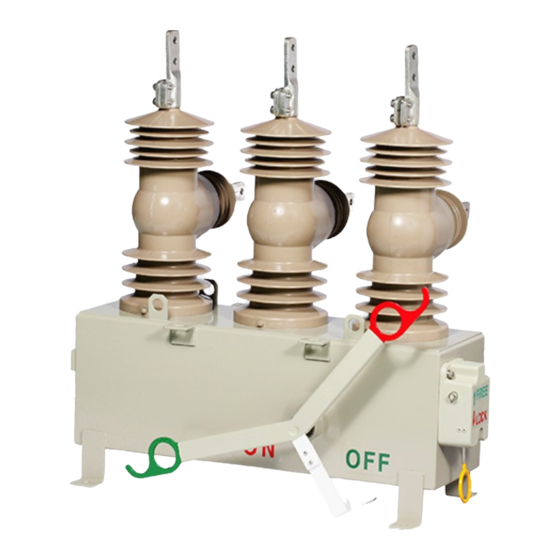

- Page 2 LBS-751 Control ENTEC is packaging a new Sectionalizer Control with our Load Break Switch (LBS) featuring an SEL-751 relay, innovative smart-logic and patent pending technology. Known as LBS-751, this new unit expands traditional sectionalizer applications and modernizes power system protection.
- Page 3 Quick Start Guide APPENDIX 1 LBS-751 Control APPENDIX 1 Install acSELerator Application SAVE INSTALLATION FILE ON DESKTOP THEN DOUBLE‐CLICK TO START INSTALL AFTER DOUBLE CLICKING THIS WINDOW APPEAR AFTER CLICKING YES www.Entec-USA.com 3 ...
- Page 4 Quick Start Guide APPENDIX 1 LBS-751 Control AFTER EXCTRACTION IS COMPLETE. CHECK BOXES ARE GRAYED‐OUT … CLICK OK. LICENSE AGREEMENT APPEARS NEXT. CLICK “I AGREE” TO CONTINUE. www.Entec-USA.com 4 ...
- Page 5 Quick Start Guide APPENDIX 1 LBS-751 Control AFTER YOU AGREE THIS WINDOW APPEARS. SELECT “I AGREE” AGAIN. THIS WINDOW APPEARS NEXT, TAKES ABOUT 2‐3 MINUTE TO INSTALL www.Entec-USA.com 5 ...
- Page 6 Quick Start Guide APPENDIX 1 LBS-751 Control AFTER INSTALL THIS WINDOW APPEARS LISTING DRIVERS FOR ALL SEL RELAYS. YOU HAVE THE CHOICE TO UNCHECK BUT THE EASIEST OPTOIN IS CLICK OK. AFTER YOU CLICK OK PROGRESS WINDOW APPEARS WHILE INSTALLING ALL THE DRIVERS. THIS TAKES A COUPLE OF MINUTES TO INSTALL www.Entec-USA.com 6 ...
- Page 7 Quick Start Guide APPENDIX 1 LBS-751 Control AFTER INSTALLING DRIVERS, THIS WINDOW IS NEXT. CLICK OK TO PROCEED. AFTER CLICKING OK, THIS WINDOW IS NEXT. INSTALLATION COMPLETE. www.Entec-USA.com 7 ...
- Page 8 Quick Start Guide APPENDIX 2 LBS-751 Control APPENDIX 2 Scada Setup Port Settings 1. Open RDB with acSELerator and select OEM file saved previously in Step 4. Save-As OEM Comm Config (e.g. Customer Field Device OEM Comm Config). 2. Use setting editor to open Port config. Make changes, save and upload new Port settings to 751.
- Page 9 Quick Start Guide APPENDIX 2 LBS-751 Control Modbus User-Defined Assignment Map Boolean Points Source Location 02h Read 03h Read Status Bits Tag Word Map Bit Coil User Table Address Bit Breaker Closed (52A) IN302 Row 18 6 150 MOD_040 165 6 Breaker Open (52B) IN303 Row 18 5 149 MOD_040 165 ...
- Page 10 Quick Start Guide APPENDIX 2 LBS-751 Control Analog Points Source Location 03h Read Special Analog Values Tag Scaler User Table Address Data Type Operations MV01 0.01 MOD_001 126 32 Bit Signed MV02 0.01 MOD_003 Phase PU (Amps) 128 32 Bit Signed Ground PU (Amps) MV03 0.01 MOD_005 130 32 Bit Signed SC03 1 MOD_065 Trip Counter ...
- Page 11 2 bytes CRC‐16 03h command will collect all data from the LBS-751 User-Defined Assignment Map with a single poll (125 registers). In many systems this method will collect Binary and Analog points with a single poll allowing more devices to communicate with the Scada master.
- Page 12 Quick Start Guide APPENDIX 2 LBS-751 Control Modbus Protocol Codes, continued Force Single Coil Command Use function code 05h to set and clear a coil. Remote bit coil will track the binary state value forced with the 05h function. State value “1” will Set remote bit coil and “0” will Clear the coil.
