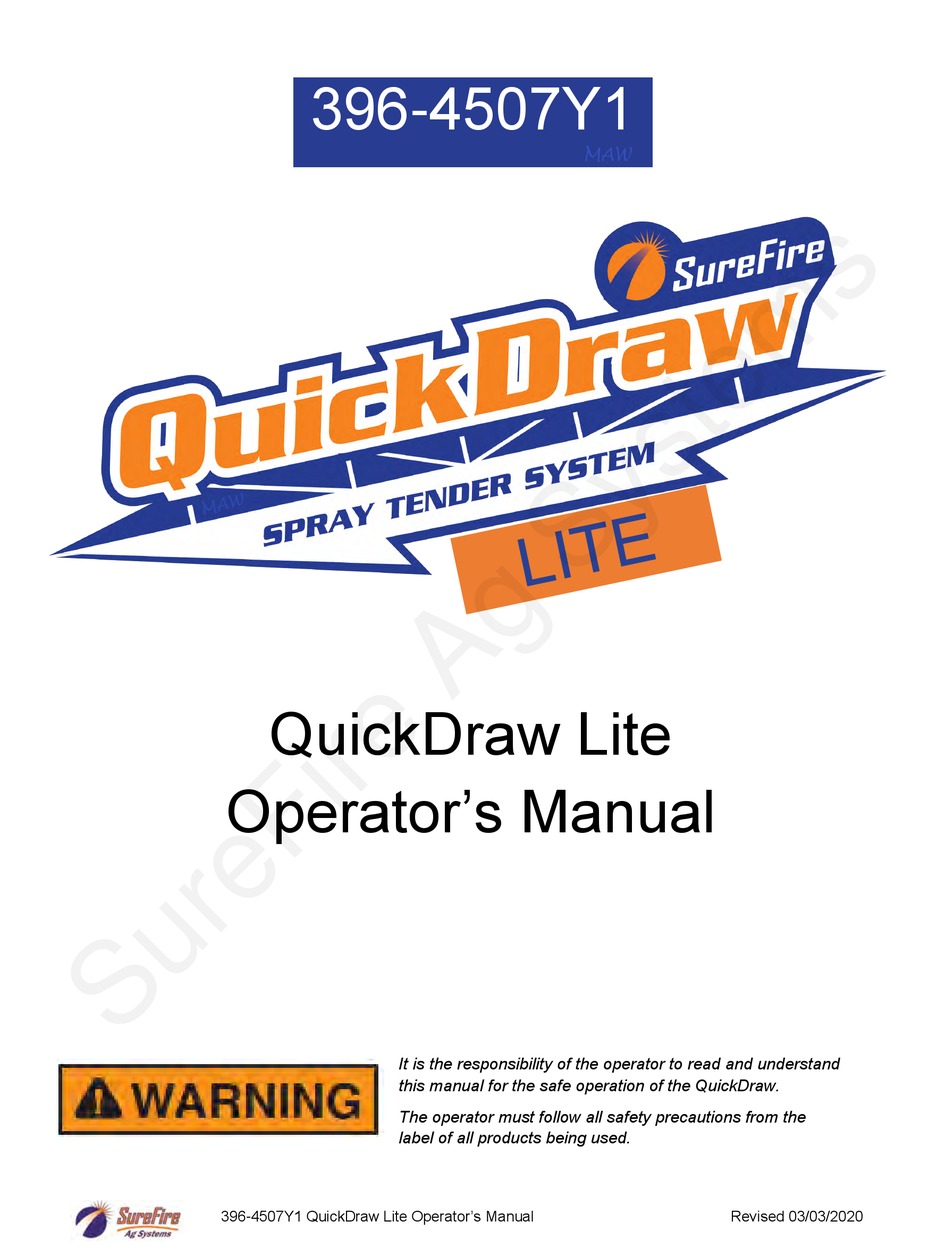

396-4507Y1
MAW
QuickDraw Lite
Operator's Manual
It is the responsibility of the operator to read and understand
this manual for the safe operation of the QuickDraw.
The operator must follow all safety precautions from the
label of all products being used.
396-4507Y1 QuickDraw Lite Operator's Manual
Revised 03/03/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the QuickDraw Lite and is the answer not in the manual?

Questions and answers

Summary of Contents for Surefire QuickDraw Lite

  • Page 1 It is the responsibility of the operator to read and understand this manual for the safe operation of the QuickDraw. The operator must follow all safety precautions from the label of all products being used. 396-4507Y1 QuickDraw Lite Operator’s Manual Revised 03/03/2020...
  • Page 2 AUTO VALVES RINSE VALVE MANUAL PRODUCT VALVES Open to rinse header Open to dispense this product between products Mass Meter— Could use optional Gear Meter Connect to Carrier Supply Connect to Product Totes 396-4507Y1 QuickDraw Lite Operator’s Manual Revised 03/03/2020...
  • Page 3 Optional Gear Meter The QuickDraw Lite can be purchased with a Gear Meter instead of the Mass Meter. The Gear Meter provides very accurate measurement of the chemical products. The Gear Meter must be used with a strainer to be sure no particles get into the finely machined gear mechanism. This strainer must be drained and cleaned out if a product has been used that even a minute amount of that product may cause harm to the crop to be treated.
  • Page 4 3-5 seconds rinse plumbing. AUTO PRODUCTS PAGE 2 takes you to the screen for Valves 4, 5, and 6. MANUAL CONTROLS brings up the Manual Op- eration and Debugging Screen. 396-4507Y1 QuickDraw Lite Operator’s Manual Revised 03/03/2020...
  • Page 5 Running a Batch with QuickDraw Lite Calculate the amount of each product that will be needed in the batch. Products can be loaded in any order. Open the carrier flow valve for preloading and for finishing the batch with carrier.
  • Page 6 Press OFF to stop the flow. QuickDraw Lite Maintenance Screen If it is necessary to replace a valve, come to this page to address the new valve. This page also shows the software version on this QuickDraw Lite. 396-4507Y1 QuickDraw Lite Operator’s Manual Revised 03/03/2020...
  • Page 7 If the batch is undershooting, lower this value. 1” valve default is 1.5 seconds. When connecting a new tote, set Prod Prime to ENABLED on the first batch, so the controller won’t time out before the hose gets filled with the new product. 396-4507Y1 QuickDraw Lite Operator’s Manual Revised 03/03/2020...

  • Page 8: Alarms And Warnings

    Alarms and Warnings ALARMS will prevent a batch from running and must be resolved before continuing. WARNINGS will NOT stop a batch, but should be checked to prevent a problem. 396-4507Y1 QuickDraw Lite Operator’s Manual Revised 03/03/2020...
