General Pump Turbo 21 Boxjet Manual

GENERAL PUMP
FEATURES

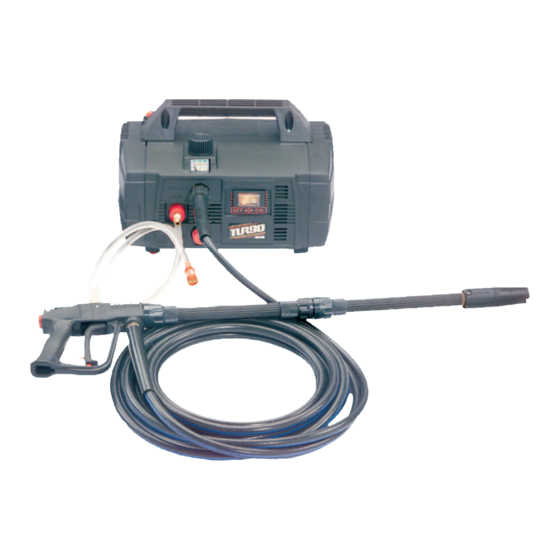

This lightweight, portable high-pressure
washer makes the toughest clean-up tasks
faster and easier. Weighing only 43 pounds, you
can take it virtually anywhere. Ideal for light
industrial applications and for home owners to
wash the car, the boat, the pool and patio. Use it
to clean rain gutters, driveways, lawn equipment
and recreational vehicles.
Each unit comes complete with a 26-foot
high-pressure hose, gun and lance with
variable spray nozzle (up to 45
pressure regulator and low-pressure soap
injection system.
Easy to carry - easy to use. Just remove the
travel plug, attach to a garden hose, and plug
into a standard 110V-15 amp circuit. Then you're
ready to wash your troubles away.
SPECIFICATIONS
Pressure Washer Model
Maximum Volume
Maximum Pressure
Single Phase Motor Power
Motor Protector
Motor Protection Grade
Maximum Inlet Temperature
Maximum Suction Depth
Hose Length
Cord Length
Weight
Oil Capacity
Oil Type
Dimensions
A member of the Interpump Group
), adjustable
o
PU1021 (Turbo 21 Boxjet with Multireg)
Current Thermal Overload
(35 ft. GFCI Cord U.L. Approved)
#100214 (6-pack) or #100216 (24-pack)
Turbo 21 Boxjet
Electric Pressure Washer
2.1 GPM
1000 PSI
1.5 HP
ISO IP55
140 o F
3.3 ft.
26 ft.
7 ft.
42.8 lbs.
12 oz.
General Pump Oil
14.2" x 9.7" x 9.4"
