Summary of Contents for Tranquil Mount TMO-ML02

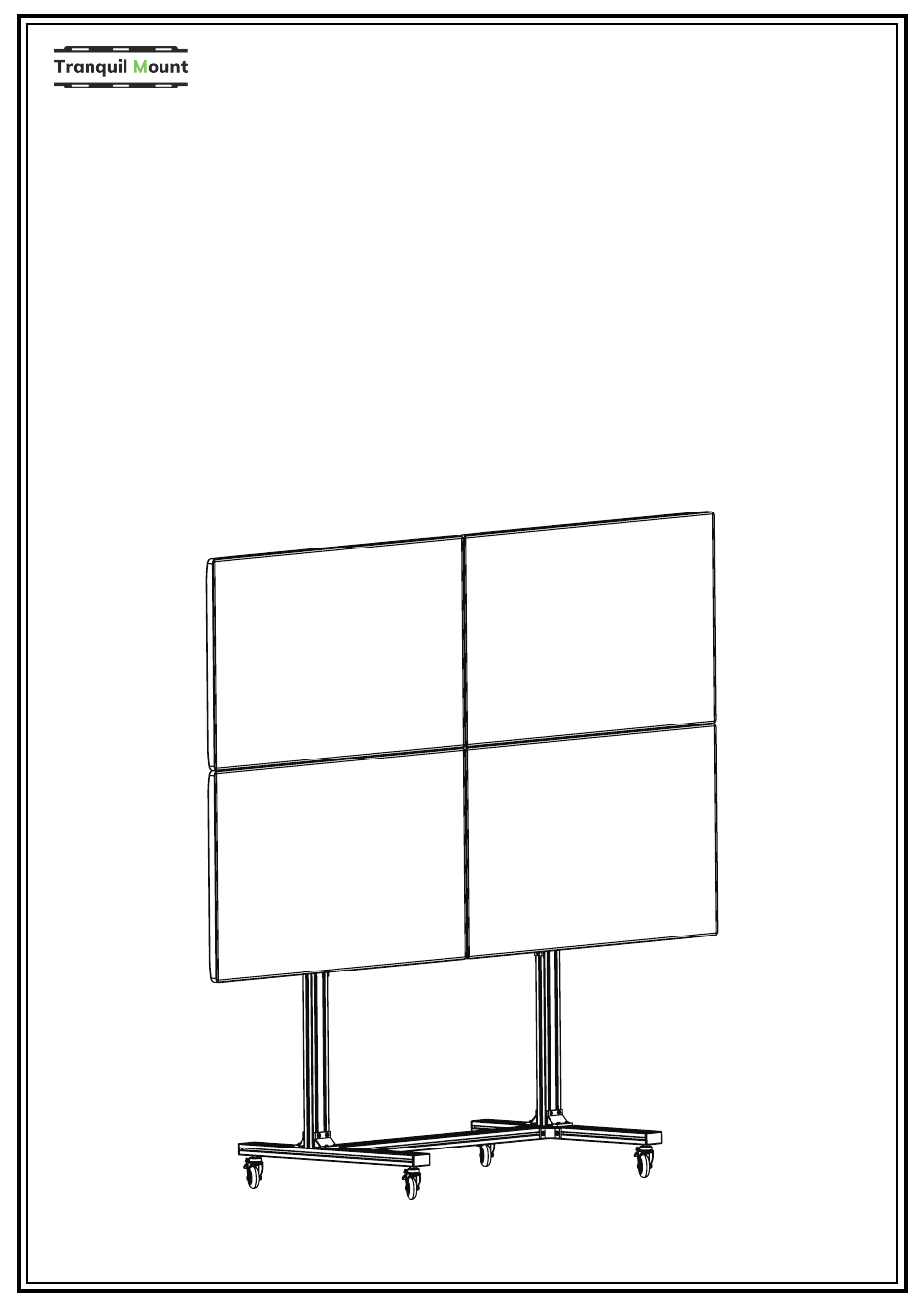

- Page 1 INSTALLATION GUIDE Multi-functional Professional Mobile Stand TMO-ML02 For TV panels:32”-55”(x4) The Whole Load capactiy:400Lbs(181kg) MAX VESA:600x400mm...
- Page 2 WARNING • Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before attempting to begin your installation. • This product should only be installed by someone who has a basic knowledge of building construction,installation and fully understands these instructions.
- Page 3 Step1 Step2 Don’t overtighten the M8 screws,keep 3mm Adjust the direction of the “T” nut, put it into gap between the nut and the corner. the transverse beam, align and then lock M8 screw with M6 hex wrench we provided. 4040 corner Beam Align and then lock M8 screw with...
- Page 4 Step9 Step10 Repeat steps 7,8,9 installation method to install a third Extended panel installation, since the panel is relatively aluminum extrusion and the second panel. heavy, need two people carrying both ends to maintain a balance when tightening the nuts. 8.2x 16x1.5 washer 1 ( black...
