Summary of Contents for Easy Touch MODIG ET-8102

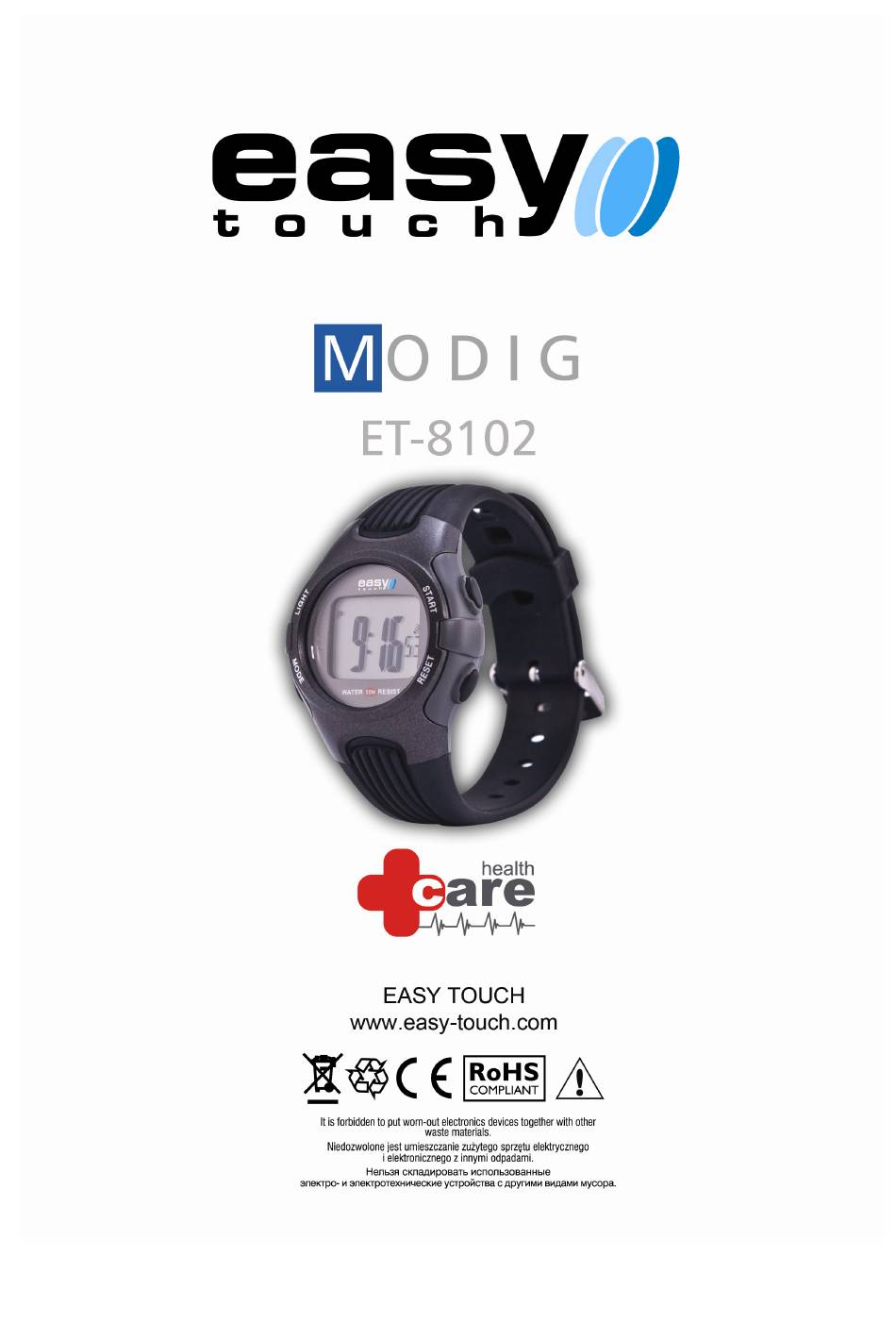

- Page 1 Page 1...

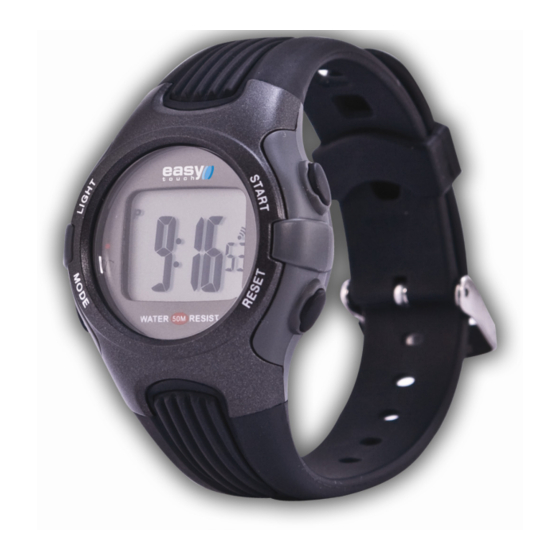

- Page 2 User’a manual for Easy Touch ET-8102 MODIG heart rate monitor 1.0 Introduction General Guide Thank you for purchasing Easy Touch ET-8102 set which contains a Watch and a Chest Strap. To see our www.easy-touch.com other products please visit With this product set, you can get ECG accurate heart rate readings! In addition to the absolute heart rate reading, the Watch also includes relative heart rate as a percentage of one's estimated maximum heart rate.
- Page 3 To switch between 12 or 24 hour format during the current time setting display. To switch Month-Day or Day-Month format during the current time setting display. To switch beep tone on/off during the current time setting display. To activate the 'start' or 'stop' function during Heart Rate Mode, Chronograph Mode and Countdown Timer Mode.
- Page 4 5.1 Current Time Mode - Setting the Current Time ow to Set the Current Time To select the setting display, hold the [M] button for 2 seconds in the Current Time Mode, and then the 'Second' digits will start flashing. In setting display, press the [M] b utton to move the flashing following the adjacent diagram to select among different settings.
- Page 5 6.0 Daily Alarm Mode - Setting the Daily Alarm and Hourly Chime ow to Set the Daily Alarm and Hourly Chime ON/OFF set the daily alarm between ON and OFF, press the [S] button in the Daily Alarm Mode. When the daily alarm indicator ' ' is appeared, the daily alarm is O To set the hourly chime between ON and OFF, press the [R] button in the Daily Alarm Mode.
- Page 6 7.0 Chronograph Mode - Chronograph Mode Chronograph Mode This Watch includes a stopwatch function which measures elapsed time and current split time. The measuring capacity of the chronograph: Measuring unit: 1/100 second, Measuring range: 99 hours, 59 minutes and 59.99 seconds. Chronograph Display When the Chronograph Display is selected, the Watch will show the following items on the display: At the first counting hour, the counting time minute, second and 1/100 second will be exhibited on the...
- Page 7 7.1 Chronograph Mode - Using the Chronograph How to Measure Elapsed Time During the 'All Zero' Display, press the [S] button once will start the counting, and press the [S] button again will stop the counting. How to Get a Split Time When the chronograph is counting, press the [R] button to select Split Time Display.
- Page 8 8.0 Countdown Timer Mode - Countdown Timer Display Countdown Timer Mode The measurement unit of the timer is 1 second, and the preset value of the timer can be set up to a maximum of 99 hours and 59 minutes 59 seconds. The initial setting of the timer is 1 minute.
- Page 9 8.1 Countdown Timer Mode - Setting the Countdown Timer ow to Set the Countdown Timer he following paragraphs will illustrate the procedure for setting the Timer. To select the setting display, hold the [M] button for 2 seconds in the Countdo wn Timer Display, and then the 'Second' digit will start flashing.
- Page 10 9.0 Heart Rate Mode – Precautions recautions / Tips wo contacts located on the back of the Chest Strap. These two contacts must make firm contact with the user's skin during measurement. DO NOT take heart rate measurem ent when diving or under water. Clean the contacts occasionally by applying a few drops of water, and wipe it dry with a paper towel to remove any residual grease.
- Page 11 9.1 Heart Rate Mode - Heart Rate Function Overview eart Rate Function Overview During exercise or sports, your heart naturally speeds up in pumping blood to the body in accordance with your increased energy level. This product set includes the fo llowing heart rate functions: Heart rate reading express in beats per minute (bpm).
- Page 12 9.2 Heart Rate Mode - Getting a Heart Rate Reading How to Get Ready to Receive Heart Rate Wear the Watch on your wrist. Place the Chest Strap on your chest, and make sure that the contacts of the Chest Strap are in firm contact with your chest.
- Page 13 9.3 Heart Rate Mode - What is Heart Rate Alert Zone Function What is Heart Rate Alert Zone Function This Watch includes a supplementary Heart Rate function - The Heart Rate Alert Zone Function. This feature can be function by setting an objective heart rate zone into the Watch, and hence, the Watch will alert the user when his /her heart rate is out of the objective heart rate zone.
- Page 14 9.4 Heart Rate Mode - Using the Heart Rate Alert Zone Function Heart Rate Alert Zone If the heart rate alert zone is ON, the 'ZONE' icon will be ON. If the acquired heart rate is out of zone, either it is exceed or below the zone limit, it will be flashing at the upper right hand corner.
- Page 15 9.5 Heart Rate Mode - What is Percentage of Estimated Maximum Heart Rate stimated Maximum Heart Rate (EMHR) is calculated by using the below formula. EMHR = 220 - user age Percentage of Estimated Maximum Heart Rate is calculated by using the below formula. %EMHR= acquired heart rate4EMHR X100% ercentage of Estimated Maximum Heart Rate addition to absolute heart rate reading, the Watch also includes the percentage of estimated maximum...
- Page 16 9.7 Heart Rate Mode - Heart Rate with Exercise Timer Exercise Timer Mode Exercise Mode works together with the heart rate measurement. In Exercise Time Mode, press the [S] button to start the heart rate measurement, the 'hour', 'minute' and 'second' digits start flashing.
- Page 17 9.7.1 Heart Rate Mode - Setting the Heart Rate Alert Zone etting Principles he Heart Rate Alert Zone can be set by one of the following principles: User's age. Heart Rate. Percentage o f Estimated Maximum Heart Rate. User can set the Alert Zone by age in the setting d escribed in chapter 5.1, or User can set the zone deliberately by entering the heart rate or percentage of estimated maximum heart rate...
- Page 18 Automatic age calculation from birthday for estimated maximum heart rate calculation Hourly Chime on the hours Key tone ON/OFF Heart Rate Mode Measuring range: 40 to 240 bpm Default Heart Rate Zone Value: 12 6 / 165 bpm for lower/higher limit respectively Default Heart Rate % in Zone Value: 65% / 85% for lower/higher limit respectively Daily Alarm Mode Daily Alarm: 1 daily...
- Page 19 2.0 Chest Strap Batteries hest Strap Battery Low your Chest Strap stops transmitting the heart rate signal to your watch (NO heart rate reading show on the Watch), it might be due to the battery of the Chest Strap running out. We recommend that you have the battery replaced by an authorized se rvice agency only.
