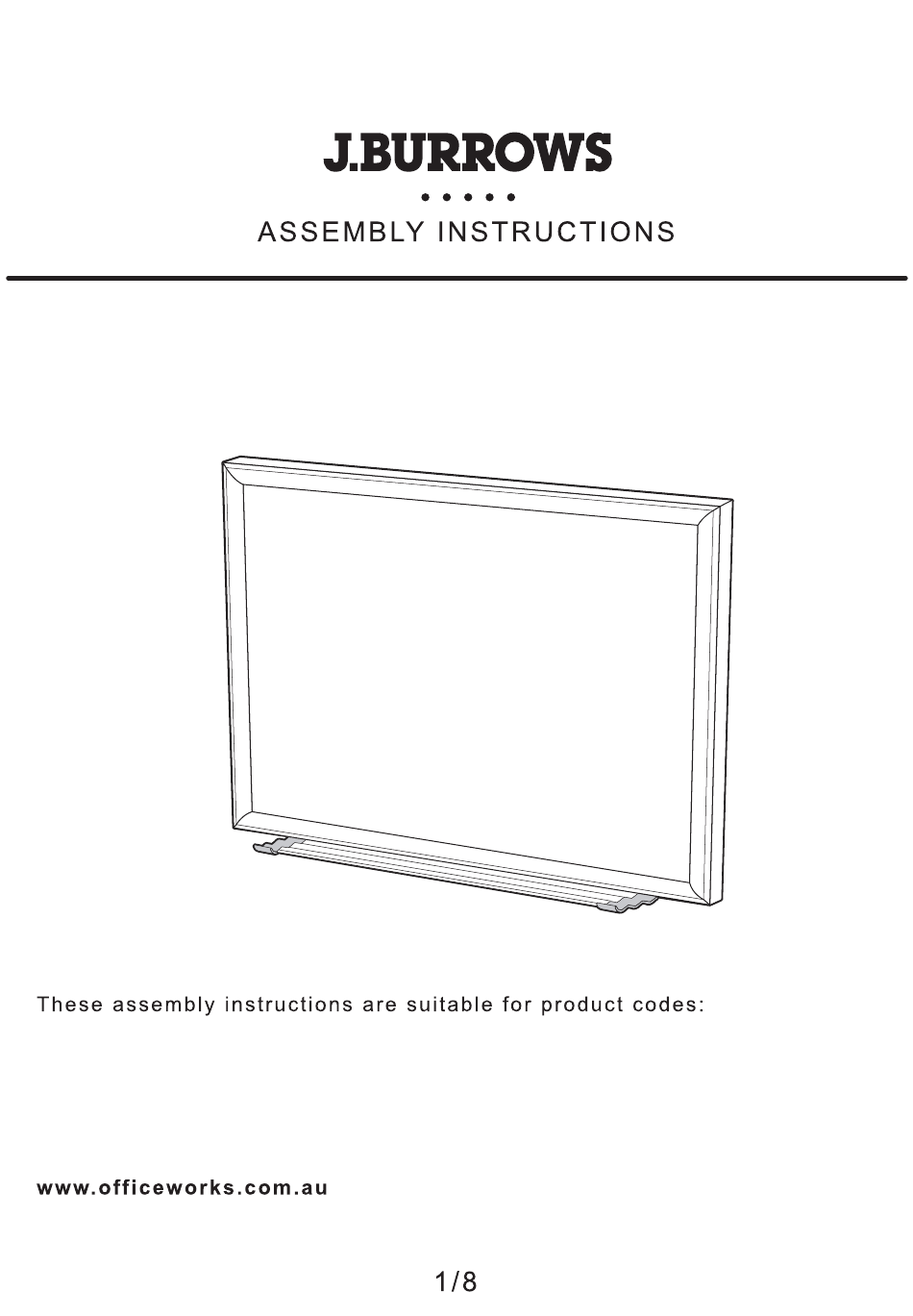

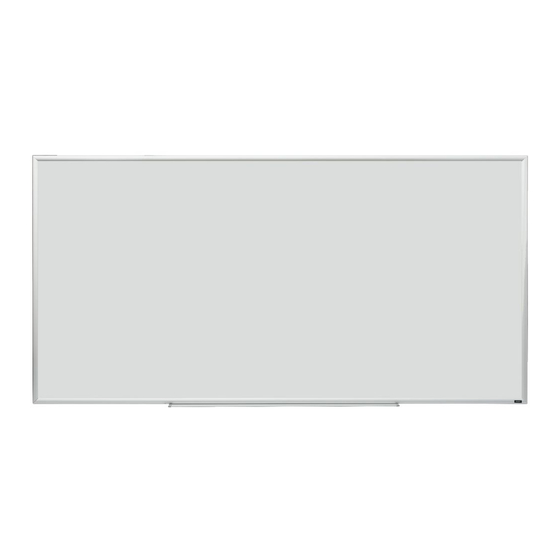

- Page 1 PORCELAIN BOARD JBWBPOR189 (90X180cm) JBWPOR1812 (120X180cm) JBWPOR2112 (120X210cm) JBWPOR2412 (120X240cm)
- Page 2 PART LIST & Qty [1] Board [2] J Rails Applicable Product Size ( cm ) 90X180 1 Pc 1600 mm / 1 Pc 120X180 1 Pc 1600 mm / 1 Pc 120X210 1 Pc 1800 mm / 1 Pc 120X240 1 Pc 2160 mm / 1 Pc PART LIST &...
- Page 3 STANDARD MOUNTING REQUIRED TOOLS STEP 1 Attach the pen tray to the board a ) Place board face down on a table b ) Align pen tray [3] With pre-drilled holes along the lower edge of metal board frame c ) Place small screws [4] through pre-drilled holes in the pen tray into the metal board frame. Tighten screws with a Phillips screwdriver .
- Page 4 STEP 2 STEP 3...
- Page 5 STEP 4 STEP 5 Use tot al 5pcs of screw s f or 90x180c m boar d Use tot al 5pc s of sc rews f or 120 x180 cm boa r d Use total 6pc s of sc rews for 120 x210cm boa r d Us e tot al 7pc s of sc rew s f or 120 x 240cm boar d...
- Page 6 STEP 6 Hang built-in brackets into J Rail.
- Page 7 lncludes a hazardous situation that, if not avoided, could result in death or serious injury: - To reduce the risks associated with choking, dispose of all unused small parts after assembly. - Do not intentionally inhale the contents of the dry erase markers - use only in well-ventilated areas.
- Page 8 Warranty 8 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 8 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
