"Reason", "Rack Extension" and associated logos are trademarks of Propellerhead Software AB.
All commercial symbols are protected trade names of their holder and their inclusion within this guide and the associated
Reason Rack Extension product are merely indicative and do not constitute endorsement of this product by any party.
AVAILABLE IN THE
www.jiggery-pokery.com

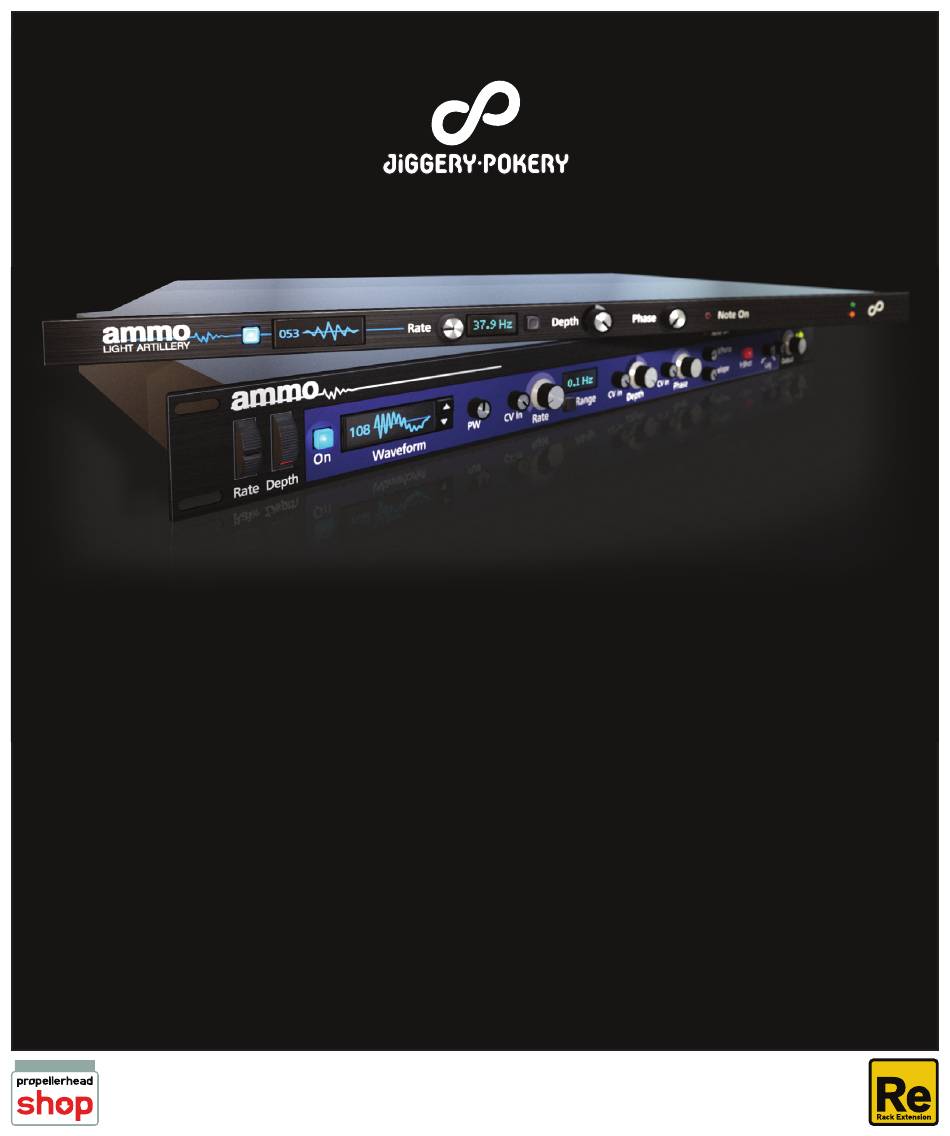

Ammo 100LA
Ammo 100LA
v1.2.0
v1.2.0
Produced and Designed by Matt Black
Coding by Pitchblende Ltd for Jiggery-Pokery
© 2014 Jiggery-Pokery Sound
All rights reserved.
www.jiggery-pokery.com
Ammo 100LA "Light Artillery"
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ammo 100LA and is the answer not in the manual?

Questions and answers

Summary of Contents for Jiggery-Pokery Ammo 100LA

  • Page 1 Ammo 100LA v1.2.0 v1.2.0 Produced and Designed by Matt Black Coding by Pitchblende Ltd for Jiggery-Pokery © 2014 Jiggery-Pokery Sound All rights reserved. “Reason”, “Rack Extension” and associated logos are trademarks of Propellerhead Software AB. All commercial symbols are protected trade names of their holder and their inclusion within this guide and the associated Reason Rack Extension product are merely indicative and do not constitute endorsement of this product by any party.

  • Page 2: Oscillator Controls

    Ammo 100 “Light Artillery” Ammo 100LA is the cut-down, oscillator-only edition of the Ammo Rack Extension series. Eschewing the complex internal routing matrix and internal envelope, the 100LA is an effi cient, rack-space saving device providing 128 preset waveforms, with the same a huge rate of fi re, from 0.001 Hz to 8.4 kHz at both audio and CV rate. Ammo’s high quality oscillator has built-in oversampling providing non-aliased audio up to a massive 18 kHz of harmonic content, even using a 44.1 kHz sam-...
  • Page 3 In High Range the scaling is set equal temperament based on master tuning of A=440 Hz. Change the default High Range value to alter the master tuning, however for most purposes use Semitone and Cents to fi ne tune the oscillator pitch Ammo 100LA “Light Artillery” www.jiggery-pokery.com...
  • Page 4 • Envelope CV In: —Charlotte Envelope Generator is a great companion to Ammo 100LA. When it is connected to Ammo 100LA’s Env CV In you can scale the envelope input using this control. Normally this can be left at maximum •...
  • Page 5 For S&H random oscillator pitch effects route a Low Range random Ammo 100LA to a High Range Ammo 100LA. Set the master pitch on the latter and use the CV In trims on the audio oscillator to control the amount the pitch changes, although note the resulting pitch itself won’t be tuned as the random voltage can result in pitch frequencies between notes.

  • Page 6: Performance Controls

    Back panel connectivity By including both CV and audio input and output, Ammo 100LA punches above its weight with the ability to create a truly modular system in conjunction with other Reason devices, but especially products in the Jiggery-Pokery Super-Spider range.
  • Page 7 The oscillator signal is sent to all CV and audio outputs regardless of which Range you have selected; the internal signal path is entirely at audio rate. The CV outputs downsample the audio signal to Reason’s standard 1/64 CV rate. Ammo 100LA “Light Artillery” www.jiggery-pokery.com...
  • Page 8 Audio rate FM effects are easily achievable by modulating an oscillator with another oscillator. Simply connect the audio output of one Ammo 100LA, the modulator, to the Audio Rate CV In of a second, the carrier, which is then used to cre- ate the sound output to the mix channel.
  • Page 9 “Receive Notes” for the two new oscillators in the TS840 programmer! Now play your keyboard and you have a four voice mono- synth. But we have a Charlotte connected, so we can make this polyphonic with just one more knob twist! Ammo 100LA “Light Artillery” www.jiggery-pokery.com...
  • Page 10 A selection of instrument and insert effect Combinators featuring the Ammo 100LA are available from your patch browser. As befi ts the sonic heart of a modular system, note that most of the patches which are using one or more Ammo 100LA devices as the instrument sound source require Charlotte Envelope Generator.
  • Page 11 Envelope/Gate/Oneshot behaviour types The following table is a list of the behaviours available in Ammo 100LA depending on how you use the device, either stan- dalone with no external input, via a keyboard or the sequencer (MIDI Trig.), or in conjunction with the Charlotte VEGN or alternatively Thor’s gate/cv output and global envelope using the three Ammo 100LA Sequencer inputs Env, Gate and CV.
  • Page 12 Remote Mapping //Remote Map template for Instruments Jiggery-Pokery Sound: Ammo 100LA Modulation Oscillator Scope Jiggery Pokery com.jiggerypokery.Ammo100LA Control Surface Item Remotable Item Scale Mode //Map _control_ Oscillator On //Map _control_ Range //Map _control_ Low Rate Hz //Map _control_ High Rate Hz...
  • Page 13 Special thanks to the Ammo 100LA testing and patch crew: Dogboy1973, JesseRyckman, 0zone0, Reason1O1, Aroneous, meowsqueak, alteree, celticdale, kylelee, NaviRetlav, Shokstar and odarmonix. Ammo 100LA was designed and assembled by Jiggery-Pokery Sound, of London, England; DSP coding by Pitchblende Ltd, of Middle Earth. Jiggery-Pokery Sound Pitchblende Wellington, New Zealand.
  • Page 14 Rack Extensions in the Propellerhead Shop • Ammo 100LA Modulation Oscillator - Portable single-channel oscillator for audio and CV rate synthesis and LFOs, featuring 128 waveforms • Ammo 400R Modulation Oscillators - 4-channel LFO generator with audio output, featuring 136 waveforms and advanced modulation mixing •...
