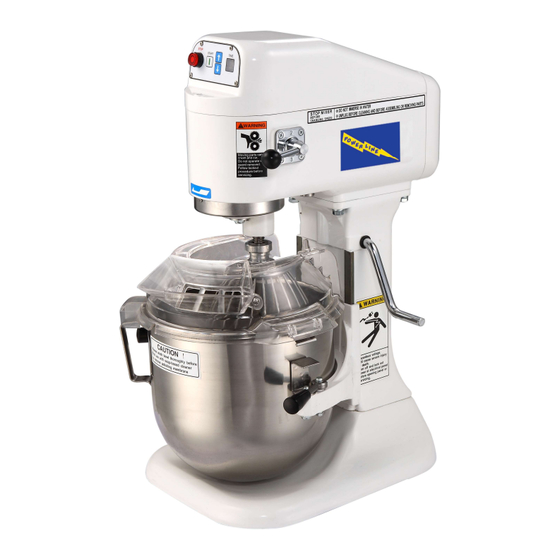

Powerline PM-8C Instruction Manual

Tabletop mixer
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

POWERLINE EQUIPMENT COMPANY
Instruction Manual for Tabletop Mixer PM-8C
POWERLINE EQUIPMENT COMPANY
Pulaski Street, Norwalk, CT 06851 USA
Tel：203-847 2357, Fax：203-847 6480
www.powerlineequip.com
CONTENTS
................................................................. P. 2
................................................................. P. 3
................................................................. P. 3
................................................................. P. 6
................................................................. P. 6
................................................................. P. 7
................................................................. P. 7
................................................................. P. 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-8C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powerline PM-8C

  • Page 1: Table Of Contents

    POWERLINE EQUIPMENT COMPANY Instruction Manual for Tabletop Mixer PM-8C POWERLINE EQUIPMENT COMPANY Pulaski Street, Norwalk, CT 06851 USA Tel：203‐847 2357, Fax：203‐847 6480 www.powerlineequip.com CONTENTS Overall View of the Mixer ……………………………………….…………….… P. 2 Installation Instructions ……………………………………..………………… P. 3 Operating Instructions ……………………………………….….…………… P. 3 Cleaning Instructions …………………………………….……………….…...
  • Page 2 DO NOT hose down or pressure wash any part of the mixer.  NEVER bypass, alter or modify this machine. Doing so may create hazard and will void warranty.  If you have any questions, please contact any local representative or POWERLINE directly.

  • Page 3: Overall View Of The Mixer

    (E) Bowl Weld Clip (F) Bowl Cradle (G) Bowl Lift Arm (H) Speed Selector SPECIFICATION (1) 1 Speed 132 rpm Model PM-8C Speeds** (2) 2 Speed 234 rpm (3) 3 Speed 421 rpm 40 x 30 x 58 cm (Net) Dimensions...

  • Page 4: Installation Instructions

    Installation Instructions INSTALLATION The machine is supplied factory lubricated and ready to run. It can be positioned on any substantial work surface or bench which is capable of supporting a load of 30kg. The transportation should require two people. Please see Figure 1.
  • Page 5 If the motor labors, stop the machine and reduce the size of the mix immediately. Damage resulting from improper use is not covered by the POWERLINE warranty. For operator safety, the machines is fitted with a bowl guard which is electrically interlocked to ensure that the mixer cannot operate unless the guard is correctly positioned and the bowl is raised.
  • Page 6 Operating Instructions FITTING THE MIXING TOOL Slide the bayonet fitting of the tool onto the PLANETARY SHAFT and twist clockwise to secure it in position. To remove the mixing tool, slides the tool up the PLANETARY SHAFT slightly and twist counter clockwise. Please see figure 3. Note: After cleaning, please wipe the shaft with Vaseline or oil for better lubrication and preventing rust.

  • Page 7: Cleaning Instructions

    Maintenance MAINTENANCE Regular maintenance is necessary on all machines if they are to remain in good working order. It is strongly recommended that this be carried out by trained technicians from a POWERLINE appointed distributor. GEARBOX LUBRICANT Please refill the lubricant inside the gearbox every 5 years. We recommended that this servicing or maintenance work must be carried out by trained technicians from a POWERLINE appointed distributor.

  • Page 8: Limited Warranty

    Please use TACBECON grease “DGK-100” to lubricate the planetary unit. Limited Warranty WARRANTY POWERLINE provides one year warranty, either from date of dispatch or the date of purchase from one of our approved distributors. POWERLINE will replace any defective parts resulting from faulty design, material or workmanship. In addition to this, any repair must be carried out by our authorized service agent.

  • Page 9: Capacity Chart Table

    Capacity Chart Table Product Agitator and Speed PM-8C Waffle or Hot Cake Batter Beater 3 ltrs. Whipped Cream Whip 2 ltrs. Mashed Potatoes Beater 1.8 kg. Egg Whites Whip 0.35 ltr. Meringue Whip 0.24 ltr. (Qty of Water) Raised Donut Dough Hook 1 kg.
