Summary of Contents for Kingcat KR7201G

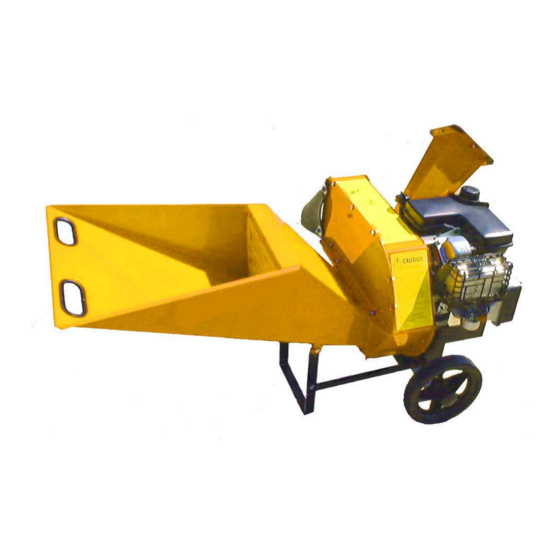

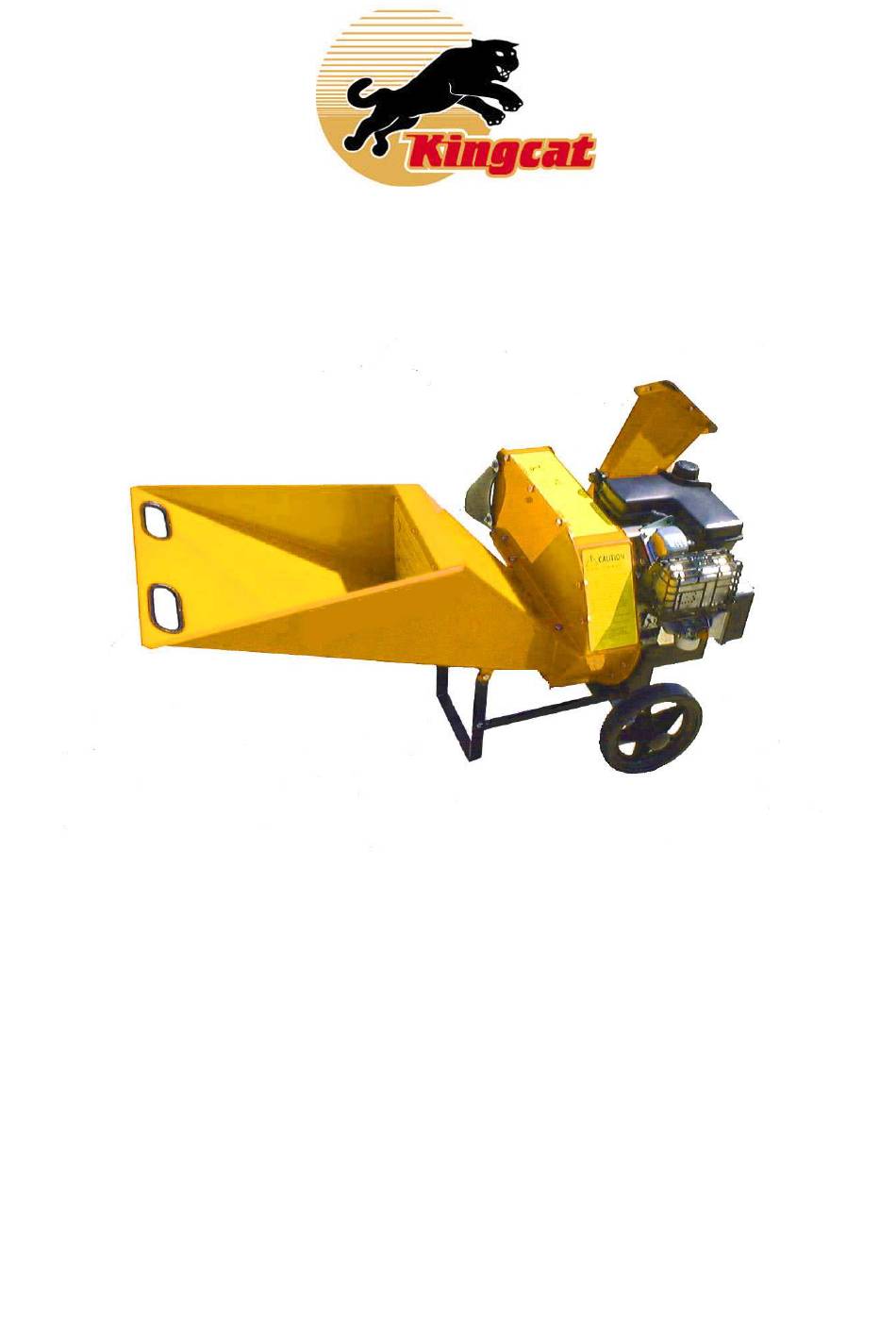

- Page 1 GARDEN RECYCLER Model KR7201G OWNER/OPERATORS MANUAL READ THIS MANUAL BEFORE OPERATING MACHINE THIS MACHINE IS CAPABLE OF INFLICTING SERIOUS INJURY IF OPERATED IMPROPERLY, READ WARNING & CAUTION LABELS...
-
Page 2: Warranty & Service
Cox Industries (Australia) Pty Ltd Warranty Policy NEW GARDEN RECYCLER Cox Industries (Australia) Pty Ltd warrants in respect of each new garden recycler sold, that for a period of one (1) year (Domestic use), or six (6) months (Commercial/Contractors/Hire use), to the original purchaser from the date of purchase. -
Page 3: Specifications
Specifications Model No. KK7201G KINGCAT Garden Recycler Product Code KGR7201 5.5 HP Briggs & Stratton Engine. Dimensions, Mass, Capacity KGR7201 Length 1285mm Width 775mm Height 730mm Dry Mass 61.6kg Fuel Tank Capacity 3.78 Litre Engine oil Capacity 0.60 Litre Engine Design & Performance... -
Page 4: Intended Use
WARNING RULES FOR SAFE OPERATION THIS MACHINE IS CAPABLE OF INFLICTING SERIOUS INJURY IF OPERATED IMPROPERLY—READ WARNINGS & CAUTION LABELS. TRAINING AND PREPARATION Before operating this garden recycler, read and understand this manual completely. Become familiar with it for your own safety. Failure to do so may cause serious injury. Do not allow anyone to operate your machine that has not read this manual. -
Page 5: Operation
Never operate your garden recycler while under the influence of alcohol, drugs, or medication. A clear mind is essential for safety. Never allow a person who is tired or otherwise not alert to operate this machine. SAFETY WEAR Never wear loose clothing or jewellery that can be caught by moving parts of your garden recycler and pull you into it. - Page 6 If there are shortages or damages, file a claim with your servicing Kingcat dealer immediately. The Parts listing/illustration to the rear of this manual will be helpful in the identification of components and hardware.
-
Page 7: Before Starting
WHEN ASSEMBLING YOUR KGR7201I GARDEN RECYCLER MAKE CERTAIN THE SPARK PLUG WIRE IS DISCONNECTED AND MOVED AWAY FROM THE SPARK PLUG BEFORE PROCEEDING TO ASSEMBLE THE UNIT. Set basic unit into a position where you can attach the stand struts to the wheel axles. Slide one strut all the way along each axle end until they rest against the chassis. -
Page 8: To Start Engine
NOTE: BE VERY CAREFUL NOT TO ALLOW DIRT TO ENTER THE ENGINE WHEN CHECKING OR ADDING OIL OR FUEL. CAUTION: To avoid engine problems, the fuel system should be empty before storage for 30 days or longer. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may result. -
Page 9: Maintenance
WARNING: THE GARDEN RECYCLER DISCHARGES MATERIALS WITH CONSIDERABLE VELOCITY, KEEP AWAY FROM THE AREA NEAR THE DISCHARGE COVER. WEAR SAFETY GLASSES AND GLOVES WHENEVER USING YOUR GARDEN RECYCLER. Bulky material, such as stalks or heavy branches (Anything over 15mm and under 63mm diameter) Must be fed into the chipper chute. WARNING: DO NOT DEPOSIT MATERIAL LARGER THAN 15mm DIAMETER IN THE HOPPER ASSEMBLY. -
Page 10: Engine Speed
HAMMERS The hammers, located inside the housing, may be reversed when they become dull. It is recommended that your Kingcat servicing dealer should perform this procedure. ENGINE SPEED Your engine speed has been factory set. Do not attempt to increase engine speed, or it may result in personal injury. - Page 11 Exploded View:- Enclosure 06/07/20 K7201G...
- Page 12 Screw, Hex 72017 Shield, Flexible, Hopper W041216 Washer, Flat NM6NT Nut, Hex, Nylon Insert, Thin 72018 Trim DEC119 Decal KINGCAT 72014 Stand, Leg SH1025M Screw, Hex NM10NT Nut, Hex, Nylon Insert, Thin SH0825M Screw, Hex DEC117 Decal, Warning/Danger, Housing Top...
- Page 13 Exploded View from Below:- Drive Parts List:- Drive Components Item Part No Description 7200601G Chassis 72026 Housing, Back & Top BCHSNM8X20 Bolt, Cup, Sq Neck NFM8 Nut, Hex, Flange Engine Briggs & Stratton WS050216 Washer, Lock, Spring STF0618 Screw, Hex BCHSNM8x25 Bolt, Cup, Sq Neck AM115...
-
Page 14: Exploded View
Exploded View:- Rotor Parts List:- Rotor Components Item Part No Description 7201300K Flywheel, Rotor 72002 Blade, Hammer 72034 Axle, Hammer 72035 Collar, Hammer BHSSM8X12 Screw, Button, Hex Soc 72005 Blade, Knife, Chipper 72024 Deflector, Chip CSSSM6x25 Screw, Csk, Hex Soc NM6NT Nut, Hex, Nylon Insert, Thin SH0616M... - Page 15 70 Landseer Street Acacia Ridge Qld 4110 P.O. Box 6266DC Acacia Ridge Q 4110 Australia PH 07 3323 2222 FAX 07 3344 6233 Web Site Address: www.coxmowers.com.au Email: sales@coxmowers.com.au 06/07/20 K7201G...
