Summary of Contents for CTP Systems RMA400

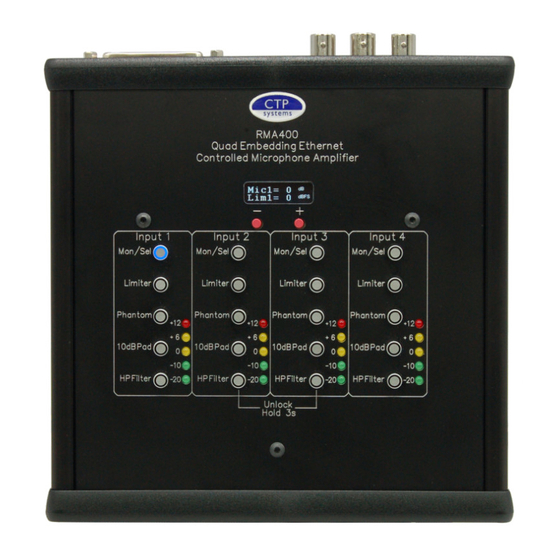

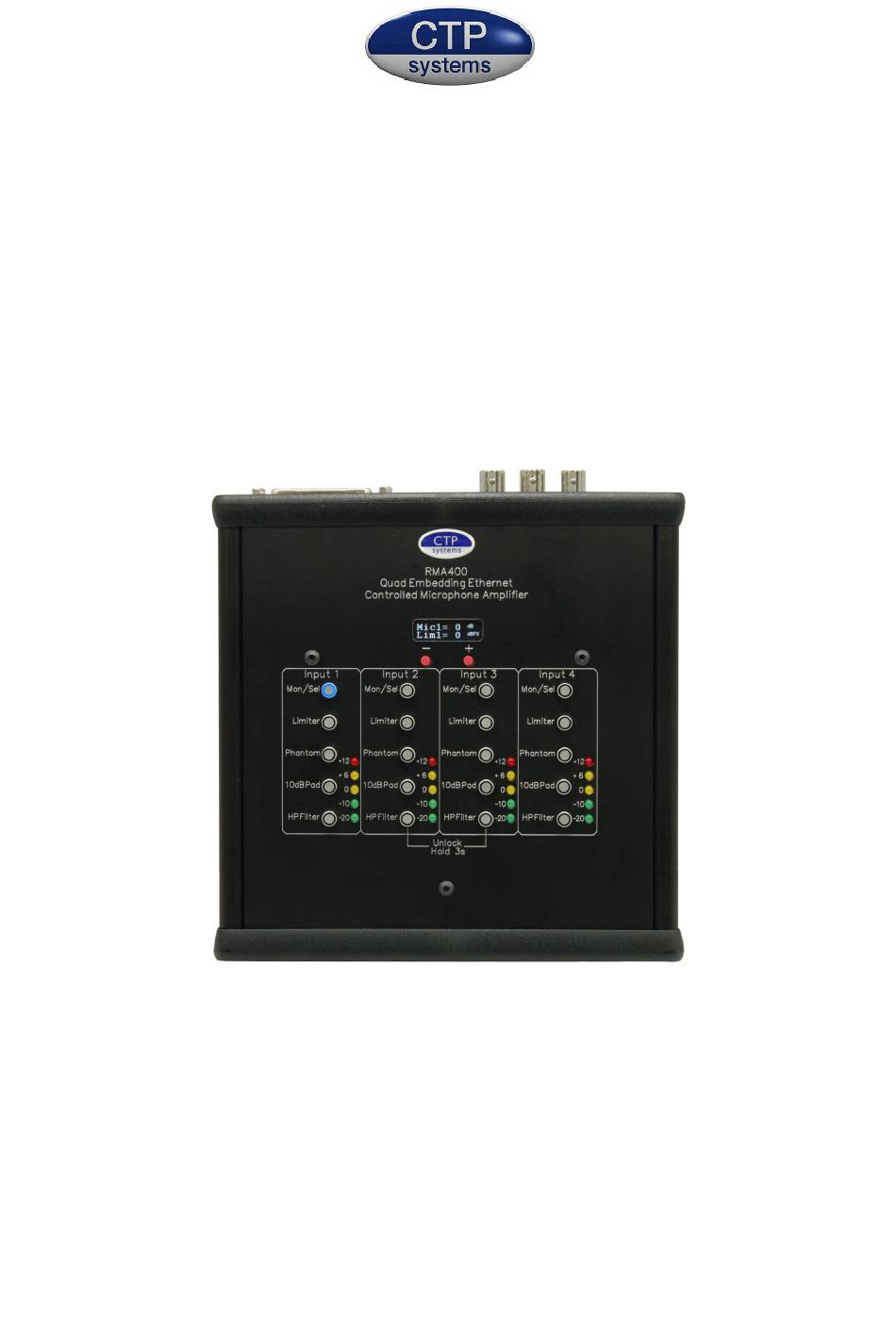

- Page 1 RMA400 Quad Embedding Ethernet Controlled Microphone Amplifier. CTP Systems...
- Page 2 Emissions: EN55032: 2015 Immunity: EN55035: 2017 WEEE CTP Systems are registered for Business to Business sales of WEEE in the UK. Our registration number is WEE/DF0509VR. This is why our product has a ridiculous picture of a dustbin on the back.
- Page 3 Overview The RMA400 contains four discreet microphone amplifiers with analogue, AES and HD-SDI embedded outputs. The unit may be controlled locally using the front panel controls and display or it may be controlled over ethernet. Gain range of the microphone amplifiers is 0-66dB in 1dB steps. The unit has built in limiters, switchable 48 volt phantom power, 10dB pads and high pass filters.
- Page 4 The software is now ‘live’, any changes made will be automatically downloaded to the RMA400. The displays and settings on the remote unit will change to reflect any changes made. If changes are also being made at the remote end it is wise to hit the ‘Load Remote Settings’...
- Page 5 IP address Normally the IP address will be found by interrogating the router. If this is not possible you can download this program which will tell you the IP address: https://www.lantronix.com/products/deviceinstaller/ Install the program, run it and it will auto search. If not just press search. If you want to fix the IP address double click on the name it found (XPort-NN) Then select web configuration, then press the right green arrow.
- Page 6 Analogue and AES connections. D25 female fitted to unit. Cold Screen Function Analogue output 1 Analogue output 2 Analogue output 3 Analogue output 4 AES outputs 1+2 AES outputs 3+4 These connections closely resemble the Tascam standard.
