Autonics SFDL-SDK Series Quick Start Manual

DRW190964AB

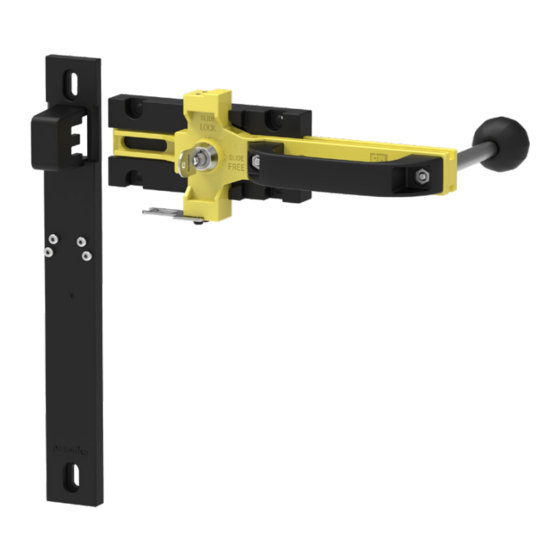

Safety Door Lock
Slide Key Unit
SFDL-SDK Series
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Main Features
• Using the lock out key, preventing the situation that a worker is locked in the working
area
• With the lock out function, preventing operation of machine when a worker is in the
working area
• Able to install on the 40mm × 40mm aluminum profile
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that may
cause serious injury or substantial economic loss. (e.g. nuclear power control,
medical equipment, ships, vehicles, railways, aircraft, combustion apparatus,
safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire
02. Do not use the unit in the place where flammable/explosive/corrosive/toxic gas,
high humidity, direct sunlight, radiant heat, vibration, impact, or salinity may be
present.
Failure to follow this instruction may result in explosion or fire.
03. Do not disassemble or modify the unit.
Failure to follow this instruction may result in personal injury due to loss of safety function.
04. Check installed status of the switch and slide key unit, operating status, and signs
of damage, modification, tampering on a regular basis.
Failure to follow this instruction may result in personal injury due to malfunction of the
product and safety function.
05. When keeping the lock out key by wearing on the wrists, keep cautious that the
spring strap is not be rolled into the machine.
Failure to follow this instruction may result in personal injury.
06. When operating the slide handle, be cautious to avoid catching hand.
Failure to follow this instruction may result in personal injury.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Install this product on the light door under 20kg.
Failure to follow this instruction may result in product damage.
04. Do not drop or impact the product.
Failure to follow this instruction may result in product damage or malfunction.
05. Do not close the door without the bolt slide.
Failure to follow this instruction may result in product damage.
06. Do not use the switch or cable with excessive force.
Failure to follow this instruction may result in product damage or malfunction.
07. Do not slide the product with excessive force.
Failure to follow this instruction may result in product damage or malfunction.
08. Do not use the lock out key with power over 1 N·m. To prevent product damage,
attach the enclosed warning label near the product.
Failure to follow this instruction may result in product damage or malfunction.
09. Press lightly towards the product and then turn the lock out key to operate.
Failure to follow this instruction may result in product damage or malfunction.
②
①
10. When the door is closed or the lock out key is put out, do not forcibly use the slide
handle.
Failure to follow this instruction may result in product damage or malfunction.
11. When the slide key unit is installed, do not use the spare operation key besides the
operation key on the slide key unit to operate switch.
Failure to follow this instruction may result in personal injury or fire due to loss of safety
function.
