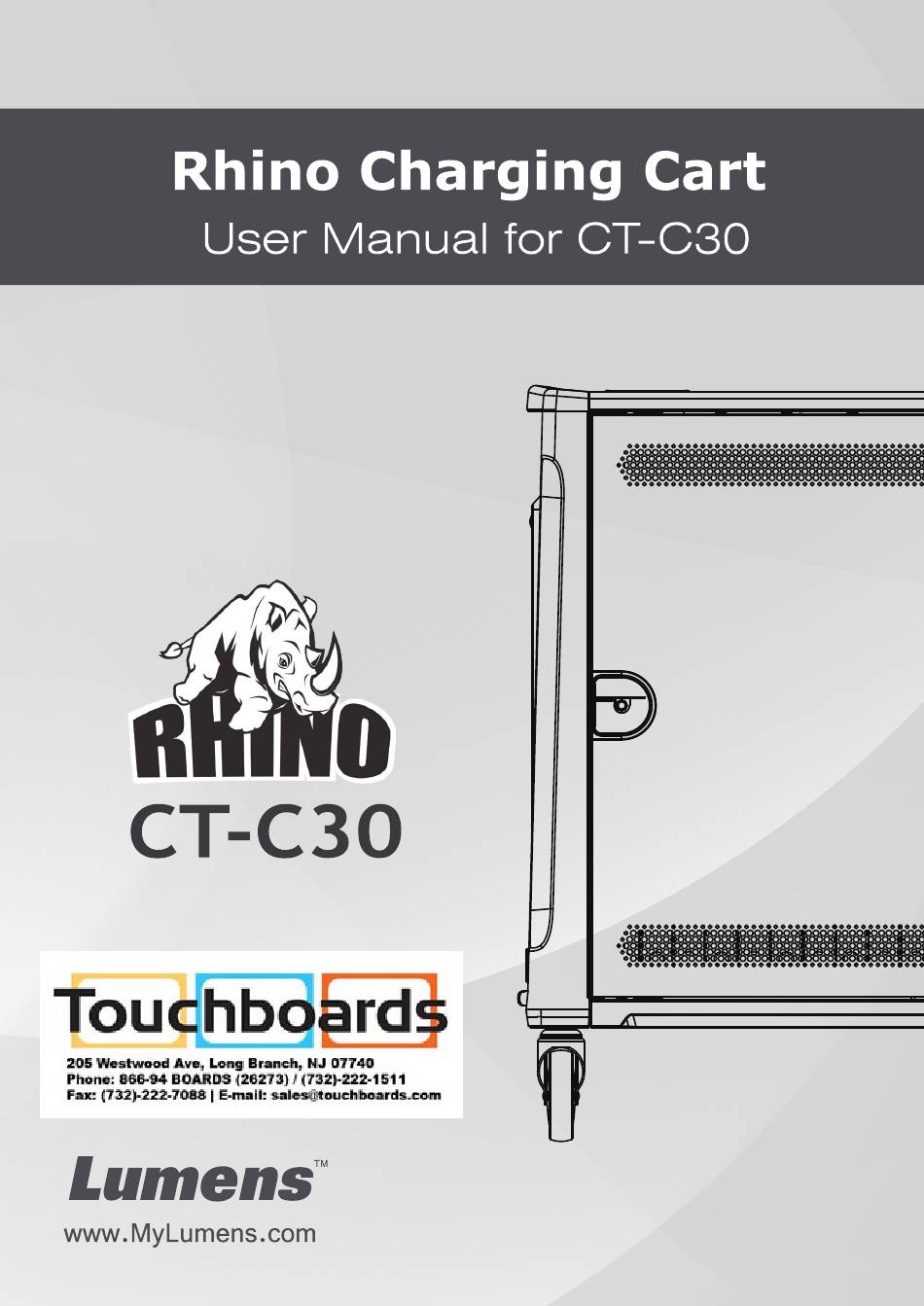

Summary of Contents for Lumens Rhino CT-C30
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Safety Instructions ............1 Chapter 2 Package Contents ............. 3 Chapter 3 Product Overview ............. 4 Dimension ....................4 Product Overview .................. 5 Chapter 4 Instruction for installation .......... -
Page 3: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions WARNING: This cart must only be used for its intended purpose in accordance with these operating instructions. Failure to observe the following notices can result in free, injury death by electric shock or equipment damage. Inspect power cables carefully before each use. ... - Page 4 FCC Warning This Document Camera has been tested and found to comply with the limits for a Class A computer device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus,"...
-
Page 5: Chapter 2 Package Contents
Chapter 2 Package Contents Power Cord User Manual Cable Tie User manual... -
Page 6: Chapter 3 Product Overview
Chapter 3 Product Overview 3.1 Dimension Power Input AC 100V-120V,50/60Hz, 12A Power Output AC 100V-120V,50/60Hz, 11A Size (W x D x H) 711.8x646.9x1035.6mm... -
Page 7: Product Overview
3.2 Product Overview Front View A safety lock can be mounted Door handle switch Side View The 3 external power outlets are for use by other equipment, but not for power strip. External AC breaker Main power switch of charging cart Power input Power cable winder... - Page 8 Back View U-type lock Door handle switch Front View of Inside One Touch Charge Storage compartments Slot dimension：15.2" x 10" x 1.3" Quantity of storage compartments: 11 compartments each layer may accommodate up to 33 laptops or tablet PCs...
- Page 9 Back View of Inside Storage compartments. You may use a cable tie to fix the cables not in use AC outlet Overload protection...
-
Page 10: Chapter 4 Instruction For Installation
Chapter 4 Instruction for installation 4.1 Park the Charging Cart Prior to starting the equipment installation and connecting the power cord, please lock the charging cart to avoid danger caused by sliding. Press down the switch “ON” on the anti-winding cover to park the cart. ▼Lock the wheel 4.2 Connect the Power Cord Connect the power cord to the power input on the right side. - Page 11 Place the laptop/tablet PC into the storage compartment and connect the power cord to the laptop/tablet PC. Organize the cables Organize the cables to be stored in the back of the charging cart at the location corresponding to the storage compartment used. ▼Put the cable tie through the adjacent 2 holes.
-
Page 12: Position The Charging Cart
4.4 Position the Charging Cart After the equipment installation is completed, release the locked wheels. Move the charging cart to the selected location, and lock the wheels again. Press down the switch “OFF” on the anti-winding cover to release the lock. ▼Release the lock ▼Lock the wheel... -
Page 13: Use The U-Type Lock
4.5 Use the U-type Lock The cart has U-type locks for retaining the cart fixedly and the equipment on the panel separately. Chains and anti-theft security locks can be purchased if needed. Side View U-type lock Back View U-type lock... -
Page 14: Chapter 5 Start Using
Chapter 5 Start Using Place the laptop into the storage compartment and connect with power cord. Turn on the main power. Press the Quick Charge button to start the preset charging schedule. Preset schedule is 4-hour charging time per layer and a total of 12 hours to complete the charging. -
Page 15: Chapter 7 How To Increase The Storage Space
Chapter 7 How to Increase the Storage Space If the storage compartment is not wide enough, remove some partitions to increase the width. 7.1 Remove the Partition Reach below the layer board, and push the tenon of the partition upward. Then gently pull the partition up to remove it from the cart... -
Page 16: Chapter 8 Troubleshooting
Chapter 8 Troubleshooting Problems Solutions Abnormal AC IN / AC OUT are installed with the overload protection and the external AC breaker respectively to voltage caused automatically turn the power off to protect the machine outage of when the flow of electrical current is abnormal. Press charging cart the switch again to restart the power.
