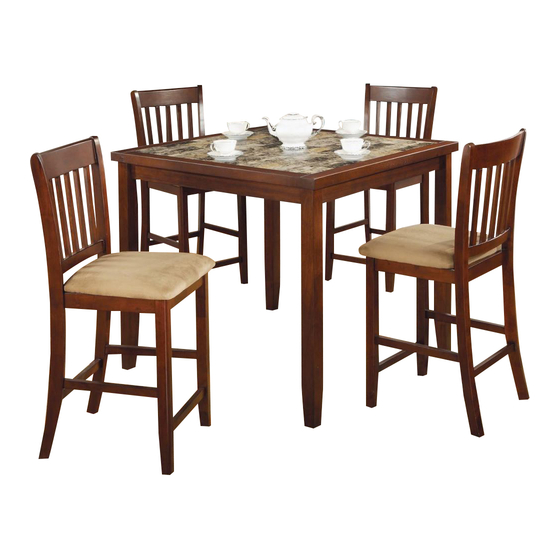

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 150154 5PCS Counter Height Set REVISION 0 :07/15/2010 REVISION 1 :12/19/2011 REVISION 2 :07/04/2019 COASTERFURNITURE.COM PAGE 1 OF 5...
-
Page 2: Assembly Time
5 MINUTES ASSEMBLY TIME TABLE TOP TABLE LEG 4PCS CHAIR BACK 4PCS CUSHION SEAT 4PCS WITH FRAME 8PCS FRONT LEG LEFT SIDE STRETCHER 4PCS RIGHT SIDE STRETCHER 4PCS FRONT STRETCHER 4PCS PAGE 2 OF 5... - Page 3 BOLT 3 8PCS (M8 x 60mm - RBW) BIG LOCK WASHER 8PCS (M8 - RBW) BIG FLAT WASHER 8PCS (M8 - RBW) BIG ALLEN WRENCH (M5 - BLK) BOLT 4 16PCS (M6 x 85mm - RBW) BOLT 2 16PCS (M6 x 60mm - RBW) BOLT 1 4PCS (M6 x 35mm - RBW)
- Page 4 STEP 1 STEP 2 PAGE 4 OF 5...
- Page 5 STEP 3 STEP 4 STEP 5 STEP 6 COMPLETE COMPLETE PAGE 5 OF 5...
