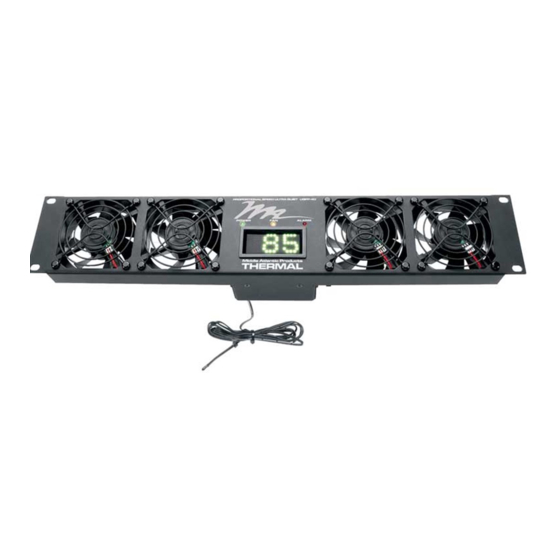

Instruction Sheet
UQFP SERIES
Ultra Quiet Fan Panels
(220V Models)
THANK YOU
Thank you for purchasing the UQFP Series Ultra Quiet Fan Panel. Please read these instructions
thoroughly before installing this product.
PRODUCT FEATURES
- Reliable cooling with minimal noise
- Local and remote status notification
- On-board processor controls fan speed
proportional to enclosure temperature
I-00467
Rev -
Advertisement
Table of Contents
Related Manuals for Middle Atlantic Products UQFP Series
Summary of Contents for Middle Atlantic Products UQFP Series
- Page 1 UQFP SERIES Ultra Quiet Fan Panels (220V Models) THANK YOU Thank you for purchasing the UQFP Series Ultra Quiet Fan Panel. Please read these instructions thoroughly before installing this product. PRODUCT FEATURES - Reliable cooling with minimal noise - Local and remote status notification...
- Page 2 SPECIFICATIONS UQFP-2 & UQFP-2D/IUQFP-2 & IUQFP-2D Current Draw: 270 mA @ 5V DC (UQFP-2/IUQFP-2) Airflow: 50 CFM @ Full Speed 310 mA @ 5V DC (UQFP-2D/IUQFP-2D) RPM: 1900 @ Full Speed Noise: 24 dB @ Full Speed UQFP-4 & UQFP-4D/IUQFP-4 & IUQFP-4D Current Draw: 510 mA @ 5V DC (UQFP-4/IUQFP-4) Airflow:...
- Page 3 FUNCTIONS Models UQFP-2 & UQFP-4/IUQFP-2 & IUQFP-4 (UQFP-4 Model Shown) FAN (YELLOW) POWER (GREEN) OVERTEMP (RED) FRONT VIEW 5V DC INPUT JACK OVERTEMP ALARM OUTPUT DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. OVER 5VDC TEMP ALARM (N.O.) TEMPERATURE PROBE REAR VIEW POWER (GREEN): This LED indicates that the unit is receiving power.
- Page 4 Models UQFP-2D & UQFP-4D/IUQFP-2D & IUQFP-4D (UQFP-4D Model Shown) FAN (YELLOW) POWER (GREEN) ALARM (RED) DISPLAY FRONT VIEW POWER (GREEN): This indicates that the unit is receiving power. FAN (YELLOW): When rack temperature reaches 81 F (27 C), this LED will begin to flash indicating that the fans have turned on.
- Page 5 OVERTEMP ALARM OUTPUT FAN FAULT ALARM OUTPUT 5V DC INPUT JACK DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. OVER 5VDC FAULT TEMP ALARM ALARM (N.O.) (N.O.) TEMPERATURE PROBE REAR VIEW ALARM SET POINT BUTTON CONTROL SETTINGS PUSH Press once to view the current overtemp alarm setting.
- Page 6 INSTALLATION UQFP-2D (left) & UQFP-4D (right) Shown. C O N T R O E T T I N G P re s s o o v e n c e to v rt e m ie w E a c la rm th e d d it...
- Page 7 THERMAL MANAGEMENT GUIDELINES - Mount fan panel in highest available location of enclosure. - Use vent blockers to cover any vent at the top of side panels. - Do not place vent panels within six rackspaces below fan panel. Cover any of these spaces. - If heat producing equipment is in the middle of the rack, use a 3 space vent panel at the bottom - Use a 2 space vent panel if heat producing equipment is at the bottom of the enclosure.
- Page 8 WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the UQFP Series Ultra Quiet Fan Panels to be free from defects in material or workmanship under normal use and conditions for a period of three (3) years from date of shipment by the Company.
