Installation Procedures:
1.
Make sure the antenna module is plugged into the main body. After that, connect the wire.
2.
Put the main body inside the gang box as shown in Figure 1.
Please note that the arrow symbol should be pointing upward.
3.
Install the front plate onto the main body. To install the front plate correctly, please attach the top of the front plate first
(refer to Figure 2). Then proceed to push the bottom into the main body (refer to Figure 3).

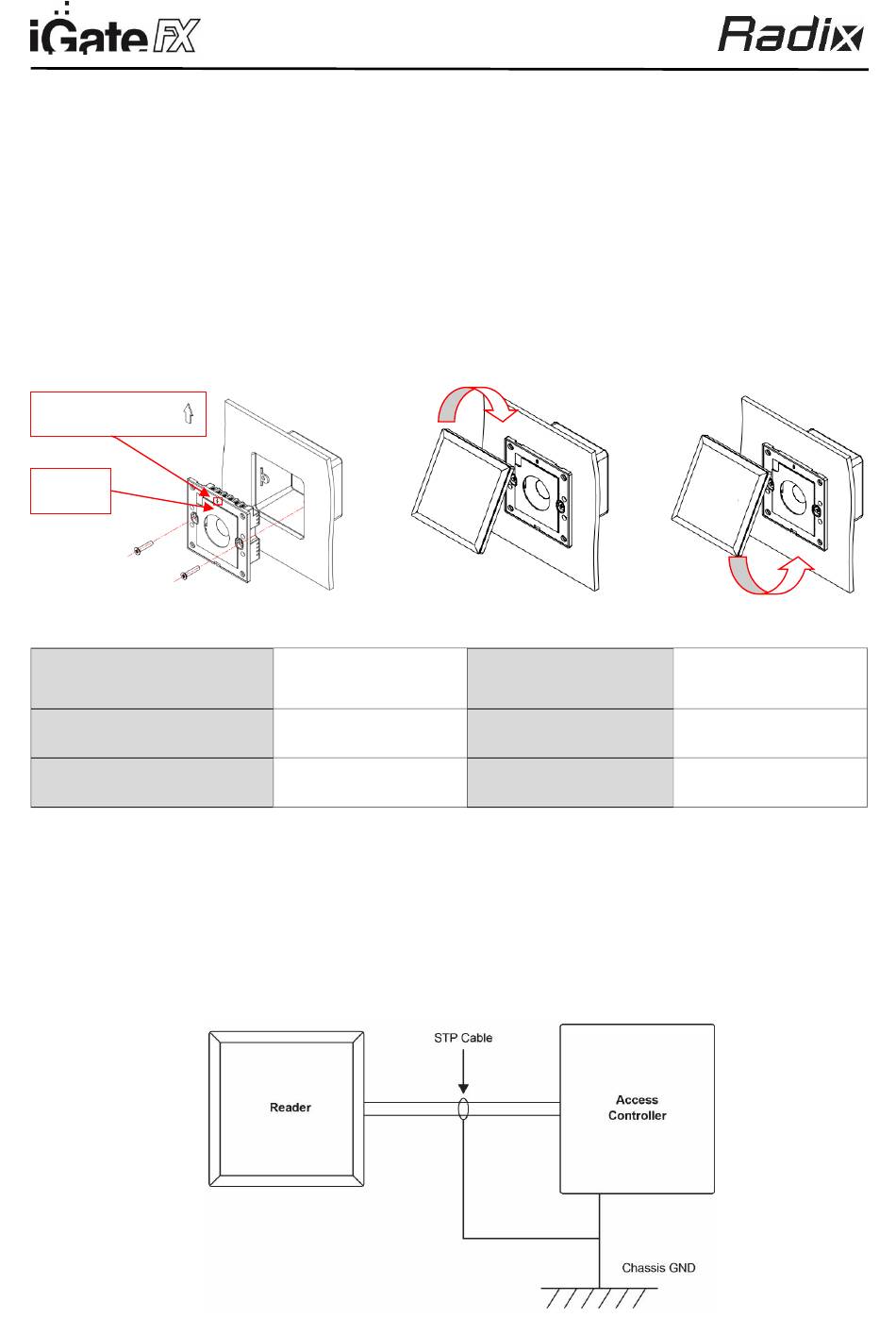

Figure 1
Arrow symbol upward
Antenna
Specification:
Voltage Input (located at
the bottom of the reader)
Operating Current
Operating Temperature
Recommendation:
1.
Use 12V DC Regulated Linear Power Supply.
2.
Use 6 Core 22AWG Shielded Twisted-Pair Cable.
3.
Connect the Drain Wire to the ground of system side (as shown in Figure 4).
Figure 4
Reader Installation Manual
Figure 2
DC10V ~ 15V
120mA (max.)
-10ºC ~ 60 ºC
Standard Read Range
Max. Cable Length
Format of Number Pad
Figure 3
> 5cm
150m
4 bits burst (default)
