Connect the RDT-A7.0 to the OBC

The RDT-A7.0 and OBC will need to be connected via cable and wifi.

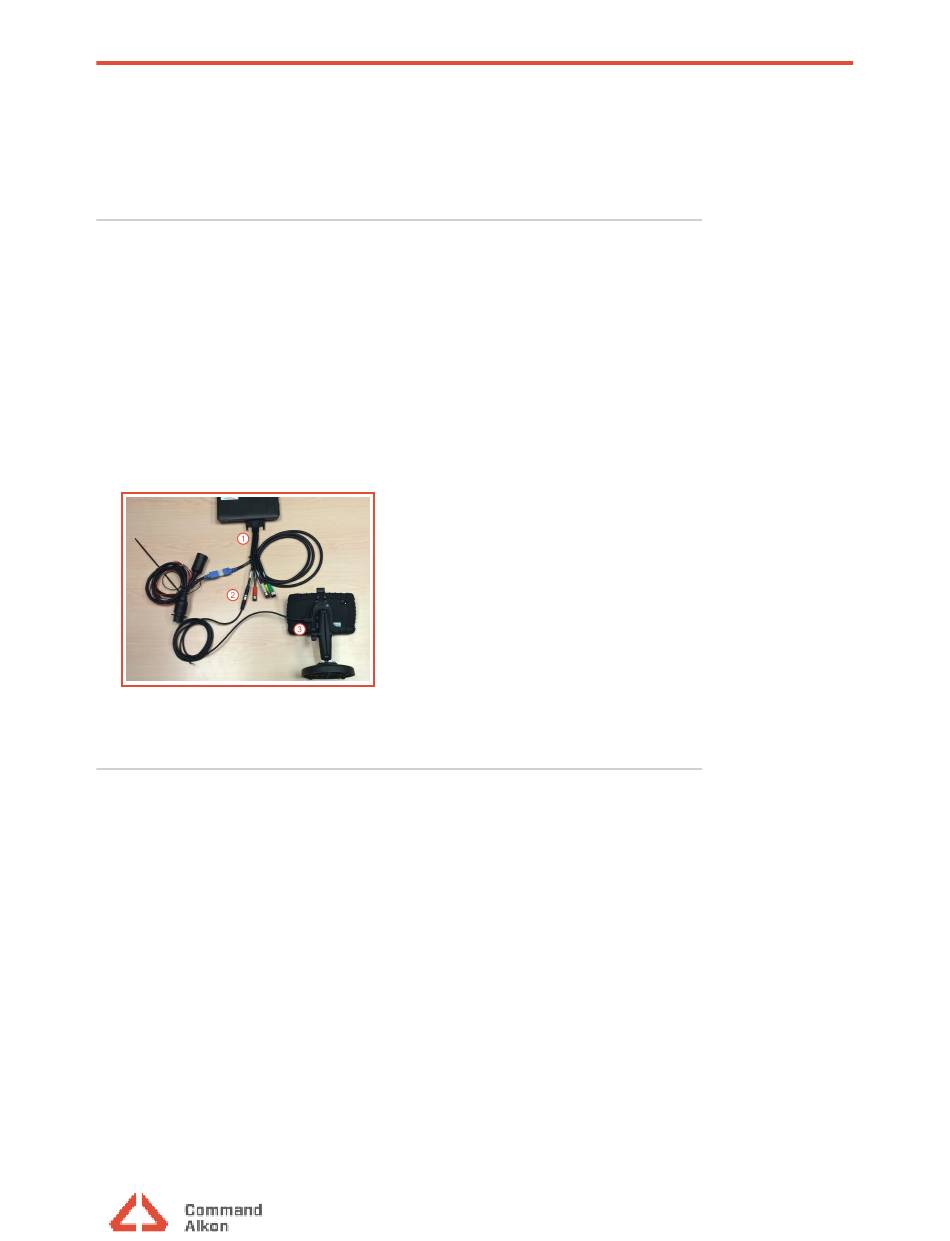

To connect the RDT-A7.0 to the OBC
1. Ensure the 44 D-Sub High Density Connector (HD-44) that is part of the
OBCPIGOCTO is connected to the OBC device.
2. Attach the RDT.PWR cable on one end to the OBCPIGOCTO cable via
the black connector.
3. Connect the other end of the RDT.PWR cable to the back of the RDT-
A7.0.
Connecting RDT-A7.0 to the OBCPIGOCTO cable will allow the RDT-A7.0 to
draw power from the vehicle.
