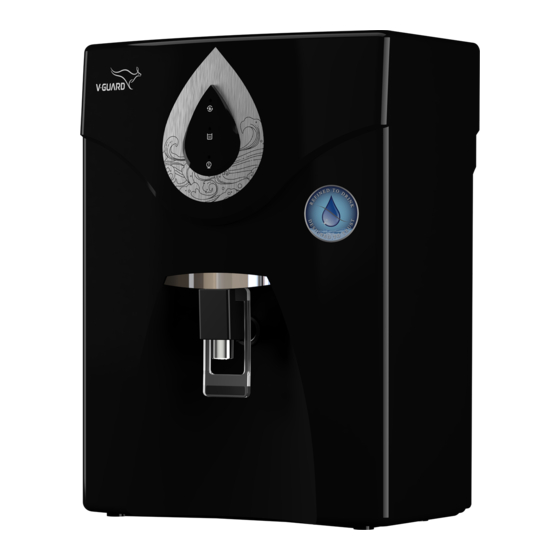

Summary of Contents for VGuard ZENORA Series

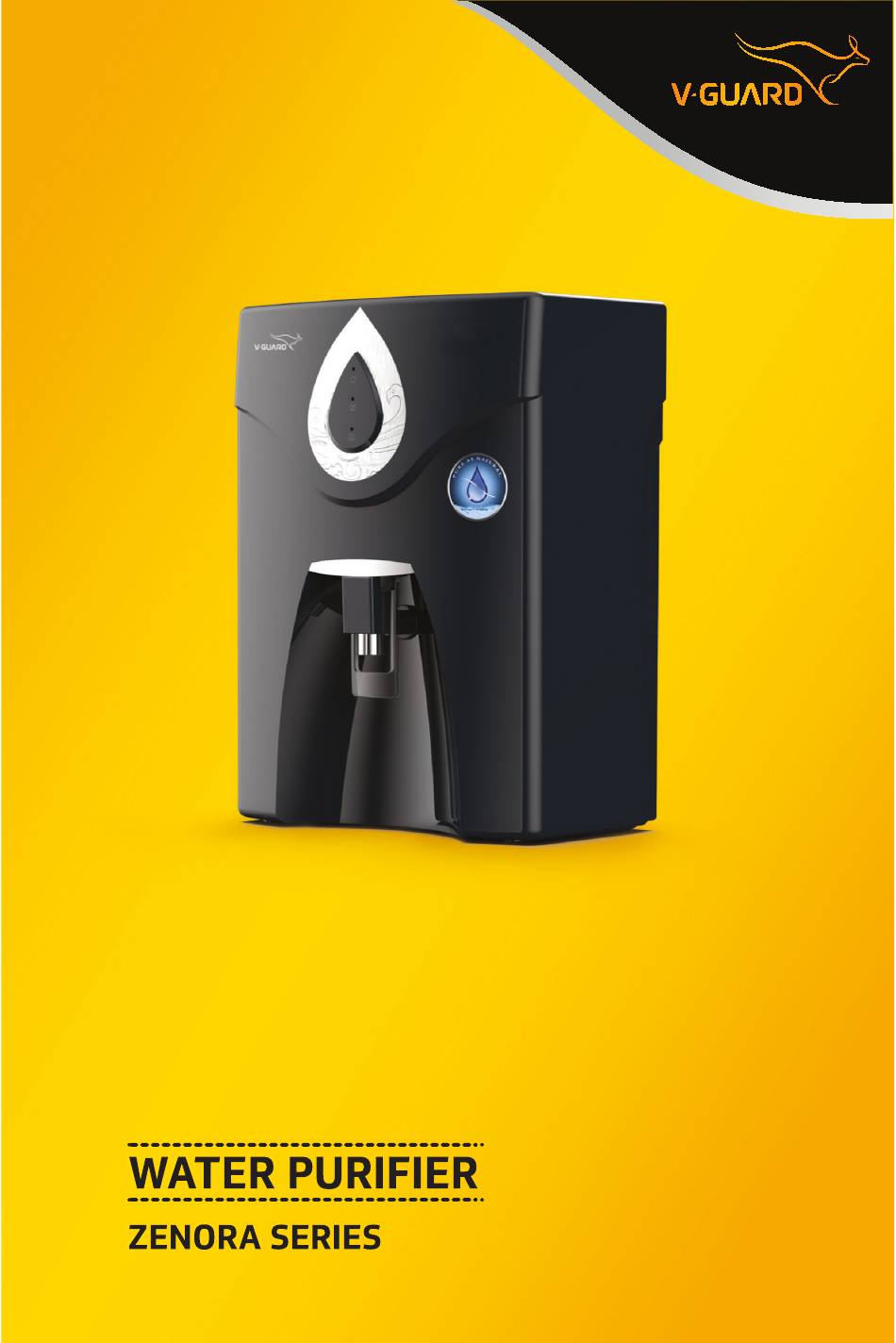

- Page 1 OPERATING MANUAL & WARRANTY GUIDE...
- Page 3 To Avail Your Free Installation OR Schedule Maintenance Service Call: 1800 103 1300 (TOLL FREE) | 1860 180 3000 (TOLL) Email: waterpurifier@vguard.in Website: www.vguard.in OPERATING & INSTALLATION MANUAL...
-
Page 4: Table Of Contents
ZENORA WATER PURIFIER CONTENTS SIDE THE BO KNOW YOUR PURIFIER TECHNICAL SPECIFICATION PURIFICATION PROCESS INSTALLATION PRE-REQUISITES INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS CLEANING AND MAINTENANCE INSTRUCTIONS SAFETY INSTRUCTION TROUBLESHOOTING FAQs WARRANTY TERMS AND CONDITIONS OPERATING & INSTALLATION MANUAL... -
Page 5: Inside The Box
ZENORA WATER PURIFIER INSIDE THE BOX External Pre-Filter Water Purifier User Manual Assembly Mounting Screws for Mounting Screws Integrated External Pre-Filter Assembly for Purifier Unit Diverter Valve SMPS Adapter 3/8" White Tube 1/4" White Tube Wall mounting sticker for Purifier Unit Sealed RO Membrane OPERATING &... -
Page 6: Know Your Purifier
ZENORA WATER PURIFIER KNOW YOUR PURIFIER 1(a) 1(b) LED DISPLA Y INSTRUCTION WATER INLET POINT BLUE LIGHT - PURIFICATION ON POWER CORD BLUE LIGHT - TANK FULL RED LIGHT - NO WATER/LOW WATER TAP LEVER PRESSURE/SERVICE MOUNTING HOLE WASTE WATER OUTLET POINT PRE CARBON STORAGE TANK SEDIMENT FILTER... -
Page 7: Technical Specification
ZENORA WATER PURIFIER TECHNICAL SPECIFICATION ZENORA RO + UF + MB ZENORA RO + UV + MB Model Purification RO + UF + RO + UV + Type Mineral Balancer Mineral Balancer General Product Details 345mm x 205 mm x 450 mm (WxDxH) Dimension Black and White Colour... - Page 8 ZENORA WATER PURIFIER *Disclaimer Flow rate, TDS Rejection and TDS Recovery is based on standard test condition which are as follows: TDS - 1000ppm of NaCl Total Hardness - 500ppm Input Pressure - 15psi Temp - 25 Degree Celsius. Turbidity < 1NTU Iron <...
-
Page 9: Purification Process
ZENORA WATER PURIFIER ZENORA RO + UF + MB TANK 7Ltr. CAPACITY SOLENOID REJECTED VALVE WATER PUMP Stages Filters Features Stage 1 External Pre-Filter Removes large particulates, suspended solids, hair and all other similar impurities. Improves the life of the entire purification unit with its high dirt-holding capacity. - Page 10 ZENORA WATER PURIFIER ZENORA RO + UV+ MB TANK 7Ltr. CAPACITY SOLENOID REJECTED VALVE WATER PUMP Stages Filters Features Stage 1 External Pre-Filter Removes large particulates, suspended solids, hair and all other similar impurities. Improves the life of the entire purification unit with its high dirt-holding capacity.
-
Page 11: Installation Pre-Requisites
ZENORA WATER PURIFIER INSTALLATION PRE-REQUISITES Install the purifier in an indoor space with enough ventilation. Avoid installing the purifier in a place which is exposed to direct sunlight, excessive moisture, dust or rain. The installation place should be free from ants/insects/other pests, etc. Keep a distance of over 10cm between the body of the purifier and the adjacent walls for smooth ventilation. -
Page 12: Operating Instructions
ZENORA WATER PURIFIER To mount the purifier, please drill the holes with the help of a wall mounting sticker supplied with the unit. The sticker is usually pasted at height of 3.5 to 4 from the ground but you are free to adjust the height as per your comfort. Carefully hang the purifier unit on the wall. -
Page 13: Cleaning And Maintenance Instructions
ZENORA WATER PURIFIER CLEANING AND MAINTENANCE INSTRUCTIONS To ensure water purifier delivers optimum performance, a routine maintenance must be performed. The frequency of maintenance will greatly depend upon the raw water quality and consumption quantity. Maintain good hygiene in and around the area of your water purifier. Clean the water outlet periodically using a so... -
Page 14: Safety Instruction
ZENORA WATER PURIFIER SAFETY INSTRUCTION Make sure the rating of power supply connection matches with that of the rating label . Do not plug or unplug the power cord with wet hands. Ensure that the plug isn’t wet while plugging in or plugging out to avoid risks such as electrical shock or fire. -
Page 15: Troubleshooting
ZENORA WATER PURIFIER TROUBLESHOOTING Problems Solution Self Check Have you le the purifier The taste of water may unused for a long period change as it ages due to of time? bacterial multiplication. Drain the water in the storage tank and refill it. Water tastes strange Has it been a long time If an expired filter is used,... -
Page 16: Faqs
ZENORA WATER PURIFIER Problems Self Check Did water bubbles form? Water bubbles may form in the draining process. It is safe for you to drink. If fine particles exist continuously Fine particles occur aer you receive water from in the purified water the water purifier and several minutes have passed, cut off... - Page 17 ZENORA WATER PURIFIER Can I service on my own? It is not recommended to open your water purifier and service it on your own. Call V-Guard customer support centre for any issues related to service & opening the machine. How long can the water in the water purifier be used for drinking? You can use stored water for up to 48 hrs.
-
Page 18: Warranty Terms And Conditions
To schedule your installation please call us on: 1800 103 1300 (TOLL FREE) | +91 484 4335000 | 1860 180 3000 (TOLL) or E-mail us at: waterpurifier@vguard.in What This Warranty Covers Repair or replacement of any part of the Water Purifier found defective within 12 months from the date of Installation (“Warranty Period”) with a... - Page 19 ZENORA WATER PURIFIER Transportation cost in case the customer is moving the product to another location. Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts other than those approved or specified by V-Guard. Warranty Will Be Null And Void If: The user is unable to furnish the proof of purchase i.e.
- Page 20 ZENORA WATER PURIFIER In case the replacement of the entire unit is made, (subject to the sole discretion of V-Guard), the same model shall be provided as a replacement; if such model has been phased out, the equivalent model as determined by V-Guard shall be provided as a replacement.
- Page 21 ZENORA WATER PURIFIER Note: Warranty will be void if the product is not used as per the suggested application. The warranty will not be applicable if product failure is caused by certain unusual conditions such as Water Logging, Misuse, Transit Damage during purchase, abnormal voltage supply, lightning, acts of God, or while in transit to or from the service centre.
- Page 24 Serial Number: Inspected by......V-Guard Customer Care Website: www.vguard.in V-Guard Industries Ltd. E-mail: waterpurifier@vguard.in Registered Office: Call Centre 42/962, Vennala High School Road, 1800 103 1300 (Toll Free) Vennala, Kochi- 682028, Kerala, India. 1860 180 3000 (Toll) www.vguard.in CIN: L31200KL1996PLC010010...
