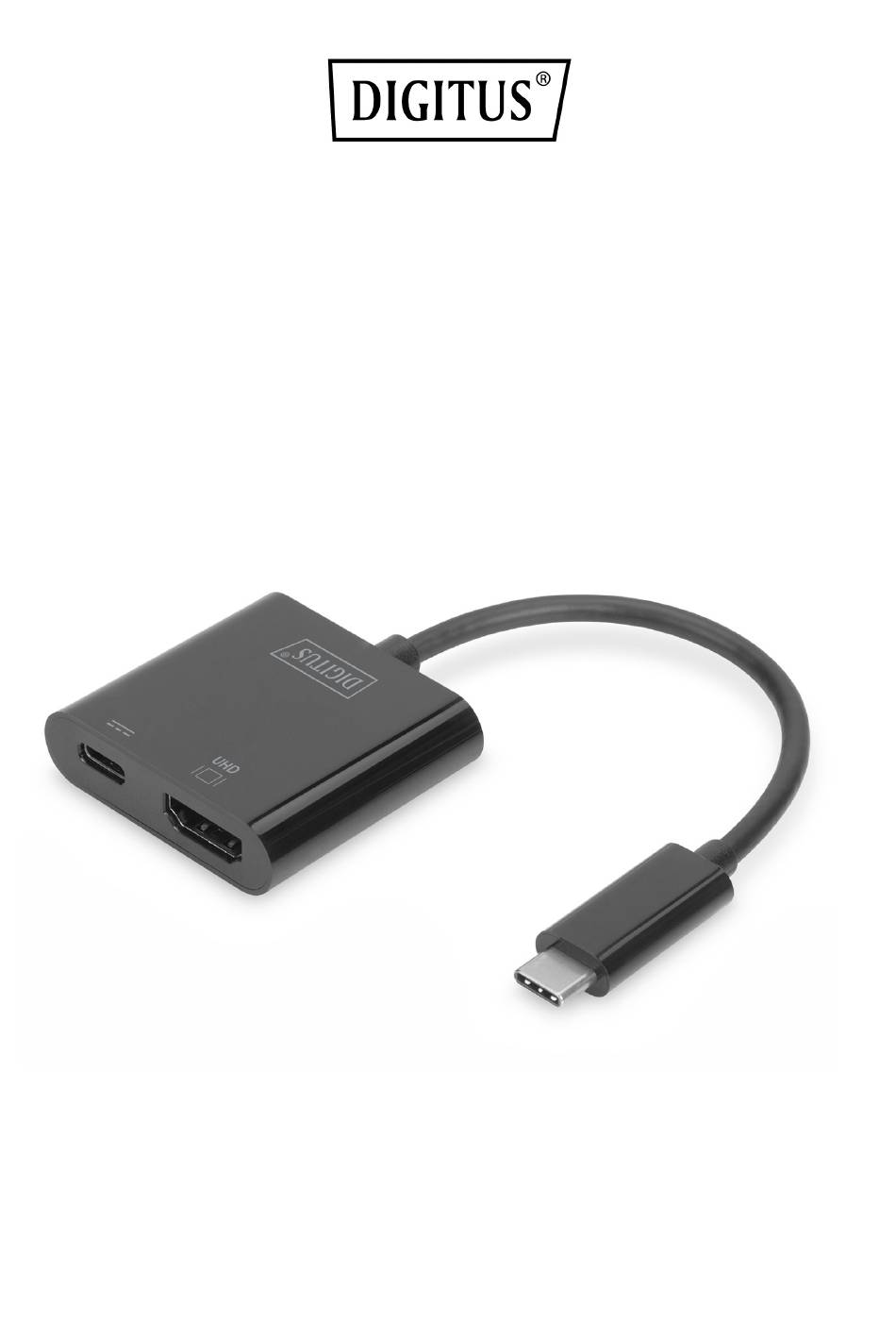

- Page 1 USB Type-C™ 4K HDMI graphics adapter + USB-C™ (PD) User Manual DA-70856...

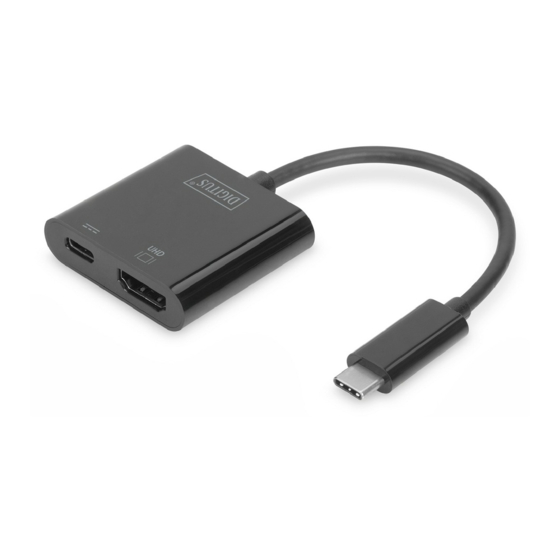

- Page 2 1.0 INTRODUCTION The USB Type-C™ 4K HDMI graphics adapter allows you to connect a TV set, monitor or projector to a USB-C™ device. The highest possible resolution is UHD (4K/60Hz). In addition, it has another USB-C™ port with Power Delivery (PD) 2.0 functionality to power your mobile device while using the adapter.
- Page 3 3.0 SPECIFICATIONS Input/Output Connector Input USB-C Male x1 USB-C Femalex1 for charging Output HDMI Female x1 Resolutions Resolutions UP to 4kx2k@60HZ Physical Weight 20.4g Size(L-W-H) 42x40x12 (mm) Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 85 % RH (no condensation) Storage Temperature -10°C to +70°C Storage Humidity...
- Page 4 6.0 CONNECTION DIAGRAM Type-C™ Charging HDMI Cable Port USB charge, DA-10195 HDMI Monitor Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
