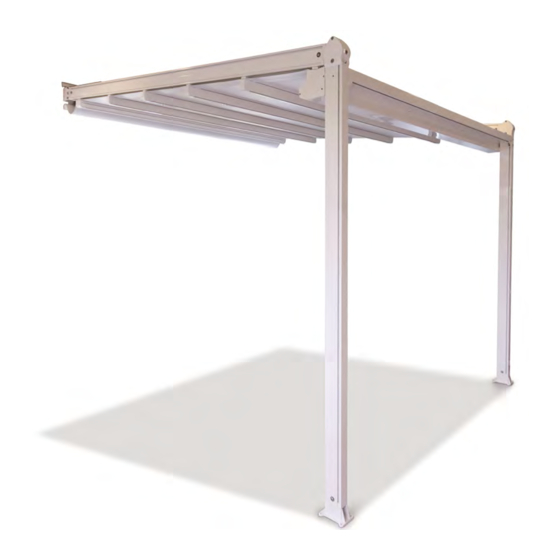

Summary of Contents for KE Gennius A1
- Page 1 A1 - T1 Manuale di uso e manutenzione Use and maintenance manual Manuel d’utilisation et d’entretien Bedienungs- und Wartungshandbuch Manual de uso y mantenimiento...
-
Page 2: Table Of Contents
A1-T1 Use and maintenance manual Contents 1. INTRODUCTION ......................20 Symbols used in this manual ......................20 2. SAFETY ...........................20 General Safety Information ........................ 20 3. DESCRIPTION OF THE STRUCTURE ................21 Components ............................21 Intended Use and Installation Location ....................22 4. -
Page 3: Introduction
A1-T1 Use and maintenance manual INTRODUCTION This manual, together with the others supplied alongside it, is an integral part of the structure and has been written for its user; it is key to the correct use and maintenance of the product. The pages and content contained within this manual may not be removed, rewritten or modified in any way. -
Page 4: Description Of The Structure
A1-T1 Use and maintenance manual • All maintenance and cleaning operations must be performed with the electrical supply disconnected. • Installation and first use, adjustment and extraordinary maintenance must only be performed by technicians trained and specialised for those tasks. Contact Technical Support. •... -
Page 5: Intended Use And Installation Location
A1-T1 Use and maintenance manual 3.2 Intended Use and Installation Location The structure is designed to protect against solar radiation and possibly to limit reverberation in the space below it. The product, once installed, is intended only to perform raising or lowering of the awning fabric to reach the open and closed positions, as well as intermediate positions if required. -
Page 6: Technical Data
A1-T1 Use and maintenance manual TECHNICAL DATA Max. dimensions and weight Width (mm) - single module 4500 (5000) 4500 (5000) 9000 9000 13000 13000 Projection (mm) 6500 (5000) 8000 (5000) 6500 8000 6500 8000 Approx. weight (kg/m ) - single module 10/15 8/12 Safety performance per EN13561... -
Page 7: Technical Label
A1-T1 Use and maintenance manual WIDTH WIDTH 1000 1050 1100 1150 1200 1250 1300 4.2 Technical Label The “technical label” present on the inside cover of this manual specifies the year in which the CE marking, manufacturer’s data and specific product data was applied. rev.01 17-02-16... -
Page 8: Transport And Installation
A1-T1 Use and maintenance manual TRANSPORT AND INSTALLATION 5.1 Transport Transport and shipping are the responsibility of the reseller and/or the manufacturer, who shall transport the product using packaging suitable to protect it up until delivery to the end customer. Damage to the product sustained during removal of the structure and subsequent handling and/or transport, performed after the initial installation, is not covered by warranty. -
Page 9: Maintenance
A1-T1 Use and maintenance manual MAINTENANCE • All maintenance and cleaning operations must be performed with the electrical supply disconnected. • Before operating the structure, read Chapter 2 “Safety” thoroughly. • Installation and first use, adjustment and extraordinary maintenance must only be performed by technicians trained and specialised for those tasks. -
Page 10: Scheduled Maintenance
A1-T1 Use and maintenance manual 7.3 Scheduled Maintenance • All maintenance operations must be performed with the electrical supply disconnected. • Qualified personnel are not required for ordinary maintenance operations. The operations described below will keep the product in good condition if they are performed according to the indicated frequencies and timeframes. -
Page 11: Optional Accessories
Installation is described in the “Installer Manual”. • The protection systems may be ineffective in particular climatic conditions. • THE PERFORMANCE DECLARATIONS ARE AVAILABLE ON THE KE SITE WWW. KEITALY.IT. rev.01 17-02-16... - Page 12 KE PROTEZIONI SOLARI srl GENNIUS FRANCE sas Sede Quartier des 4 Chemins Via Calnova, 160/a Zac Ducournau 30020 Noventa di Piave (VE) - Italia 83340 Flassans Sur Issole T + 39 0421 307000 r.a. Tel 04 94 78 17 73 - Fax 04 94 04 79 32 F +39 0421 658840 www.keitaly.it...
