Summary of Contents for Optimas SV 200 E

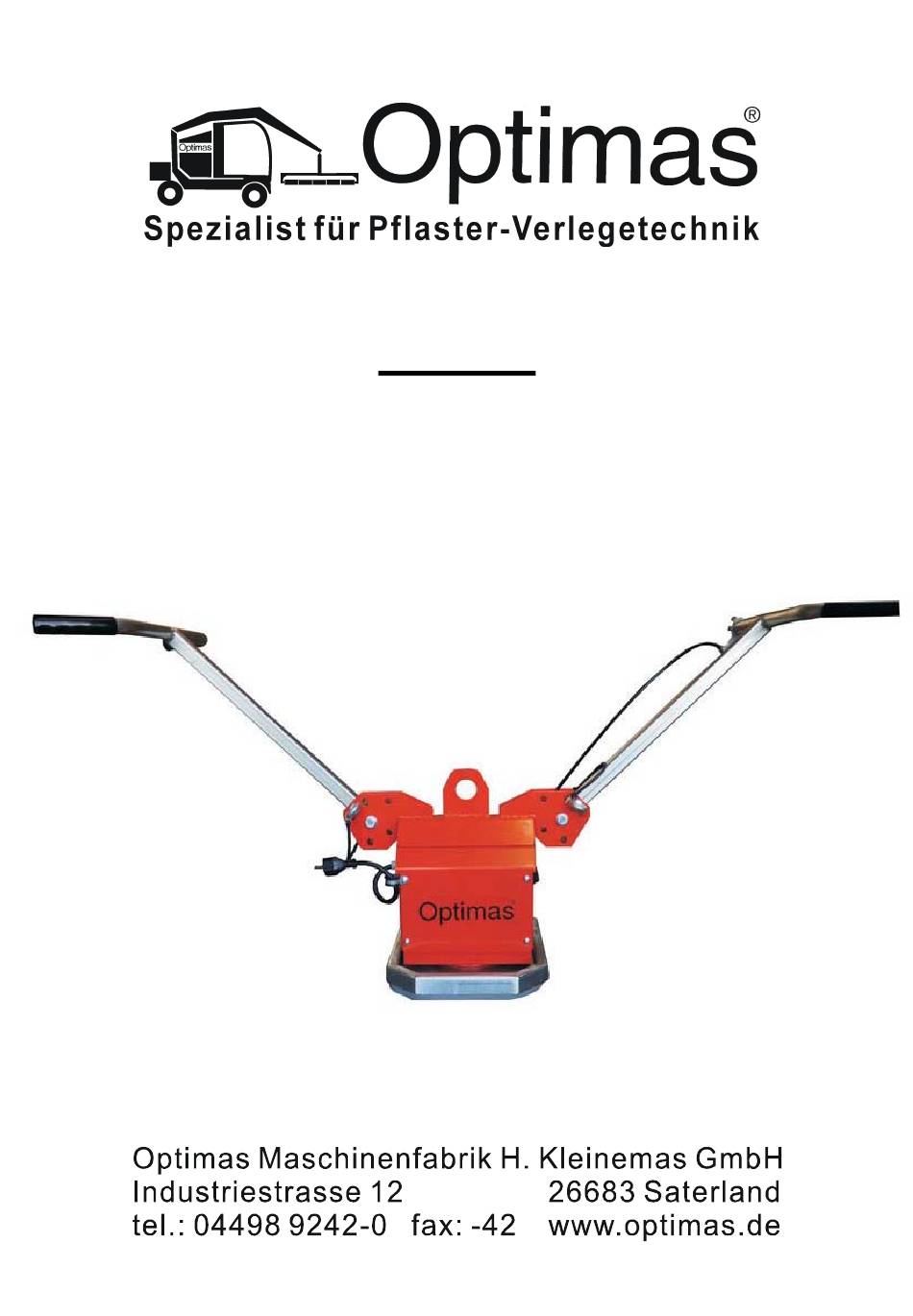

- Page 1 Manual Optimas Vacuum Device SV 200 E...
-
Page 2: Table Of Contents
1 Content: Content Compliancy General Correct operation Overview and set up Technical data Safety Safety notes Safety identification Definition professional/expert Personal safety measures Safety equipment Accident prevention Functions- and sight check 4.7.1 General Safety during operation 4.8.1 General 4.8.2 Arbitrary conversions Operation General Working safety advices... -
Page 3: Compliancy
2 Compliancy Konformitätserklärung; Declaration of conformity; Déclaration de Conformité; Certificato di conformita´norma CE; Declaración de conformidad Denomination: Optimas Vacuum device SV 200 E Hersteller: Optimas Maschinenfabrik GmbH Manufacturer: Industriestr. 12 Fabricant: 26683 Saterland-Ramsloh Costruttore: Optimas Maschinenfabrik GmbH Fabricante: www.optimas.de info@optimas.de... - Page 6 Sign, information to person in charge: Saterland-Ramsloh, 26.06.2014………………………………………………………………………………. (F. Kleinemas, Managing Director)
-
Page 7: General
3 General 3.1 Correct operation: Device has to be operated only as described in this manual. Observe all safety rules and • determinations regarding declaration of conformity. Each other kind of operation is not intended and is prohibited. • Restraint All law security- and accident regulations have to be observed! •... -
Page 8: Technical Data
3.3 Technical data Lifting capacity: 200 kg Electricity: 110 V Weight without Noise level: 85 dB suc. pad and handles: 12,5 kg Environment tempr.: -10 to 40 °C Vacuum pump: 1400 W Pressure at beginning: 0-175 mbar Final pressure: -780 mbar 4 Safety 4.1 Safety notes Mortal danger! -
Page 9: Definition Professional/Expert
4.3 Definition professional/expert Installations-, maintenance- and repairs can be done only by professionals or experts. Professionals and experts need to have basic knowledge, as long as applicable to this machine, on following fields: Hydraulic • Pneumatic • Electrical engineering • Mechanics •... -
Page 10: Functions- And Sight Check
4.7 Functions- and sight check 4.7.1 General Device need to be checked before each use in regard to functions and condition! • Maintenance, lubrication and trouble shooting only in disused mode! • At safety catching defects device need to be repaired immediately. Only after proper •... -
Page 11: Operation
5 Operation 5.1 General Optimas Vacuum device SV 200 E is a vacuum lifting device. Which is designated for airtight material. 5.2 Working safety advices Safety shoes, gloves and helmet. • Never exceed maximum lifting capacity (200kg) of device and suction pad. -
Page 12: Mounting Of Suction Pad
5.4 Mounting of suction pad Choose correctly sized suction pad depending on weight of element to be lifted and mount suction pad with 4 screws. 5.5 Transport position / working position Remove locking pins on both handles. Adjust handles in wished working position and fix handles with locking pins. -
Page 13: Trouble Shooting
5.9 Trouble shooting Vacuum device SV 200 E need to be maintained and mounted only by qualified professionals, mechanics or electricians. After repairs and maintenance works all in this manual described safety regulations need to be checked. Breakdown Cause Solution Pump doesn’t rotate... -
Page 14: Maintenance And Service
6 Maintenance and service Turn off device before any repair or maintenance work. 6.1 Maintenance schedule Maintenance Daily Weekly Monthly Each 6 Annually weeks Check manometer, external air valve and power cable Check dust-proof-grid Check electric system and cables Check wear out of vacuum pipes, couplings and other damages Check wear out of... -
Page 15: Complete Device Examination
6.2 Complete device examination Rubber sponge Rubber sponge of suction pad need to be chcked and cleaned at least once per week. Damaged rubber sponge need to be renewed immediately. Cleaning of device only with cold cleaning products. Use cleaning products only which don’t damage rubber sponge! -
Page 16: Maintenance Verification
Maintenance verification Warranty claims accepted only with advised and fulfilled maintenance works. (In case of warranty claim, please add always copy of maintenance verivication) Operator: _____________________ Article-No.:_____________________ Device type:_____________________ Year of construction: Device-No.:_____________________ _______________________... - Page 17 Maintenance verification Warranty claims accepted only with advised and fulfilled maintenance works. (In case of warranty claim, please add always copy of maintenance verivication) Operator: _____________________ Article-No.:_____________________ Device type:_____________________ Year of construction: Device-No.:_____________________ _______________________...
- Page 18 Maintenance verification Warranty claims accepted only with advised and fulfilled maintenance works. (In case of warranty claim, please add always copy of maintenance verivication) Operator: _____________________ Article-No.:_____________________ Device type:_____________________ Year of construction: Device-No.:_____________________ _______________________...
