PARTS AND SERVICE MANUAL
MHCservmanual

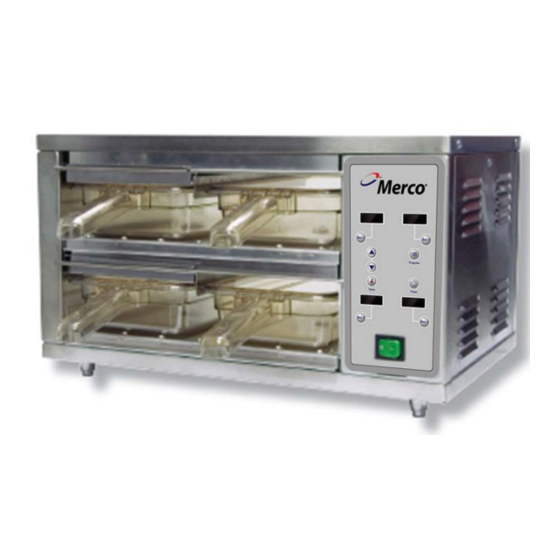

MERCO HOLDING CABINET
MODEL 86002
Merco Savory, Inc.
1111 North Hadley Road
Fort Wayne, Indiana 46804
United States of America
Phone: (260) 459-8200
U.S. Facsimile: (888) 790-8193
Int'l Facsimile: (260) 436-0735
Service Hotline: (800) 678-9511
www.mercosavory.com
FOR
REV: B
Advertisement
Table of Contents
Summary of Contents for Merco 86002

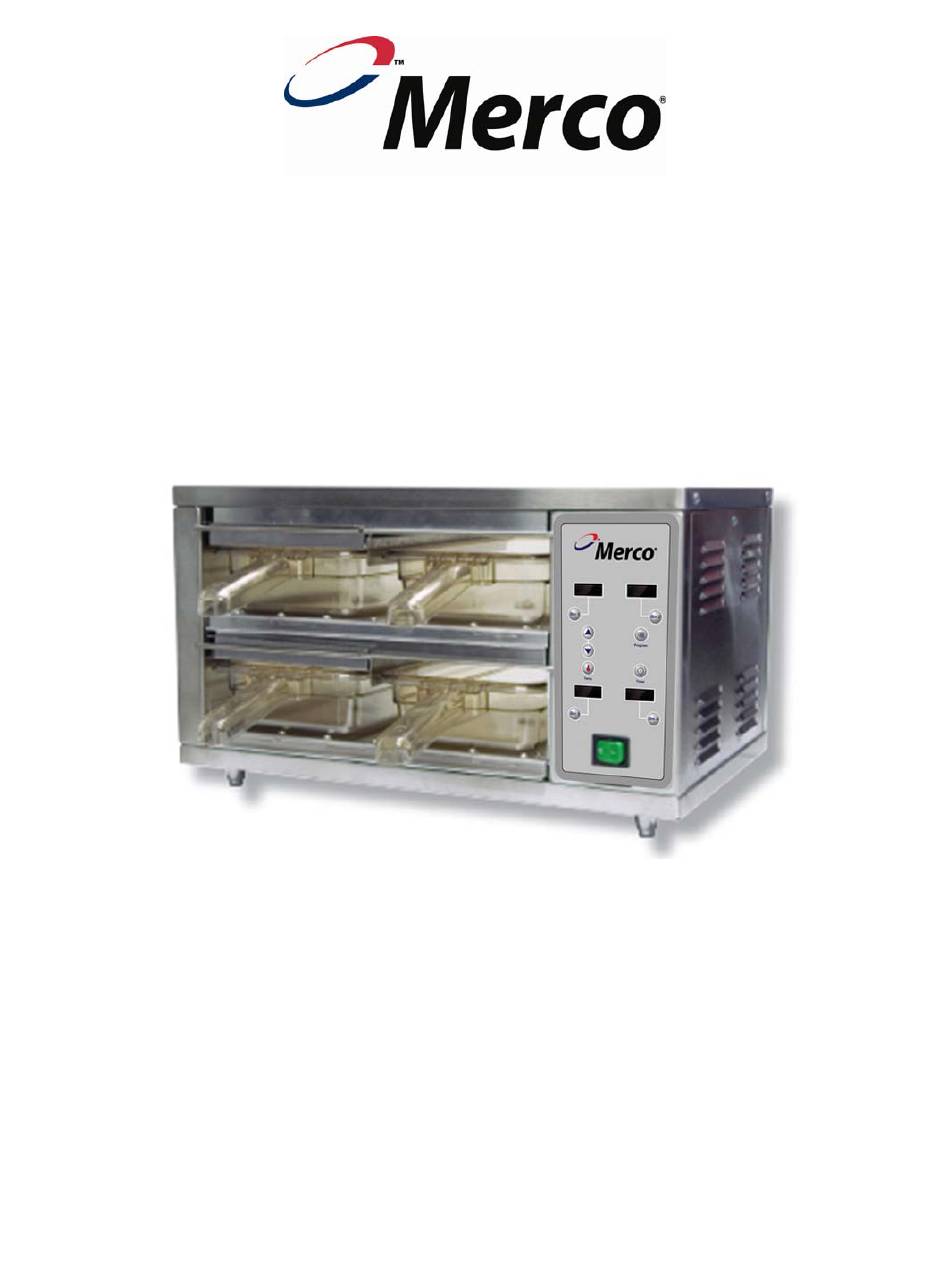

- Page 1 PARTS AND SERVICE MANUAL MERCO HOLDING CABINET MODEL 86002 Merco Savory, Inc. 1111 North Hadley Road Fort Wayne, Indiana 46804 United States of America Phone: (260) 459-8200 U.S. Facsimile: (888) 790-8193 Int’l Facsimile: (260) 436-0735 Service Hotline: (800) 678-9511 www.mercosavory.com...
-
Page 2: Specifications
SPECIFICATIONS TOP VIEW FRONT VIEW SIDE VIEW Net Wt. Model # Voltage Amps Watts Plug lbs./kg 86002 10.4 1250 30/14 6’ Nema 5-15P Holding Cabinet – Service Manual... - Page 3 MHC-22-GEN CONTROL PANEL MODEL 86002 Bin Button #1 Bin Button #2 Up Arrow Button Program Button Down Arrow Button Time Button Temperature Button Bin Button #3 Bin Button #4 Holding Cabinet – Service Manual...
-
Page 4: Wiring Diagram
WIRING DIAGRAM Holding Cabinet – Service Manual... -
Page 5: Sequence Of Operation
SEQUENCE OF OPERATION Power Supply Electrical power is supplied to the unit by a 3 conductor service for single phase. 120VAC Black conductor is hot. White conductor is neutral. Green and yellow conductor is ground. Power is permanently supplied to the main power switch. Heating Circuit Closing the main power switch supplies voltage to the power board and user interface. -
Page 6: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE EVALUATION Holding Cabinet will Incoming Power Supply Verify power cord is secured firmly in receptacle. not heat Measure the incoming voltage. Check circuit breakers. Reset if required. Call power company if needed. Power Switch Check continuity between switch terminals. Replace switch as needed. - Page 7 TROUBLESHOOTING GUIDE (CONT’D) Display reads Make sure wires are connected properly unusual characters (grounded). If wires are grounded properly, new control board is needed. On/Off switch doesn’t Power Switch Check wiring to switch. light (but unit works properly) HEAT SHELF – REPLACEMENT Disconnect power.
-
Page 8: Parts Breakdown
PARTS BREAKDOWN LABEL PART NUMBER PART DESCRIPTION 340040 Back Panel Assembly 340041 Side Panel 340042 Power Board Assembly 340043 Controller, User Interface 340038 Switch, Rocker, Lighted 10000949 Overlay, Control Panel 340045 Bracket, Heater Side 340046 Tray Seal 340011 340015 Tray, Plastic 340025 Tray Cover, Front Retention Rod, Assembly 10000968... -
Page 9: General View
GENERAL VIEW Holding Cabinet – Service Manual... -
Page 10: Diagnostic Mode
DIAGNOSTIC MODE ► Press and hold down the “Temperature” button until you hear a short, double-beep sound. In this mode all displays indicate temperatures for either the upper or lower heaters for each bin. Pressing the “Up” and “Down” arrow buttons will select the upper and lower heaters respectively. - Page 11 • Upper and lower temperature for each product • “Expiration” and “Cook More” time for each product NOTE: For additional information concerning Menu and Product programming, please refer to Merco Holding Cabinet Installation & Operation Manual. Holding Cabinet – Service Manual...
- Page 12 Merco Savory, LLC 1111 North Hadley Road Fort Wayne, Indiana 46804 United States of America Telephone: (260) 459-8200 U.S. Facsimile: (888) 790-8193 Int’l Facsimile: (260) 436-0735 Service Hotline: (800) 678-9511 www.mercosavory.com Holding Cabinet – Service Manual...
