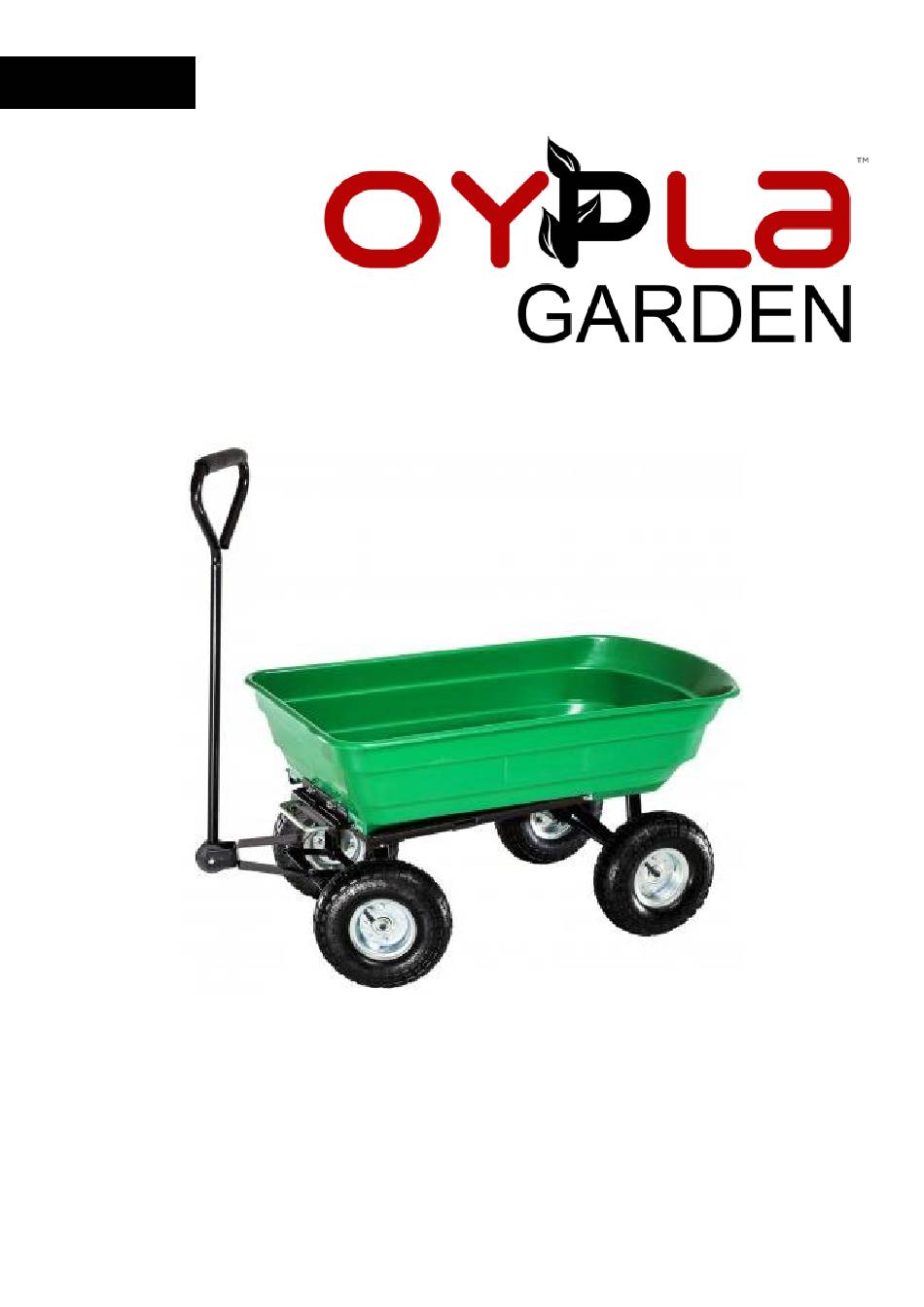

- Page 1 User Manual Garden Tipping Trolley USER MANUAL Model No: 2458...
- Page 2 • Use the correct fixings as indicated. Do not tighten any of the nuts until the unit is completely assembled, then finish by tightening all nuts. All nuts must be tightened before use. • Keep away from fire. • If the product is damaged or has any defects, please contact cservice@oypla.com. USER MANUAL Model No: 2458...
- Page 3 Front axle (1pc) frame with support with rear struts braces (1pc) (1pc) Handle Wheels Small bolt coupler (4pcs) (14pcs) (1pc) Small bolt Large locking Gasket washers (4pcs) (14pcs) (4pcs) Long bolt Long Bolt (1pc) washer (1pc) USER MANUAL Model No: 2458...
- Page 4 1. Grab the barrow tub (A) and place it upside down on a flat surface. Then grab the frame (B) and align the holes on the tub and the frame and secure using one bolt on each side (I). 2. Next grab the front axle support with braces (G), and place it on the opposite end to where you attached the tub to the frame.
- Page 5 1 long bolt (M) and long bolt washer (N). 6. Attach the 4 wheels (H) to each axle bar, and secure this by using 4 gaskets (L) and the large locking nut (K). USER MANUAL Model No: 2458...
- Page 6 On the lock mechanism, pull the handle to release the lock and lift upwards. Lowering the plastic tray Slowly push the plastic tray down. Pull the handle and release back into the locking holes. Imported by Oypla.com LLP, Uxbridge, UB8 2FX USER MANUAL Model No: 2458...
