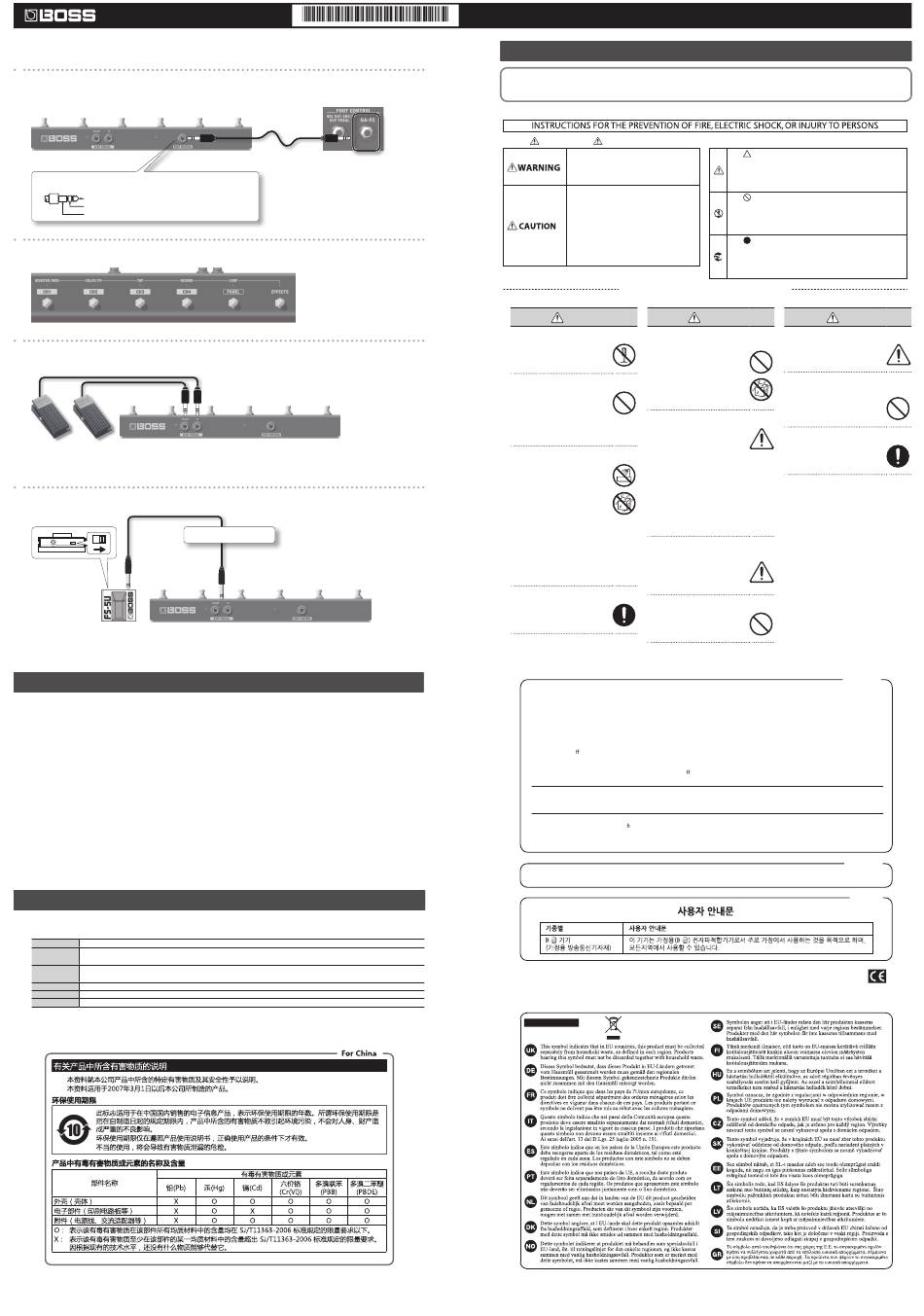

Boss GA-FC Owner's Manual

GA-FC Owner's Manual
This product is a foot controller for amp products that are equipped with a GA-FC jack. The printing on the panel indicates the functions for a KATANA amp.
If you are using this foot controller with a product other than a KATANA amp, please affix the label sheet that is included with your amp.
Connecting the GA-FC
Use a stereo cable to connect the foot controller to the GA-FC jack of your amp.
* Always use a stereo cable.
* Use cables that do not contain resistors.
* This instrument is equipped with TRS type jacks. Wiring diagrams for these jacks
are shown below.
TIP
RING
SLEEVE (GND)
Operating the GA-FC
When used together with a KATANA amp, you can use the GA-FC to switch channels or turn effects on/off.
* For details on operation, refer to the owner's manual of your amp.
Using the expression pedals
When used together with a KATANA amp, connecting an expression pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H: sold separately) lets you use the
pedal to control volume or other aspects of the sound.
* For details on operation, refer to the owner's manual of your amp.
* Use only the specified expression pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H; sold separately). By connecting any other expression pedals, you risk
causing malfunction and/or damage to the unit.
Using the footswitches
When used together with a KATANA amp, connecting a footswitch (BOSS FS-5U: sold separately) lets you use it to switch between BANK A/B.
* For details on operation, refer to the owner's manual of your amp.
1/4" phone type,1/4" phone type
Copyright © 2012 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
IMPORTANT NOTES
Placement Maintenance
• This device may interfere with radio and television • For everyday cleaning wipe the unit with a soft,
reception. Do not use this device in the vicinity of dry cloth or one that has been slightly dampened
such receivers. with water. To remove stubborn dirt, use a cloth
impregnated with a mild, non-abrasive detergent.
• When moved from one location to another where
Afterwards, be sure to wipe the unit thoroughly
the temperature and/or humidity is very different,
with a soft, dry cloth.
water droplets (condensation) may form inside
the unit. Damage or malfunction may result if you • Never use benzine, thinners, alcohol or solvents of
attempt to use the unit in this condition. Therefore, any kind, to avoid the possibility of discoloration
and/or deformation.
before using the unit, you must allow it to stand
for several hours, until the condensation has
Additional Precautions
completely evaporated.
• Use a reasonable amount of care when using
• Depending on the material and temperature of the
the unit's switches; and when using its jacks
surface on which you place the unit, its rubber feet
and connectors. Rough handling can lead to
may discolor or mar the surface.
malfunctions.
You can place a piece of felt or cloth under the
rubber feet to prevent this from happening. If you
• When disconnecting all cables, grasp the connector
do so, please make sure that the unit will not slip or
itself—never pull on the cable. This way you will
move accidentally.
avoid causing shorts, or damage to the cable's
internal elements.
• Swiftly wipe away any liquid that spills on the unit
using a dry, soft cloth.
Main Specifications
BOSS GA-FC: Foot Controller
Controls Switch x 6
EXP PEDAL jack (1/4-inch TRS phone type) x 2
Connectors
FOOT CONTROL jack (1/4-inch TRS phone type)
392 (W) x 81 (D) x 49 (H) mm
Dimensions
15-7/16 (W) x 3-3/16 (D) x 1-15/16 (H) inches
Weight 1.0 kg / 2 lbs 4 oz
Accessories Owner's Manual, Foot Controller Cable
Options Expression Pedal (Roland EV-5, BOSS FV-500L, BOSS FV-500H)
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
* 5 1 0 0 0 2 9 0 5 3 - 0 3 *
GA-FC jack
• When you need to transport the unit, package it
in the box (including padding) that it came in, if
possible. Otherwise, you will need to use equivalent
packaging materials.
• Use only the specified expression pedal (Roland EV-
5, BOSS FV-500L, BOSS FV-500H; sold separately).
By connecting any other expression pedals, you risk
causing malfunction and/or damage to the unit.
Copyright
• Roland and BOSS are either registered trademarks
or trademarks of Roland Corporation in the United
States and/or other countries.
• Company names and product names appearing
in this document are registered trademarks or
trademarks of their respective owners.
USING THE UNIT SAFELY
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES. " These sections provide important information concerning the
proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual
should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
About WARNING and CAUTION Notices
Used for instructions intended to alert the
user to the risk of death or severe injury
should the unit be used improperly.
Used for instructions intended to alert the
user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers to damage or
other adverse effects caused with
respect to the home and all its
furnishings, as well to domestic animals
or pets.
ALWAYS OBSERVE THE FOLLOWING
WARNING
Don't allow foreign objects or liquids to enter unit; never
Do not disassemble or modify by yourself
place containers with liquid on unit
Do not open or perform any internal
modifications on the unit. Never allow foreign objects (e.g.,
flammable objects, coins, wires) or liquids
(e.g., water or juice) to enter this product.
Doing so may cause short circuits, faulty
operation, or other malfunctions.
Do not repair or replace parts by yourself
Do not attempt to repair the unit, or
replace parts within it (except when this
manual provides specific instructions
directing you to do so). Refer all servicing
Turn off the unit if an abnormality or malfunction occurs
to your retailer, the nearest Roland
Service Center, or an authorized Roland
Immediately turn the amplifier off, and
distributor, as listed on the "Information"
request servicing by your retailer, the
page.
nearest Roland Service Center, or an
authorized Roland distributor, as listed on
Do not use or store in the following types of locations
the "Information" page when:
• Subject to temperature extremes (e.g.,
• Objects have fallen into, or liquid has
direct sunlight in an enclosed vehicle,
been spilled onto the unit; or
near a heating duct, on top of heat-
generating equipment); or are
• If smoke or unusual odor occurs; or
• Damp (e.g., baths, washrooms, on wet
• The unit has been exposed to rain (or
floors); or are
otherwise has become wet); or
• Exposed to steam or smoke; or are
• The unit does not appear to operate
normally or exhibits a marked change in
• Subject to salt exposure; or are
performance.
• Humid; or are
Adults must provide supervision in places where
• Exposed to rain; or are children are present
When using the unit in locations where
• Dusty or sandy; or are
children are present, be careful so no
• Subject to high levels of vibration and
mishandling of the unit can take place. An
shakiness.
adult should always be on hand to provide
supervision and guidance.
Do not place in an unstable location
Do not drop or subject to strong impact
Make sure you always have the unit
placed so it is level and sure to remain
Protect the unit from strong impact.
stable. Never place it on stands that could
(Do not drop it!)
wobble, or on inclined surfaces.
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment requires shielded interface cables in order to meet FCC class B limit.
Any unauthorized changes or modi cations not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
CAN ICES-3 (B)/NMB-3 (B)
Manufacturer: 2036-1 Nakagawa, Hosoe-cho, Kita-ku, Hamamatsu, Shizuoka 431-1304, JAPAN
Importer: ENA 23 Zone 1 nr. 1620 Klaus-Michael Kuehnelaan 13, 2440 Geel, BELGIUM
For EU Countries
About the Symbols
The symbol alerts the user to important instructions or
warnings.The specific meaning of the symbol is
determined by the design contained within the triangle. In
the case of the symbol at left, it is used for general
cautions, warnings, or alerts to danger.
The symbol alerts the user to items that must never be
carried out (are forbidden). The specific thing that must
not be done is indicated by the design contained within
the circle. In the case of the symbol at left, it means that
the unit must never be disassembled.
The symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In the
case of the symbol at left, it means that the power-cord
plug must be unplugged from the outlet.
WARNING CAUTION
Manage cables for safety
Try to prevent cords and cables from
becoming entangled. Also, all cords and
cables should be placed so they are out of
the reach of children.
Avoid climbing on top of the unit, or placing heavy
objects on it
Never climb on top of, nor place heavy
objects on the unit.
Disconnect everything before moving the unit
Disconnect all cords coming from external
devices before moving the unit.
For the USA
For Canada
For Korea
