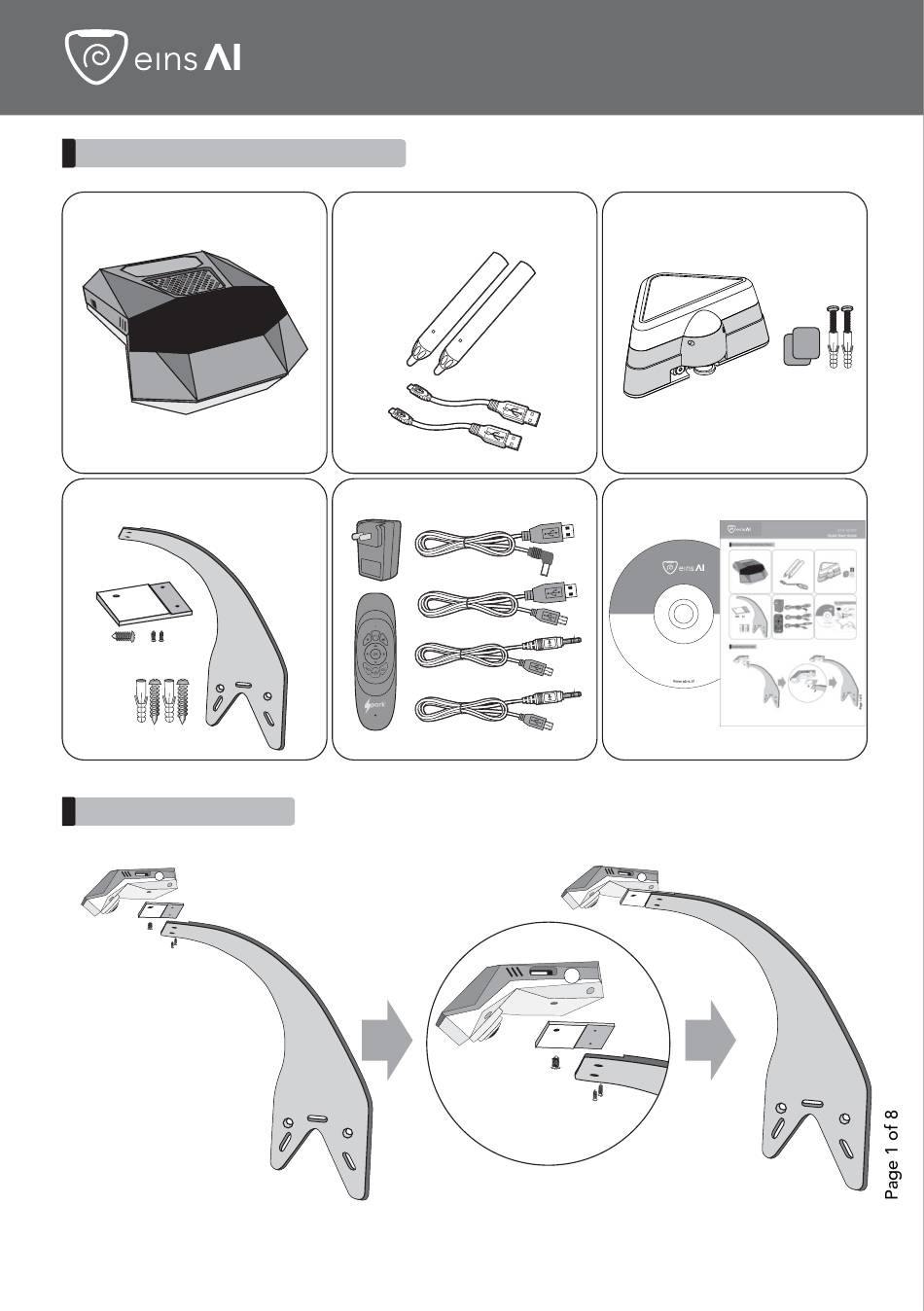

- Page 1 SparkTOUCH Quick Start Guide For any further support e-mail us: support@eins.ai Components for Standard Mount Setup SparkTOUCH Stylus and charging cables Touch unit with mounting accessories SparkTOUCH standard mount Remote, cables and Adapter Software CD and QSG einsspark Assembling SparkTOUCH...
- Page 2 Installing SparkTOUCH 1. Measure and mark the centre and top line of the whiteboard or choice of surface as shown below: 2. Place the mount and mark the holes as shown below and drill for M6 hole on the marked points 3.
- Page 3 2. Now SparkTOUCH with Touch v2.0 installation is complete 25mm 25mm Projection Area Projection Area 15mm Connectivity Sync Cable Remote USB Dongle Power cable Extender cable HDMI cable Align Touch unit 1. After turning on SparkTOUCH, press ‘Align’ button to turn on the red line Laser Align...
- Page 4 TOUCH 5. Make sure that the red line laser is not incident on the wall or board surface Side View Setting up SparkTOUCH 1. First Boot-up Note: Touching the board with your Stylus or Finger will not work as yet. First, calibrate the sensor. You...
- Page 5 2. Overscan Settings(for 1080p monitors and Panels) If you see green markers touching all the four corners of the display, it is OK. Refer the images below for more clarity Green markers: not visible Green markers: Too much inside 3. Setting up Finger Touch Unit...
- Page 6 4. Wi-Fi Set Up: - Hotspot Set Up:...
- Page 7 Sync Cable HDMI cable Power cable Extender cable HDMI Mini USB cable After SparkTOUCH is connected to a PC using OTG cable, , run the software CD (provided in the box) and run calibration tool - Running on macOS: SparkTOUCH>macOS>eins - Running on Windows: SparkTOUCH>Windows>eins...
- Page 8 Switch touch modes Reset calibration (finger/touch) Turn off mouse Registered office: einsAI, Level 1, B&M VGR Essor,No.1140, 17th Cross,Sector-7,HSR Layout,Bangalore - 560102 www.eins.ai Any suggestion or comments to this instruction or product are welcome. Please contact us via email (support@eins.ai)
