ASANO N3
Installation Manual
Description

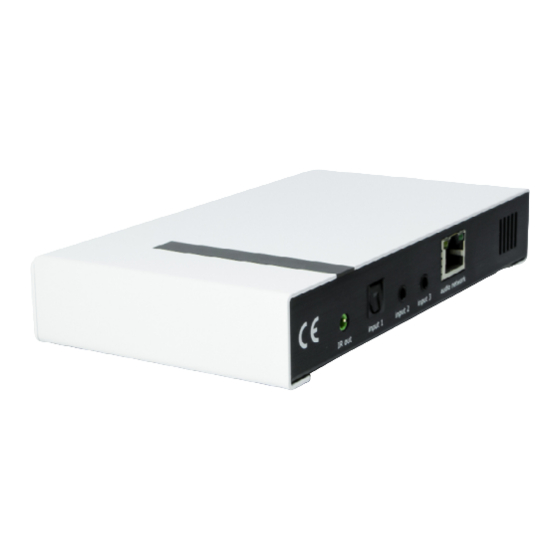

Asano N3 is an input module to connect 3 sources to the Asano system. Each source supports input detection. The
module has one output to control IR devices using IR transmitter (not included).
N3 can only be used in combination with S4 and is fully controlled over the audio network. The S4's integrated KNX
control allows you to integrate the Asano N3 in a KNX system.
1
IR out
input 1
LED feedback
The N3 has a feedback LED which indicates following statuses:
• Blue: standby mode
• White: at least one input is active

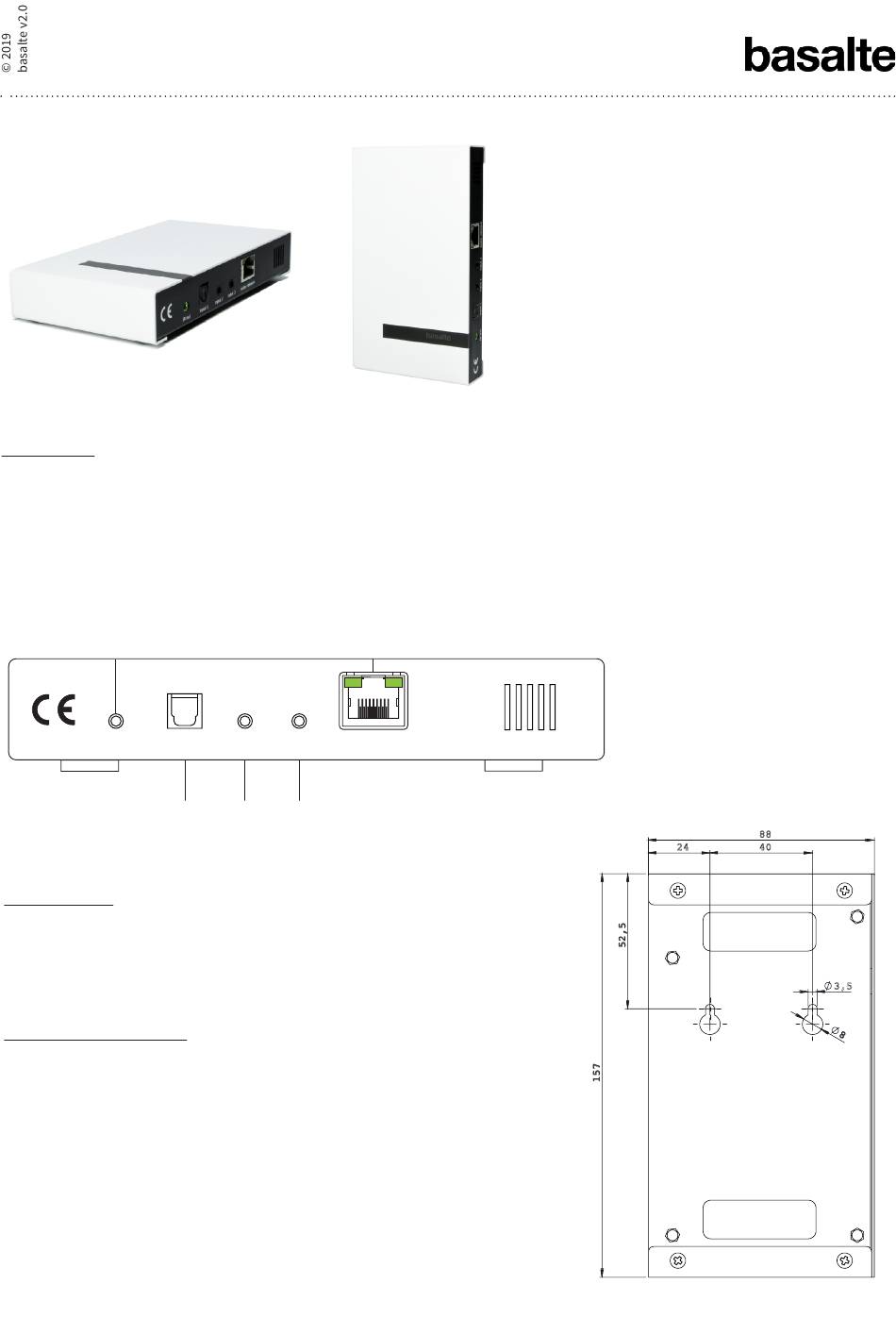

How to mount the unit
Asano N3 can be installed horizontally but can also be
mounted vertically.
Position the screws correctly, to ensure N3 is mounted
firmly to the wall with its soft feet.
input 2
input 3
audio network
2
3
3
4
Before operating the unit, please read this
manual thoroughly and keep it for future
reference.
Model No. 0701-03
Caution: any changes or modifications
not expressly approved in this manual
could void your authority to operate this
equipment.
1 IR OUT
2 S/PDIF optical input
3 2x 3.5 mini jack analogue input
4 Asano audio network
24
88
40
3,5
Advertisement
Table of Contents
Summary of Contents for Basalte ASANO N3
- Page 1 Description Asano N3 is an input module to connect 3 sources to the Asano system. Each source supports input detection. The module has one output to control IR devices using IR transmitter (not included). N3 can only be used in combination with S4 and is fully controlled over the audio network. The S4’s integrated KNX control allows you to integrate the Asano N3 in a KNX system.
- Page 2 B) PoE connection (use a network switch or PoE injector that meets IEEE 802.3af standard) 2. Audio network Connect Asano N3 to the Asano audio network using Ethernet CAT5e cable. The network must be a dedicated network separated from your local data network.
