Summary of Contents for Titan TT-BW248413SZ

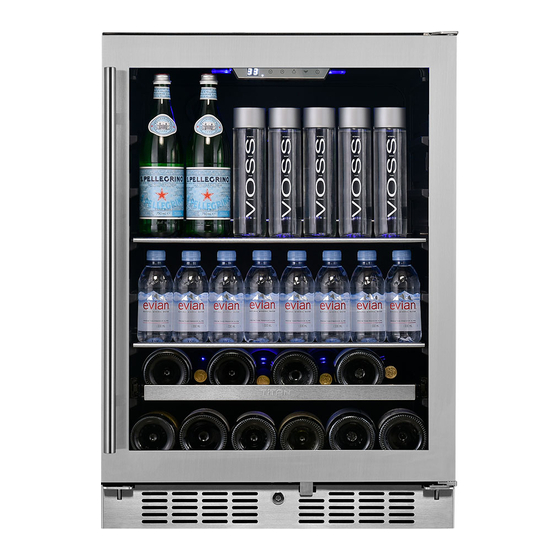

- Page 1 WINE STORAGE USER GUIDE & SERVICE MANUAL CLEANING, MAINTENANCE, AND MORE TT-BW248413SZ 24" Single Zone Single Door Beverage and Wine Cooler...
-
Page 3: Table Of Contents
USER GUIDE & SERVICE MANUAL www.titan-appliances.com Table of Contents Intro Safety and Warning Operation Instructions Instructions Before Using Control Operation Important Safety Instructions Sounds Defrosting Installation Environmental Requirements Electrical Maintenance Cutout Dimensions Cleaning Installation Clearance Requirements Troubleshooting Product Dimensions Warranty... - Page 4 For the latest information on this product and additional troubleshooting suggestions please visit our website at www.titan-appliances.com Should you need any help on the warranty service please contact our customer services at service@titan- appliances.com Contacts: Titan Products, LLC service@titan-appliances.com...
-
Page 5: Safety And Warning
Refer to the product label on the back of your unit for the latest technical information. Important Safety Instructions Improper handling can cause serious damage to the Titan appliance and/or injury to the user. This appliance is designed for domestic indoor use only. Use of the unit for industrial or commercial or any other purposes will void the warranty. - Page 6 USER GUIDE www.titan-appliances.com DANGER WARNING Service must be done by factory authorized Danger means that failure to follow this safety service personnel. Any parts shall be replaced statement will result in severe personal injury with like components. Failure to comply could or death.
-
Page 7: Installation
USER GUIDE www.titan-appliances.com INSTALLATION Environmental Requirements This model is intended for indoor/interior applications only and is not to be used in installations that are open/ exposed to natural elements. This unit is designed to operate between 50°F and 95°F. Higher ambient temperatures may reduce the unit’s ability to reach low temperatures and/or reduce ice production on applicable models. -
Page 8: Electrical
USER GUIDE www.titan-appliances.com Electrical WARNING SHOCK HAZARD — Electrical Grounding Required. Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected. Never remove the round grounding prong from the plug and never use a two-prong grounding adapter. -
Page 9: Cutout Dimensions
Cutout Dimensions PREPARE SITE Your Titan product has been designed for either free- standing or built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front grille must NOT be obstructed, and clearance is required for an electrical connection in the rear. -
Page 10: Installation Clearance Requirements
USER GUIDE www.titan-appliances.com Installation Clearance Requirements When installing the cooler under a counter, follow the recommended spacing dimensions shown. To ensure proper service access and ventilation, allow at least 2-3” of clearance at the back as shown in ⚫ the diagram. -
Page 11: Product Dimensions
USER GUIDE www.titan-appliances.com Product Dimensions... -
Page 12: Product Storage
USER GUIDE www.titan-appliances.com Storage Capacity 42 Cans 42 Cans 8 Bottles (φ86mm) 5 Bottles (φ89mm) Total：84 Cans Total：13 Bottles Glass Shelves (2) Wine Shelf (1) -
Page 13: Product Specifications
USER GUIDE www.titan-appliances.com Product Specification Single Zone Built-In Single Door Beverage and DESCRIPTION OF PRODUCT Wine Cooler TT-BW248413SZ MODEL AC 115 / 60 Hz VOLTAGE / FREQUENCY 1.5 A AMPERAGE Black Cabinet with Stainless Steel Door COLOR 84 cans and 13 bottles... -
Page 14: General Installation
USER GUIDE www.titan-appliances.com General Installation Before installation, please check and ensure that: 1. The appliance should be installed in accordance with local electrical code requirements. 2. The appliance should be placed in a location that is strong enough to support its total weight –always assume the weight when the appliance is fully loaded. -
Page 15: Types Of Installation
USER GUIDE www.titan-appliances.com Types of Installation: This appliance can be installed as a free standing or built-in unit. Keep in mind adequate ventilation and access for service is a must. 1. For free-standing installation: • Allows the installation of the appliance in almost any place you desire. -
Page 16: Handle&Shelf Installation
USER GUIDE www.titan-appliances.com Attentions: Titan Products recommends allowing the unit to run overnight before loading with product. As warm air rises, the temperature inside the unit tends to be slightly warmer at the top and slightly cooler at the bottom. -
Page 17: Shelf Installation
USER GUIDE www.titan-appliances.com Wire Shelf Removal Open the door completely. Remove all of the contents loaded on the shelf, if applicable. Line up the shelf notches with the rail posts as indicated below. This will require you to hold on to both rails as you move the shelf to line up the posts with the notches on both sides of the shelf. -
Page 18: Door Swing Installation
USER GUIDE www.titan-appliances.com Operation Instruction Check before operation Have you removed all packing materials and tape from the interior and exterior of the unit? Have you installed the unit properly by following the installation instructions? Has the unit been properly connected to the electrical outlet including proper grounding? Have you leveled the unit? Is the appliance properly located in an area where the ambient temperature is between 50°F and 95°F all... - Page 19 USER GUIDE www.titan-appliances.com Power Button Press and hold this button down for three seconds to power your unit on. Once pressed, the "Indicator Light" will illuminate to indicate the unit is on and running. Press and hold this button for three seconds again and the unit will power off and the "Indicator Light"...
- Page 20 USER GUIDE www.titan-appliances.com Sabbath Mode Sabbath mode disables system responses to user-initiated activities and all external functions, including lighting, display and audible alarms. The unit will maintain internal temperatures and set points. To enable or disable Sabbath mode, Press the Energy Saving button .
- Page 21 USER GUIDE www.titan-appliances.com WARNING Allow at least 24 hours for your wine cooler to run before storing your beverages to allow the temperature to acclimate. Whether your wine cooler can reach the actual set temperature depends on the ambient environmental condition CAUTION If you powered the unit off, please wait at least five (5) minutes before powering it back on.
-
Page 22: Sounds
USER GUIDE www.titan-appliances.com Sounds Defrosting Some sounds and noises generated by this appliance The unit automatically defrosts under most ambient may not be common to you, however most of these conditions and refrigerating settings. However some sounds are normal. Hard surfaces like floor and walls frost may build up under colder settings. -
Page 23: Maintenance
USER GUIDE www.titan-appliances.com Maintenance Cleaning Exterior Cleaning Vinyl Clad (Black) Clean surfaces with a mild detergent and warm water If any surface discoloring or rusting appears, clean it quickly with Bon-Ami ® or Barkeepers Friend solution. Do not use solvent-based or abrasive Cleanser ®... - Page 24 USER GUIDE www.titan-appliances.com Warning DO NOT use an ice pick or other sharp instrument to help speed up defrosting. These instruments can puncture the inner lining or damage the cooling unit. DO NOT use any type of heater to defrost. Using a heater to speed up defrosting can cause personal injury and damage to the inner lining.
-
Page 25: Troubleshooting
USER GUIDE www.titan-appliances.com Troubleshooting PROBLEM POSSIBLE CAUSE • Not plugged in. Appliance does not operate • The appliance is turned off. • Tripped circuit breaker or blown fuse. • Check the temperature control setting. • External environment may require a higher setting. -
Page 26: Warranty
Titan will be responsible for all transportation costs incurred in the event that service under this warranty is needed for the first 3 months from original purchase date. Consumer will be responsible for freight cost to Titan’s service department after 3 months to one year.
Need help?
Do you have a question about the TT-BW248413SZ and is the answer not in the manual?
Questions and answers
What does a beeping alarm with a flashing signal reading LO mean
A beeping alarm with a flashing signal reading "LO" on the Titan TT-BW248413SZ means the interior temperature is lower than 23°F (-5°C), and the malfunction indicator light will also activate. Immediate attention is advised.
