Hot Shot DuraProd HUDX Instructions

Instructions
SAFETY INSTRUCTIONS CAREFULLY READ AND FOLLOW
INSTRUCTIONS BEFORE USING THE HOT-SHOT
• The DuraProd is DESIGNED FOR USE ON LIVESTOCK ONLY.
™
• Never use the DuraProd on humans.
™

Application

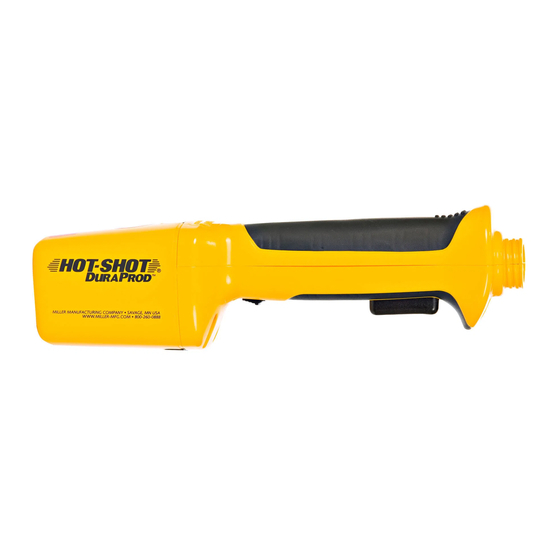

The DuraProd is an electric livestock prod designed to assist in the movement of
™
cattle and hogs.

Function

The DuraProd uses batteries to power an electronic circuit that generates a high
™
voltage pulse. This pulse is delivered by touching the animal with the two electrodes.

Animal Protection

Please follow the regulations that apply to animal protection & slaughtering in your
area.

Operation

To activate this prod move trigger button to unlock position, touch the two brass
prongs on the end of the prod to the animal and press the trigger button. A light
tough against the animal gives the most effective results. Only apply a shock to the
animal as required.

Changing Batteries

Before attempting to remove the battery compartment, make sure the trigger lock is
engaged (located on the bottom of the handle).
Removing & Reinstalling the Battery Pack:
1. Detach the battery compartment from the end of the DuraProd
pressure to the opposing black tabs connecting the compartment to the handle.
2. As you squeeze the tabs, lightly pull the compartment away from the handle.
3. The compartment should come free with little effort.
4. For reinstallation of the Battery Pack: depress Battery Pack tabs and snap onto
Motor unit to secure.
For the ALKALINE BATTERY PACK (item # DXABP), the batteries are secured in the
Battery Pack by a twist-off cap. To remove and replace:
• Twist off the cap by turning the top counterclockwise.
• Remove all batteries and insert the new ones according to the diagram.
• Replace the cap, press firmly, and turn clockwise.
For the RECHARGEABLE BATTERY PACK (item # DXRBP), the Battery Pack needs to be
placed in the Charger Base (item # DXRC). DO NOT ATTEMPT TO USE THE DXRC WITH
ANY OTHER TYPE OF ADAPTOR OTHER THAN R12 AND R110. This can cause severe
damage to the batteries, and will void any warranty.
• To charge, place the pack into the base, making sure the charger cord is properly
plugged into the Charger Base and a working power supply.
• The LED light will turn on and continue to flash until the battery is fully charged
(approx. 16 hours).
• After 16 hours the LED light will stop flashing and remain on (solid light). The
Charger Base has an internal timer. If the Battery Pack is removed from the base, the
timer will reset.
• Do not disassemble the Charger Base. There are no serviceable parts inside.
Disassembly will void the warranty.
• Unplug the Charger Base when not in use.
• Never expose the Charger Base to moisture.
• The Battery Pack can remain in the Charger Base for an extended period of time
without damage.
• KEEP THE UNIT AWAY FROM CHILDREN.
• The DuraProd generates a high voltage pulse, and you
™
should never touch the electrodes while the unit is activated.
® DURAPROD ™ . • Clean, dry and store DuraProd™ in dry environment.
Remove batteries prior to cleaning or drying
• KEEP DURAPROD™ DRY - If unit gets wet IMMEDIATELY
TAKE STEPS TO THOROUGHLY DRY UNIT OUT to avoid corrosion
and/or unintended feedback
by applying
™
ENGLISH
When the Battery Pack is fully charged, reattach the pack onto the DuraProd™ by
"snapping" it onto the handle. Do not disassemble the Rechargeable Battery Pack.
There are no serviceable parts inside. Disassembly of the Rechargeable Battery Pack
will void product warranty. The Rechargeable Battery Pack will need to be fully
charged before the prod can be used for the first time. The DuraProd
for use.
Break-in your new Rechargeable Battery Pack.
It is important to properly condition or break-in your new Rechargeable Battery Pack
in order to maximize its life and performance. New Rechargeable Battery Packs
arrive in a discharge condition and must be fully charged before use. This
conditioning charge may take up to 16-24 hours. It is recommended that you fully
charge and fully discharge your Rechargeable Battery Pack 2-4 times to allow the
batteries to reach its rated capacity. The term 'fully discharge' means to use the
Rechargeable Battery Pack in the Hot-Shot® device under normal conditions until
the device no longer operates correctly. It is a good idea to have a second battery
pack charged and ready when the first battery pack discharges.
Keep the Rechargeable Battery Pack clean and dry!
It is good maintenance to clean the Rechargeable Battery contacts with a cotton
swab and alcohol or use a pencil eraser to remove any dirt or grime. When storing the
Rechargeable Battery Pack, wipe it down with a clean dry cloth and store it in a cool
dry place away from heat sources and any metal objects.
Rechargeable batteries must be disposed of properly and may not be disposed of in
the municipal waste stream. Miller Mfg. Co. is a member of the Rechargeable Battery
Recycling Corporation and pays a licensing fee for each rechargeable battery we sell.
This means you can dispose of your rechargeable battery for free at one of the
thousands of disposal sites across the nation. To find a listing of locations by City or
Zip Code visit www.call2recycle.org or call toll-free 877-2-RECYCLE. Please note that
only the DXRBP is recyclable all other HOT-SHOT
by this program.
Using the HOT-SHOT DuraProd™
®
• Make sure the trigger lock is in the "down" or "unlocked" position.
• Apply the electrodes to the muscle of the hind leg of the animal. Press and release
trigger. Never touch the prod to an animals face, ears, head area, or genitals.
• As an alternative method, press the trigger and then touch the animal.
The DuraProd™ is a humane means for moving stubborn animals when other
methods are ineffective. Never hold the electrodes on an animal for an extended
period while the trigger is depressed.
Maintaining your HOT-SHOT
It is important to keep you HOT-SHOT
performance. Follow proper maintenance after each use.
1) Thoroughly CLEAN AND DRY the HOT-SHOT
a. Remove shaft from handle and dry connection area of shaft and handle
b. Wipe handle with a dry cloth, particularly around the trigger button and battery
compartment areas
2. Inspect shaft tip for damage or excessive wear and replace as necessary
3. Store with shaft separated from unit to allow for complete drying in areas that
can't be wiped dry
4. The HOT-SHOT Prod handle may be stored lying down, the shaft may be hung
®
from shaft hang hole in the tip
• Use in a well ventilated area. Do not use near
flammable liquids or dust.
• Whenever the Prod is not in use, move the trigger lock to
the lock position.
• IF USING RECHARGABLE UNIT COMPLETELY CHARGE PRIOR
TO FIRST USE.
• Intended for ground level use only
Prod components are not covered
®
DuraProd™
®
DuraProd™ clean and dry for best
®
Livestock Prod after each use:
®
is now ready
™
100669_Rev D_9/10
