Henderson's Line-Up SuperSteer SS308 Installation Instructions

Rear trac bar

Installation Instructions

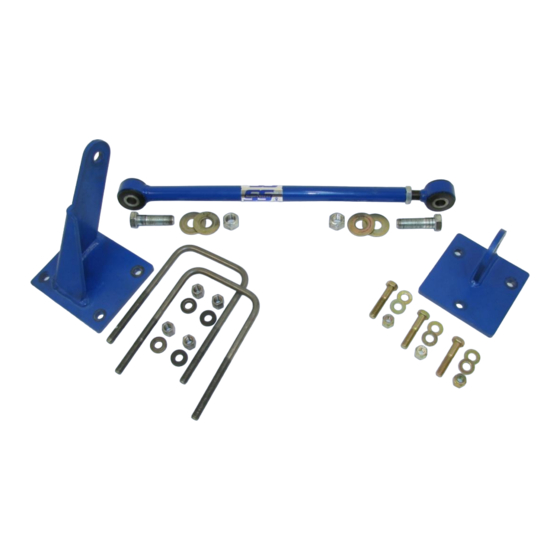

Part #SS308 - Rear Trac Bar

The design of this product is to eliminate the side shift of the rear axle

of the Fred Freightliner Chassis

Estimated Installation time is 1.5 hours.

*A qualified mechanic using normal automotive tools and following all safety measures known

should perform installation of this product.

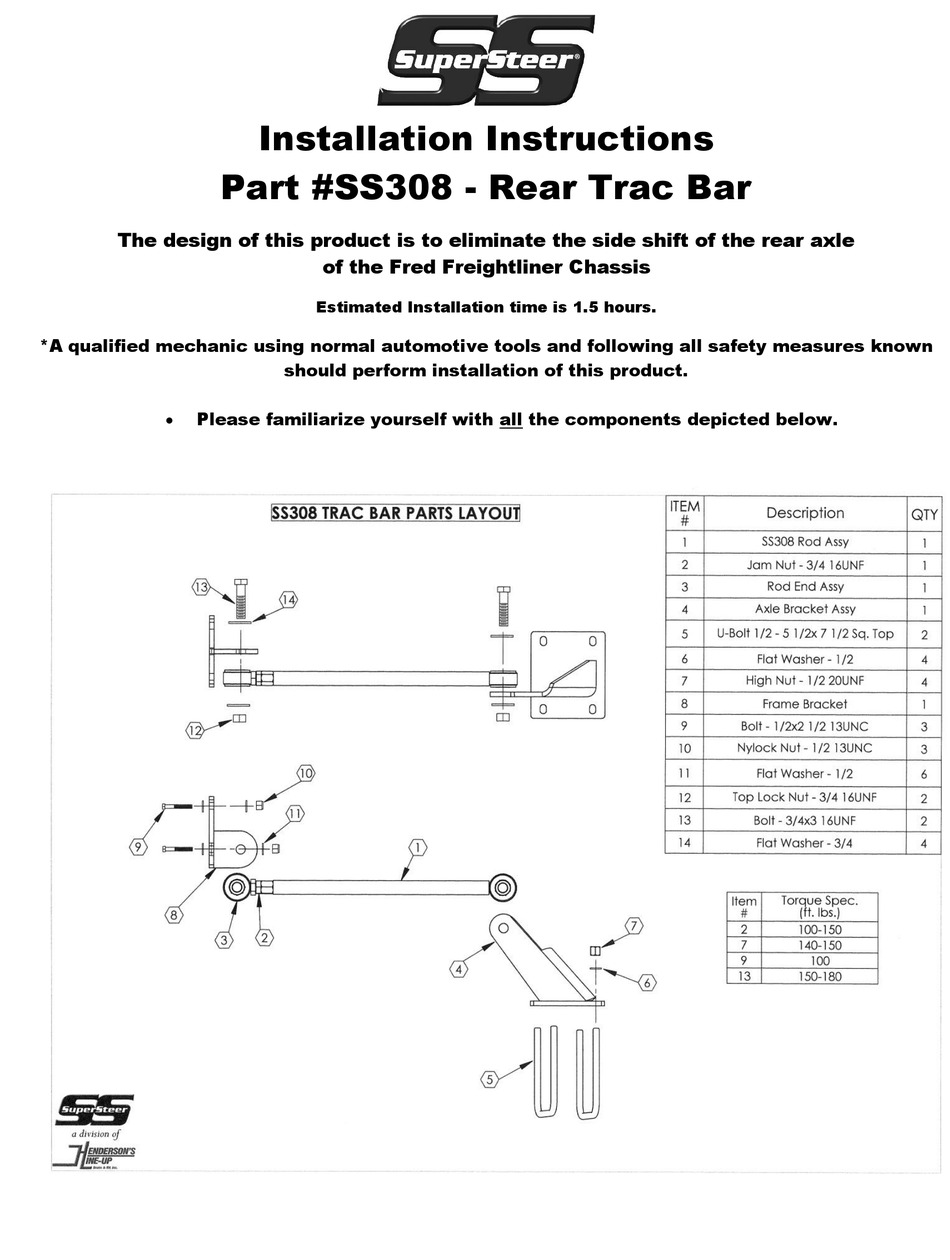

Please familiarize yourself with all the components depicted below.



Table of Contents

Need help?

Do you have a question about the SuperSteer SS308 and is the answer not in the manual?

Page 1 Installation Instructions Part #SS308 - Rear Trac Bar The design of this product is to eliminate the side shift of the rear axle of the Fred Freightliner Chassis Estimated Installation time is 1.5 hours. *A qualified mechanic using normal automotive tools and following all safety measures known should perform installation of this product.
Page 2 A. Preparation Move the coach to a level, flat surface. If necessary, drive the rear wheels of the coach onto 4” high blocks and set the brakes or you may drive the coach over a work pit and chock the front wheels.
Page 3 D. Installation of Rod Assembly With the coach at normal ride height, install the adjustable end of the rod assembly to the frame bracket. Use one of the supplied 3/4” x 3” bolts, two washers, and nut and assemble loosely. Adjust the length of the rod to reach the axle bracket and bolt on with the supplied 3/4”...
Page 4 Your comments are greatly appreciated. Please contact SuperSteer ® 888-898-3281 or e-mail at sales@supersteersuperstop.com Thank you for your purchase of the SuperSteer Rear Trac Bar. ® Revised 06.25.08 mg...
