4 – large crates
2 – 2" x 8" x 8' wood
1 – 2" x 4" x 8' wood
2 – 1" x 4" x 8' wood
3 – 1" x 3" x 8' wood
1 – ½" sheet of plywood
3 – ¼" x 2 ½" x 4' poplar
Crate
Batting
2 – 2 ½" narrow utility hinges

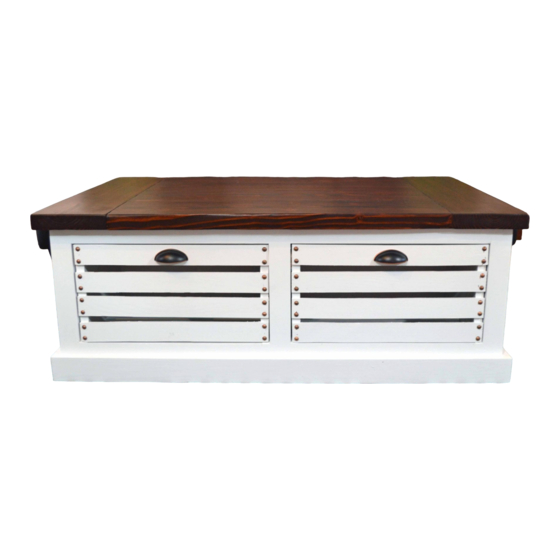

Crate Storage Coffee Table
Crate Storage Coffee Table
(by Her Tool Belt for Ryobi Nation)
Materials Needed Crate Table
Paint/Stain/Top Coat
Wood glue
1 ¼" pocket hole screws
2 ½" pocket hole screws
1 ¼" brad nails
Sand paper
Materials Needed for Stools
½" plywood
Cloth material
4 – swivel casters (optional)
5/8" brad nails
4 – swivel casters (optional)
4 – cup cabinet pull (optional)
64 – Upholstery nails (optional)
8' plastic hanger strap (optional)
Staples
2" foam
Staples
Paint/Stain
Advertisement
Related Manuals for Her Tool Belt Crate Storage Coffee Table
Summary of Contents for Her Tool Belt Crate Storage Coffee Table
- Page 1 Crate Storage Coffee Table (by Her Tool Belt for Ryobi Nation) Materials Needed Crate Table 4 – large crates Paint/Stain/Top Coat 5/8” brad nails 2 – 2” x 8” x 8’ wood Wood glue 4 – swivel casters (optional) 1 – 2” x 4” x 8’ wood 1 ¼”...
- Page 2 11 ¼” from the top. Make 2 face frames, 2 - 18 ¼” pieces at the top and 2 at 11 ¼”. Use wood glue and 1 ¼” screws to join the wood together. Crate Storage Coffee Table...
- Page 3 Drill 3 pocket holes on the backside of each side panel end. Use wood glue and 1 ¼” screws to attach one side of the panel to the face frame. Make the tops flush and the front of the side panel flush with the end of the face frame. Repeat for the other side panel. Crate Storage Coffee Table...
- Page 4 Optional – I decided to add swivel casters to my table so I could easily move it while vacuuming, etc. The casters are not necessary, but will be mostly hidden by the molding. Attach swivel casters to the bottom support. Rotate caster around and make sure there is plenty of room for the molding later. Crate Storage Coffee Table...
- Page 5 Add 3 or so pocket holes in the center divider to attach it to the bottom supports. Use 1 ¼” screws to attach the center divider to the supports. The center divider is the backstop for the crates. Crate Storage Coffee Table...
- Page 6 Attach the 27 ¼” molding pieces flush with the other molding pieces. Dry fit the large crates and make sure they fit nicely through the face frame and on the bottom Crate Storage Coffee Table...
- Page 7 I stapled plastic hanger strap on the bottom supports (optional). Cut the plastic hanger strap flush with the front and if needed hammer down the staples. I added a cup cabinet pull to each crate and decorated the crates by hammering upholstery nails into each slat. Crate Storage Coffee Table...
