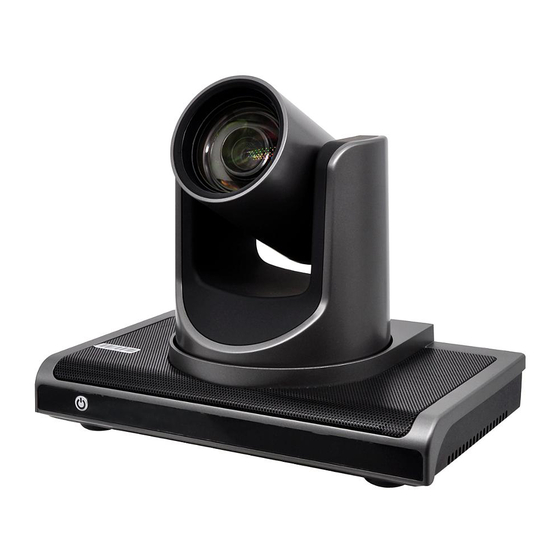

VHD VX710N User Manual

Ndi 4k video conference camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

NDI 4K Video Conference Camera
User Manual
NDI 4K Video Conference Camera
User Manual
English (V1.0)
Copyright Notice
All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or
translated without the permission of the company. Product specifications and information which
were referred to in this document are for reference only. We may change, delete, or update any
content at any time and without prior notice.
=============================================================================
This is class A production. Electromagnetic radiation at specific frequencies may affect the image
quality of TV in home environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX710N and is the answer not in the manual?

Questions and answers

Related Manuals for VHD VX710N

Summary of Contents for VHD VX710N

  • Page 1 NDI 4K Video Conference Camera User Manual NDI 4K Video Conference Camera User Manual English (V1.0) Copyright Notice All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only.

  • Page 2: Table Of Contents

    NDI 4K Video Conference Camera User Manual Catalogue 1 Note ..........................1 2 Packing List ........................ 1 3 Quick Start ........................1 4 About Product ......................2 4.1 Features ............................ 2 4.2 Product Specification ......................... 2 4.3 Interfaces and Buttons ......................4 4.4 Dimension ..........................
  • Page 3 NDI 4K Video Conference Camera User Manual 6.5.1 Setup IP Controlled by Dynamic DNS .................. 12 6.5.2 Dynamic DNS Visit Camera ....................12 6.5.3 VLC Stream Media Player Monitor ..................12 6.6 Camera Parameter Setup ....................... 13 6.6.1 Homepage Introduction ......................13 6.6.2 Video Settings ........................

  • Page 4: Note

    NDI 4K Video Conference Camera User Manual environment to avoid any cover (plastic Note material) damage. Make sure there is no obstacle within rotation range.  Electric Safety Please never power on before installation is Installation and operation must accord with completed.

  • Page 5: About Product

    NDI 4K Video Conference Camera User Manual 2) Connect the power adapter to the power  Low Light connector on the rear panel of the camera. The application of 2D and 3D noise reduction The power indicator on the front panel of algorithm greatly reduces image noise.
  • Page 6 NDI 4K Video Conference Camera User Manual Minimum 0.5 Lux @ First Stream, Video Stream Illumination (F1.8, AGC ON) Second Stream 3840x2160, 1920x1080, Shutter 1/30s ~ 1/10000s First Stream 1280x720, 1024x576, Auto, Indoor, Outdoor, White Balance Resolution 960x540, 640x480, One Push, Manual, VAR 640x360 Backlight Support...

  • Page 7: Interfaces And Buttons

    NDI 4K Video Conference Camera User Manual 1 x USB 3.0: Up to Item Name 4K@60fps compressed 3G-SDI Interface USB Interface video and 1080P original DC 12V Interface video can be output 1 x 3G-SDI: BNC type, 4.4 Dimension 3G-SDI 800mVp-p, 75Ω.

  • Page 8: Remote Control

    NDI 4K Video Conference Camera User Manual 5. HOME Key 4.5 Remote Control Confirm menu, enter the submenu or the PTZ will back to the middle position after pressed it 6. Return Key Return back the last level menu 7. Zoom Key Slow Zoom: Zoom In [+] or Zoom Out [-] slowly Fast Zoom: Zoom In [+] or Zoom Out [-] fast 8.

  • Page 9: Rs232 Interface

    NDI 4K Video Conference Camera User Manual 16. Backlight Key Function BLC ON/OFF: Press this button to enable the backlight compensation. Press it again to disable the backlight compensation. NOTE:  Effective only in auto exposure mode.  If a light behind the subject, the subject will become dark.

  • Page 10: Visca Network

    NDI 4K Video Conference Camera User Manual 4.7 VISCA Network GUI Settings 5.1 MENU Press [MENU] button to display the main menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu.

  • Page 11: Color

    NDI 4K Video Conference Camera User Manual ExpComp: Exposure the compensation value, WB-Mode: White balance mode, optional optional items: -7 ~ 7 (Effective only in items: Auto, Indoor, Outdoor, One Push, ExpCompMode item to On). Manual, VAR. Backlight: Set the backlight compensation, RG Tuning: Optional items: 0 ~ +10 (Effective optional items: On, Off (Effective only in Auto only in Auto mode);...

  • Page 12: P/T/Z

    NDI 4K Video Conference Camera User Manual Flip-H: Image flipped horizontally, optional 5.6 NOISE REDUCTION items: On, Off. Move the main menu cursor to [NOISE Flip-V: Image Flip Vertical, optional items: On, REDUCTION], and press [HOME] key enter Off. the noise reduction page, as shown in the B&W-Mode: Optional items: On, Off.

  • Page 13: Restore Default

    NDI 4K Video Conference Camera User Manual [HOME] key enter the communication setup Network Function page, as shown in the following figure. COMMUNICATION SETUP 6.1 Operating Environment Protocol VISCA Operating System: Windows 7/8/10, Mac OS X, V_Address V_AddrFix Linux, Android Net Mode Serial Network Protocol: TCP/IP...

  • Page 14: Visit/Access Camera

    NDI 4K Video Conference Camera User Manual If you don't know camera IP, view as below: Method 2: Open “upgrade_En.exe”, change IP Method 1: Press * and # and 4 on remote and click “Set”. After modified, the video controller one by one, the camera IP address conference camera will be restart.

  • Page 15: Camera Controlled By Wan

    NDI 4K Video Conference Camera User Manual 6.5.2 Dynamic DNS Visit Camera Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link: http://hostname: port number. For example, setup host computer name: youdomain.f3322.org, the camera port number is 89, the access link should be http://youdomain.3322.org:89.

  • Page 16: Camera Parameter Setup

    NDI 4K Video Conference Camera User Manual B. PTZ Setup RTSP port number default 554. If the camera port default is 80, then unnecessary to input port number of URL address. 6.6 Camera Parameter Setup 1) Pan and Tilt Control 6.6.1 Homepage Introduction Up, Down, Left and Right arrows and the home Menu...

  • Page 17: Video Settings

    NDI 4K Video Conference Camera User Manual Click the "Set" button to save the current 6.6.2 Video Settings location with that preset number. Click the “Call” button to cause the camera to return to that position. This enables smooth, quick and convenient control without the need to manually drive the camera.

  • Page 18: Image Settings

    NDI 4K Video Conference Camera User Manual 4) Resolution 11) Slice Size First stream support 3840x2160, 1920x1080, Set the size of slice. 1280x720, 1024x576, 960x540, 640x480, 6.6.3 Image Settings 640x360. Second stream support 1920x1080, 1280x720, 1024x576, 720x576 (50Hz support), 720x480 (60Hz support), 720x408, 640x360, 480x270, 320x240, 320x180;...

  • Page 19: Audio Settings

    NDI 4K Video Conference Camera User Manual 6) Flip & Mirror 1) Reboot Tick Flip to realize image upside down, tick Click “Reboot” button, the system restart. mirror to realize image around the mirror. 2) factory default Default value is not tick. Click “Apply”...

  • Page 20: Ndi® Config

    NDI 4K Video Conference Camera User Manual 2) Lan Settings(NDI) 9) Multicast Settings Default the IP address is 192.168.100.90. Turn On/Off multicast. Setting the multicast address (default value is 224.1.2.3) and port 3) Port Settings (default value is 6688, then 6688 is the A.

  • Page 21: Device Information

    NDI 4K Video Conference Camera User Manual Unqualified Application 3) NDI®|HX2 Stream  No shooting extreme bright object for a long Turn On/Off NDI®|HX2 Source Stream, setting the Group Name, Source Name and output period of time, such as sunlight, light resolution.
  • Page 22 NDI 4K Video Conference Camera User Manual  Unable to access video conference camera  Forget the IP address or login password Please remember (The default IP address: through IE Browser 192.168.100.88; default user name: admin; 1) Using PC to access the network to test default password: admin).
