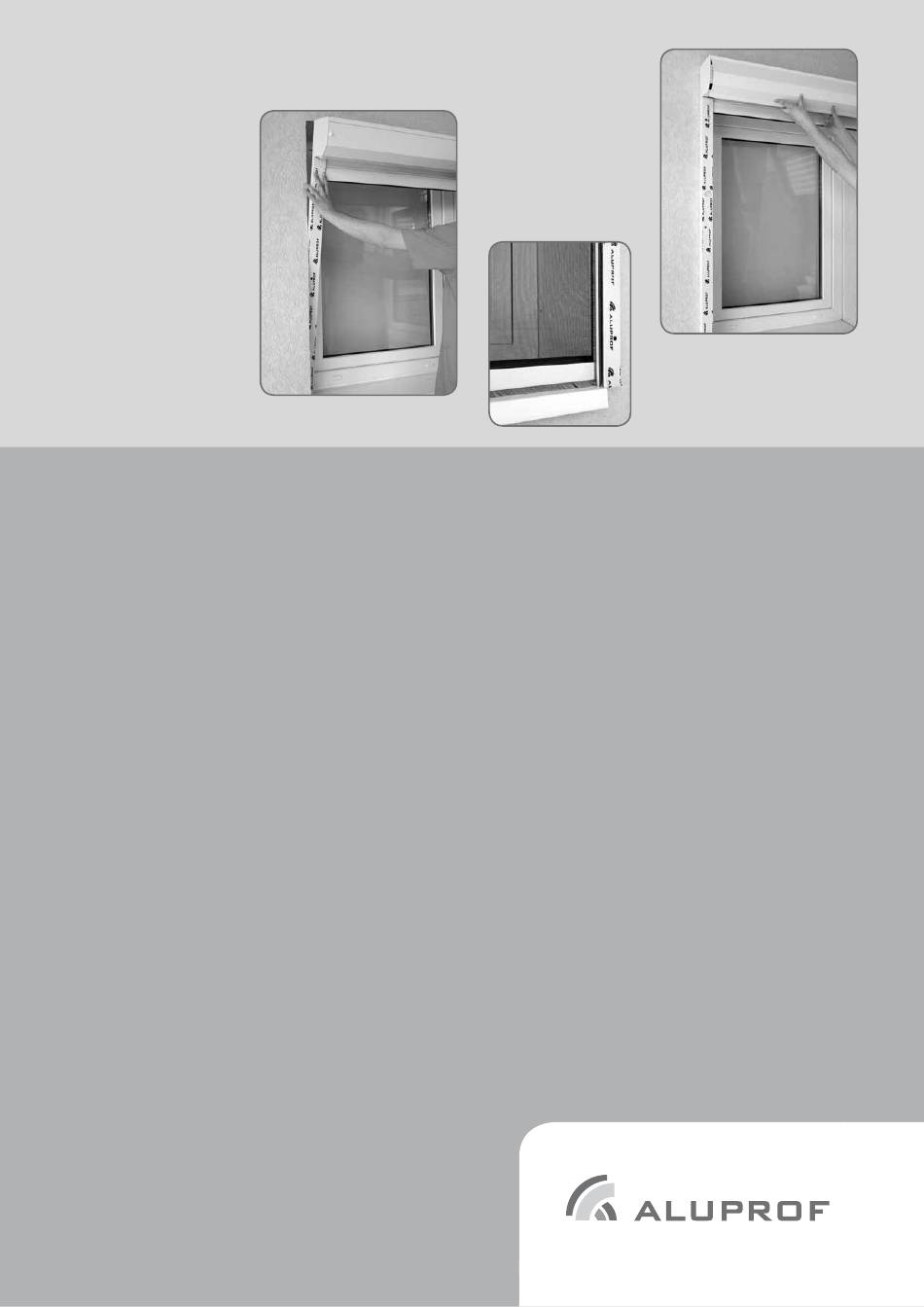

Instruction for montage of outside roller shutters in
ADAPTING system, type SK
and in
ADAPTING system, type SK with MOSKITO.
Instruction for montage
of outside roller shutters in
ADAPTING system, type SK
and in ADAPTING system, type SK with MOSKITO.
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the SK and is the answer not in the manual?

Questions and answers

Summary of Contents for Aluprof SK

  • Page 1 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. - 1 -...
  • Page 2 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. - 2 -...
  • Page 3 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. General recommendations Roller shutter’s assembly can be made only by trained assembly team. Current health and safety laws should be obeyed, particularly regarding safety of electrical equipment and working at heights.
  • Page 4 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. 2. The roller shutter’s unpacking Before the assembly, unpack the goods and check them with respect to the quantitative and qualitative terms.
  • Page 5 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. I ADAPTING ROLLER SHUTTER SYSTEM SK – ASSEMBLY IN RECESS The order of assembly a) Check the dimensions of the construction’s hole [11], [12]. b) Mark the position of the drilling hole for the strap or rope of manual drive (about 17mm above the edge of the guide channel) [13], then drill the hole [14].
  • Page 6 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. d) Unscrew the screws [17], [18] and open the shutter box (base part) [19]. e) Lower the roller shutter’s curtain to the windowsill and screw the shutter box to the basis (on either side) [20]. Pull the strap (rope) through the hole to the inside of a room [21].
  • Page 7 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. g) Pull the joints out [24] and lever up one of the casing’s side with the screwdriver – open the box coiler [25]. Screw the box coiler to the window frame using screws [26]. Hook strap (rope) to the fastener, and simultaneously keep firmly the spring’s cover, then rotate and release the blockade [27].
  • Page 8 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. k) Remove the protective foil from the box [33] and guide channels [34] and from the other elements. Cover the holes in the guide channels [35].
  • Page 9 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. II ADAPTING ROLLER SHUTTER SYSTEM SK – ASSEMBLY ON THE BUILDING WALL The order of assembly. a) Check the dimensions of the construction’s hole [36], [37]. b) Put the guide channel to the basis, vertically [38]. Mark the position of the drilling hole for the strap or rope of manual drive (about 17mm above the edge of the guide channel) [39], then mark the position of the drilling hole for guide channel [40].
  • Page 10 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. d) Insert the rawlbolts into drilled holes [43], next put the guide channel [44] and screw it to the basis [45]. e) Put the shutter box (together with the second guide channel) to the wall [46], place it as in the case of the first guide chan nel, mark the places of drilling, drill the holes, insert the rawlbolts and screw the all to the basis.
  • Page 11 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. g) From the inside of the room, at the outlet of the hole [51] mount the strap (rope) guide [52] by using the screws [53]. h) Pull the joints out [54] and lever up one of the casing’s side with the screwdriver – open the box coiler [55]. Screw the box coiler to the window frame using screws [56]. Hook strap (rope) to the fastener, and simultaneously keep firmly the...
  • Page 12 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. k) Close [60] and screw the shutter box (base part) [61]. Remove the protective foil from the box [62] and guide channels [63] and from the other elements.
  • Page 13 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. III ADAPTING ROLLER SHUTTER SYSTEM SK – ASSEMBLY IN RECESS The order of assembly a) Check the dimensions of the hole construction [65], [66] b) Mark the position of drilling hole for the strap or rope of manual drive (about 17mm above the edge of the guide channel) [67], then drill the hole [68].
  • Page 14 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. d) Unscrew screws [71], [72] and open the shutter box (base part) [73] e) Lower the roller shutter’s curtain to the windowsill and screw the shutter box to basis (on either side) [74]. Pull the strap, (rope) through the hole to the inside of the room [75].
  • Page 15 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. g) Pull the joints out [78] and lever up one of the casing’s side with the screwdriver – open the box coiler [79]. Screw the box coiler to the window frame using screws [26]. Hook strap (rope) to the fastener, and simultaneously keep firmly the spring’s cover, then rotate and release the blockade [27].
  • Page 16 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. k) Close the mosquito net in such position which seal up the space between the endslat and window frame by the (side) brush [87]. Then (at the opposite side of the window) mark the position of mosquito net’s endslat. [88]. Adjust the side lock’s nest to an appropriate height (in each guide channel) and then screw tightly with suitable strength [89], [90].
  • Page 17 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. IV ADAPTING ROLLER SHUTTER SYSTEM SK – ASSEMBLY ON THE BUILDING WALL The order of assembly. a) Check the dimensions of the construction’s hole [95], [96]. b) Put the guide channel to the basis, vertically [97]. Mark the position of the drilling hole for the strap or rope of manual drive (about 17mm above the edge of the guide channel) [98], then mark the position of the drilling hole for guide channel [99].
  • Page 18 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. d) Insert the rawlbolts into drilled holes [102], next put the guide channel [103] and screw it to the basis e) Put the shutter box (together with the second guide channel) to the wall [105], place it as in the case of the first guide channel, mark the places of drilling, drill the holes, insert the rawlbolts and screw the all to the basis.
  • Page 19 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. g) From the inside of the room, at the outlet of the hole [110] mount the strap (rope) guide [111] by using the screws [112]. h) Pull the joints out [113] and lever up one of the casing’s side with the screwdriver – open the box coiler [114]. Screw the box coiler to the window frame using screws [115]. Hook strap (rope) to the fastener, and simultaneously keep firmly the...
  • Page 20 ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. k) Close [119] and screw the shutter box (base part) [120]. Adjust the “location” of the mosquito net’s endslat, by placing the side lock’s nest on the appropriate height (in each guide channel) and then screw tightly with suitable strength [121], [122].
  • Page 21 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. m) Remove the protective foil from the box [124] and guide channels [125] and from the other elements. Cover the holes in the guide channels [126].
  • Page 22 Instruction for montage of outside roller shutters in ADAPTING system, type SK and in ADAPTING system, type SK with MOSKITO. Headquarters; Plant in Bielsko-Biała ul. Warszawska 153, 43-300 Bielsko-Biała, Polska tel. +48 33 81 95 300, fax +48 33 82 20 512 Plant in Opole ul. Gosławicka 3, 45-446 Opole, Polska...
