DM Accessories PROT Assembly And Use Instructions

Bottom Loading Tripod Adapter Assembly and Use Instructions

Description

This adapter is designed to allow the use of a bottom tape loading camcorder with a
larger tripod head, such as a fluid head or other type of professional use tripod, while
still allowing access to the tape. The PROAT also supports mounting additional
accessories through a forward mounting bar.

Contents

Included should be: A thin flat plate, a thicker vertical mount
plate with an alignment pin and thumb screw.
are two short slotted screws and a small set of felt pads. The
user will need a flat head screwdriver for assembly.

Compatibility

The PROT and PROAT models have been tested to work on
these Sony camcorder models:
HDR-HC1
CCD-TRV57
DCR-TRV330
Many other model and brand camcorders are compatible but have not been tested. To
make a compatibility or incompatibility report, please email:
accessories.com.

Handling

When working with this or any other camera or camcorder, be sure to handle them
gently. Camcorders have precise internal components that may be damaged when
handled improperly. Consult the camcorder's manual for details.
While working with the the camcorder at a table or bench, placing it on on a soft, clean
pad or towel is a good idea. Using excessive force may damage parts. If screws or
Parts bind such that they don't turn, stop, back up and check to be sure it is aligned.
PROT and PROAT
HVR-A1
CCD-TRV87
DCR-TRV380
Also included
CCD-TRV17
DCR-TRV230
DCR-TRV480
compat@dm-

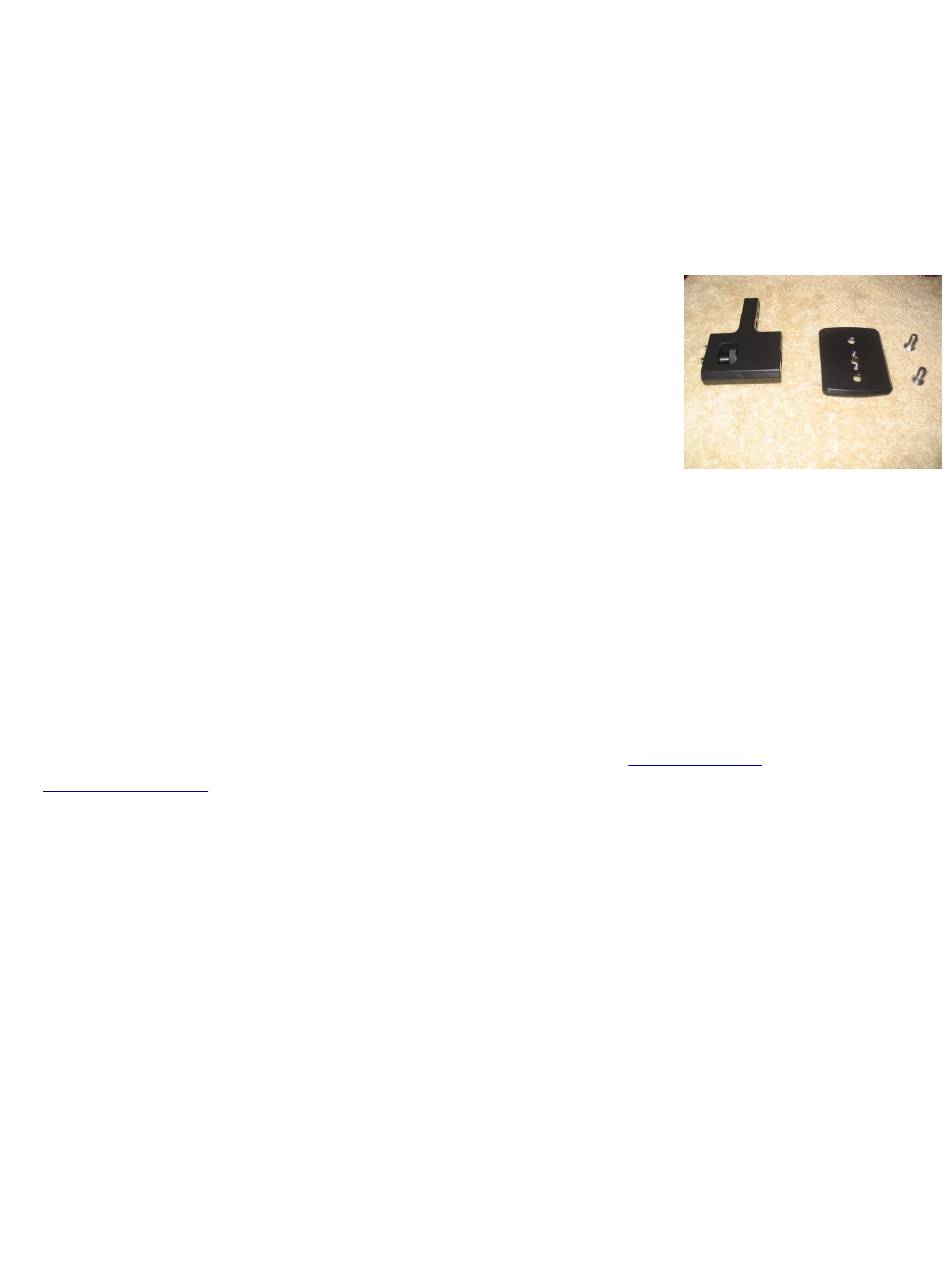

Included Parts
for PROAT
CCD-TRV37
DCR-TRV280
DCR-TRV530
