TP802 Double - TP803 Triple TP804 Single Round Wood Swing IN7046-D 19.01.17.qxp_TP802 Double - TP803 Triple - TP804 Single Round Wood Swing IN7046-D 19.01.17

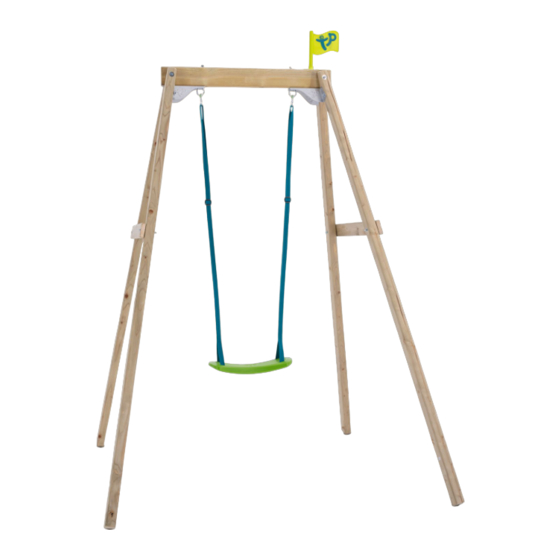

TP804 Knightswood Single Swing Frame
TP802 Knightswood Double Swing Frame
TP803 Knightswood Triple Swing Frame
INSTRUCTIONS FOR SSEMBLY M INTEN NCE ND USE
PLEASE RETAIN FOR FUTURE REFERENCE.
TP804 Knightswood Single Swing Frame
Important!
These instructions must be followed for safe assembly and use. Please retain for future reference.
Important!
Vous devez suivre ces instructions pour que le montage et l'utilisation se fassent en toute sécurité.
Veuillez conserver pour référence ultérieure.
Importante!
Per garantire sicurezza di montaggio ed uso, seguire queste istruzioni e conservarle per futuro riferimento.
Importante!
Debe seguirse estas instrucciones para un armado y uso seguros. Sírvase conservarlas para consultarlas en el futuro.
Wichtig!
Diese Anweisung ist für sicheren Aufbau und Gebrauch zu befolgen. Für künftigen Gebrauch aufbewahren.
Importante!
Para assegurar uma montagem e uma utilização seguras, têm de ser seguidas estas instruções. Guardar para referência futura.
W RNING!
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN
UNDER 36 MONTHS. SMALL PARTS. CHOKING HAZARD.
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN.
ONLY FOR DOMESTIC USE. FOR OUTDOOR USE. ADULT SUPERVISION IS REQUIRED.
THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 3 TO 12 YEARS.
SINGLE SWING FRAME - MAXIMUM COMBINED USER WEIGHT 100KGS
DOUBLE & TRIPLE SWING FRAMES - MAXIMUM COMBINED USER WEIGHT 200KGS
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE USE.
TP802 Knightswood Double Swing Frame
TP803 Knightswood Triple Swing Frame
ssembly
Build
