Nordson nLighten Instruction Sheet

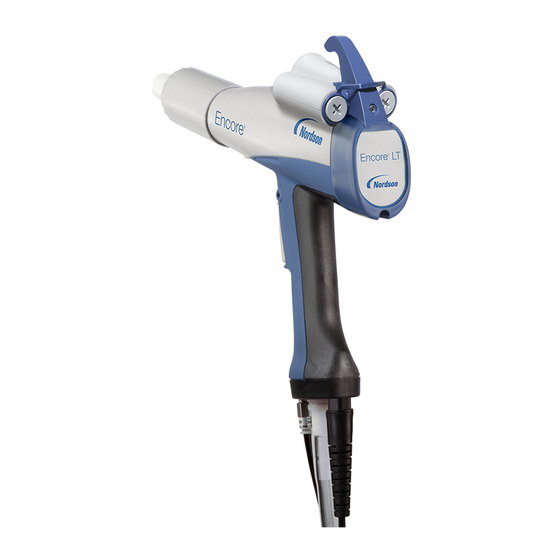

nLighten
Installation

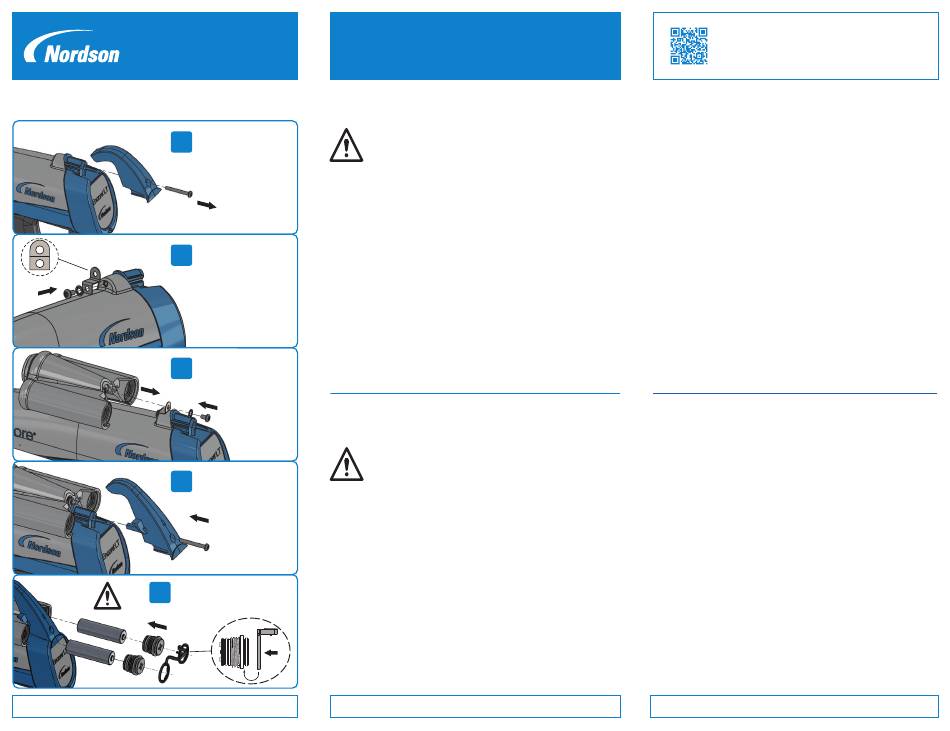

1
2
3
4
Install batteries,
5
-
battery caps and lanyard
+ (assemble lanyard to cap as in detail)
For Assistance, Call Customer Service at 800-433-9319
™
Safety
WARNING:
Remove
Do not stare into the beam of light, may be
existing
harmful to eyes.
hook
Read and follow any safety instructions stated in this
document. Failure to do so may result in damage to
Install new
equipment or injury to operator. Task and equipment
bracket and
specific warnings, cautions, and instructions are
hardware included in this document where appropriate.
Refer to the Safety Section
®
Encore Manual Powder Spray System or Spray Gun
for additional safety information. These can be found
by scanning the QR code above or going to
emanuals.nordson.com
Attach light to
bracket
Battery Installation/Removal
WARNING:
in powder booth or other hazardous areas.
Install new
hook
Use only 1.5 V, size "AA", IEC-LR6 Alkaline batteries.
Replace all batteries at the same time.
Do not mix batteries from different manufacturers, new
with used, or different specifications. Improper battery
installation can cause batteries to explode or leak and
cause personal injury. Observe the polarity during
installation (see
recharge primary batteries.
LED Radiation (RG-2)
of the manual for the
Do not open to change batteries
Installation
step 5 for reference). Do not
Sheet 1 of 2
Part Number 1614474-01
Instruction Sheet
©2018 Nordson Corporation
Original Copyright Date: 2018
Operations
Application Mode
- 33 lumens, max
Squeeze the trigger when ready to spray powder.
nLighten will automatically turn on and remain on
while spraying powder.
LED output will track the KV output of the multiplier.
Inspection Mode
- 65 lumens
Release the trigger when ready to stop spraying
powder. nLighten will remain on for fifteen seconds
and will automatically turn off. If more inspection time
is needed, quickly press and release the trigger to
receive an additional fifteen seconds of inspection
time.
1. Remove spray gun from a hazardous area.
2. Clean the assembly of any coating material
before changing the batteries.
3. Unscrew the battery caps with a flat blade
screwdriver.
4. Remove old batteries and dispose of them
properly.
5. Install the new batteries, inserting the negative
terminal into the housing first (see Installation
illustration, step 5).
6. Install and tighten the battery caps until the
cap bottoms against the housing. Do not
over-tighten.
Battery Disposal
Dispose of all spent batteries according to all local
rules and regulations.
Encore, Nordson, and the Nordson logo are registered trademarks of the Nordson Corporation.
nLighten is a trademark of Nordson Corporation.
Issued: 09/2018
