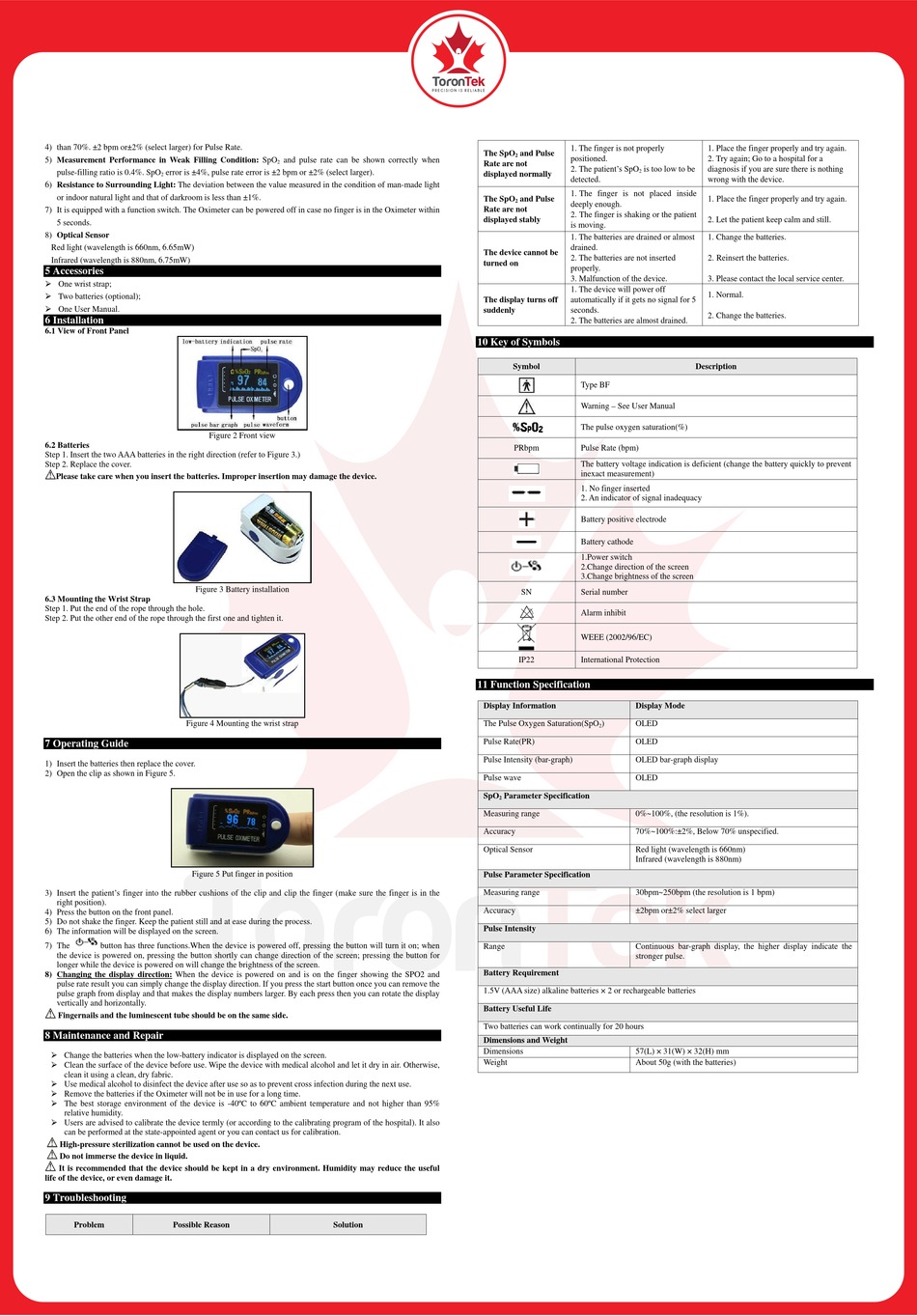

ToronTek G64 User Manual page 2

4) than 70%. ±2 bpm or±2% (select larger) for Pulse Rate.
5) Measurement Performance in Weak Filling Condition: SpO
pulse-filling ratio is 0.4%. SpO error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
2
6) Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light
or indoor natural light and that of darkroom is less than ±1%.
7) It is equipped with a function switch. The Oximeter can be powered off in case no finger is in the Oximeter within
5 seconds.
8) Optical Sensor
Red light (wavelength is 660nm, 6.65mW)
Infrared (wavelength is 880nm, 6.75mW)
5 Accessories
 One wrist strap;
 Two batteries (optional);
 One User Manual.
6 Installation
6.1 View of Front Panel
Figure 2 Front view
6.2 Batteries
Step 1. Insert the two AAA batteries in the right direction (refer to Figure 3.)
Step 2. Replace the cover.
Please take care when you insert the batteries. Improper insertion may damage the device.
Figure 3 Battery installation
6.3 Mounting the Wrist Strap
Step 1. Put the end of the rope through the hole.
Step 2. Put the other end of the rope through the first one and tighten it.
Figure 4 Mounting the wrist strap
7 Operating Guide
1) Insert the batteries then replace the cover.
2) Open the clip as shown in Figure 5.
Figure 5 Put finger in position
3) Insert the patient's finger into the rubber cushions of the clip and clip the finger (make sure the finger is in the
right position).
4) Press the button on the front panel.
5) Do not shake the finger. Keep the patient still and at ease during the process.
6) The information will be displayed on the screen.
7) The button has three functions.When the device is powered off, pressing the button will turn it on; when
the device is powered on, pressing the button shortly can change direction of the screen; pressing the button for
longer while the device is powered on will change the brightness of the screen.
8) Changing the display direction: When the device is powered on and is on the finger showing the SPO2 and
pulse rate result you can simply change the display direction. If you press the start button once you can remove the
pulse graph from display and that makes the display numbers larger. By each press then you can rotate the display
vertically and horizontally.
Fingernails and the luminescent tube should be on the same side.
8 Maintenance and Repair
 Change the batteries when the low-battery indicator is displayed on the screen.
 Clean the surface of the device before use. Wipe the device with medical alcohol and let it dry in air. Otherwise,
clean it using a clean, dry fabric.
 Use medical alcohol to disinfect the device after use so as to prevent cross infection during the next use.
 Remove the batteries if the Oximeter will not be in use for a long time.
 The best storage environment of the device is -40ºC to 60ºC ambient temperature and not higher than 95%
relative humidity.
 Users are advised to calibrate the device termly (or according to the calibrating program of the hospital). It also
can be performed at the state-appointed agent or you can contact us for calibration.
High-pressure sterilization cannot be used on the device.
Do not immerse the device in liquid.
It is recommended that the device should be kept in a dry environment. Humidity may reduce the useful
life of the device, or even damage it.
9 Troubleshooting
Problem Possible Reason
and pulse rate can be shown correctly when
2
Solution
1. The finger is not properly
The SpO and Pulse
2
positioned.
Rate are not
2. The patient's SpO is too low to be
2
displayed normally
detected.
1. The finger is not placed inside
The SpO and Pulse
2
deeply enough.
Rate are not
2. The finger is shaking or the patient
displayed stably
is moving.
1. The batteries are drained or almost
drained.
The device cannot be
2. The batteries are not inserted
turned on
properly.
3. Malfunction of the device.
1. The device will power off
The display turns off automatically if it gets no signal for 5
suddenly seconds.
2. The batteries are almost drained.
10 Key of Symbols
Symbol
Type BF
Warning – See User Manual
The pulse oxygen saturation(%)
PRbpm Pulse Rate (bpm)
The battery voltage indication is deficient (change the battery quickly to prevent
inexact measurement)
1. No finger inserted
2. An indicator of signal inadequacy
Battery positive electrode
Battery cathode
1.Power switch
2.Change direction of the screen
3.Change brightness of the screen
SN Serial number
Alarm inhibit
WEEE (2002/96/EC)
IP22 International Protection
11 Function Specification
Display Information Display Mode
The Pulse Oxygen Saturation(SpO ) OLED
2
Pulse Rate(PR) OLED
Pulse Intensity (bar-graph) OLED bar-graph display
Pulse wave OLED
SpO Parameter Specification
2
Measuring range 0%~100%, (the resolution is 1%).
Accuracy 70%~100%:±2%, Below 70% unspecified.
Optical Sensor Red light (wavelength is 660nm)
Infrared (wavelength is 880nm)
Pulse Parameter Specification
Measuring range 30bpm~250bpm (the resolution is 1 bpm)
Accuracy ±2bpm or±2% select larger
Pulse Intensity
Range Continuous bar-graph display, the higher display indicate the
stronger pulse.
Battery Requirement
1.5V (AAA size) alkaline batteries × 2 or rechargeable batteries
Battery Useful Life
Two batteries can work continually for 20 hours
Dimensions and Weight
Dimensions 57(L) × 31(W) × 32(H) mm
Weight About 50g (with the batteries)
1. Place the finger properly and try again.
2. Try again; Go to a hospital for a
diagnosis if you are sure there is nothing
wrong with the device.
1. Place the finger properly and try again.
2. Let the patient keep calm and still.
1. Change the batteries.
2. Reinsert the batteries.
3. Please contact the local service center.
1. Normal.
2. Change the batteries.
Description
