Summary of Contents for Seeburg GL16 dp 1000
- Page 1 User Manual GL16 dp 1000 Version 3.3 18.05.2020...
-
Page 2: Table Of Contents
GL16 dp 1000 1 Contents Contents Contents .......................... 2 Foreword .......................... 3 Safety instructions ......................4 Connectors/Indicators ....................6 Connection Panel ........................6 Connectors ..........................7 Controls ........................... 8 Status indication ........................8 Operation ......................... 9 Starting up..........................9 Selecting a bank ........................9 Setting level .......................... -
Page 3: Foreword

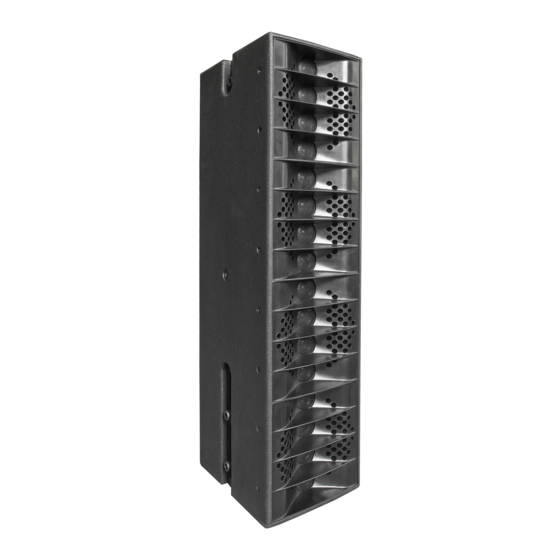

It features digital amplifier electronics with 2x 500 Watt power @ 4 ohms (AES) and a DSP controller. The GL16 dp 1000 is available in the i version (7° vertical coverage) and in the c version (30° vertical coverage). Various pre-configured presets and volume settings are available for selection. -
Page 4: Safety Instructions
GL16 dp 1000 3 Safety instructions Safety instructions Acoustic Even a low input level can result in a sound pressure level at the loudspeaker which can be damaging to your hearing. Do not remain in close proximity to the loudspeaker when it is being operated. Use hearing protection. - Page 5 GL16 dp 1000 3 Safety instructions If the loudspeaker is connected to a power source in which the volt- age is too high, a protective mechanism is triggered which reliably safeguards the amplifier module and DSP. Once triggered, the pro- tection must be renewed by a qualified service technician.
-
Page 6: Connectors/Indicators
GL16 dp 1000 4 Connectors/Indicators Connectors/Indicators 4.1 Connection Panel XLR connectors (1) PowerCon grey (3) PowerCon blue (2) -
Page 7: Connectors
4.2 Connectors XLR connectors (1) The GL16 dp 1000 should be connected with a standard symmetrically wired XLR cable. To con- nect the input signal to further devices, use the male XLR Loop thru connector. To obtain full power performance from the system, the signal source should be able to provide a minimum of 6 dBu distortion free output voltage. -
Page 8: Controls
GL16 dp 1000 4 Connectors/Indicators 4.3 Controls Mode button: Switch between the modes Status / Level and Presets. Set button: Set various values and Mute on/off. 4.4 Status indication Mute LED: Lights red when the system is muted (press the Set button in Status Mode), or in technically critical conditions. -
Page 9: Operation
GL16 dp 1000 5 Operation Operation 5.1 Starting up When the system is switched on, it retains the settings from the previous usage. This also applies to the Bank selection. The system is then in the Status Mode. If the red Mute LED is lit as a result of the previous setting, no signal will be passed. -
Page 10: Setting Level
5.4.1 Preset Bank 1 – Compatibility Mode This bank contains a Compatibility Mode. The presets are acoustically compatible with GL16 dp 1000 systems that are not fitted with the DPLM-DSP controller. Flat: Preset for single application without any subwoofer. -Low: Preset with a level reduction of the low-mid range. -
Page 11: Preset Bank 2 - Default Settings
GL16 dp 1000 and the GL system connected to the parallel output are operating in high pass mode. 5.4.2 Preset Bank 2 – Default Settings This bank contains the recommended settings for GL16 dp 1000 systems fitted with the DPLM- DSP-controller. Flat: Preset for single application without any subwoofer. -
Page 12: Reprogramming Of Dp-Speakers With Preset Audio Files
3. Make sure your computer's volume is set to 100%. 4. Load the ".wav" file received from SEEBURG acoustic line into a music player. 5. Press the play button. 6. After a successful programming operation, the Mute LED turns off. -
Page 13: Technical Specifications
GL16 dp 1000 6 Technical specifications Technical specifications 4 x 6,5" Nd / 16 x 1" Nd Tweeter Speaker Components Description Two-Way Line Array System Amp Power 2 x 500 W AES / 110-230 V biamped Rated Current 0,85 A @ 230 V >... -
Page 14: Declaration Of Conformity
DIN EN 60065 DIN EN 55103-1:1996, classes E1 to E4 DIN EN 55103-2:1996, classes E1 to E4 Declared by: Winfried Seeburg, SEEBURG acoustic line GmbH Place and date: Senden, 01.01.2010 Legally binding sign: ____________________________________________ The attachments constitute part of this declaration. This declaration certifies conformity with the listed guidelines, but does not guarantee any product characteristics. - Page 15 Benutzerhandbuch / User Manual Irrtum bei Beschreibung sowie technische Änderungen vorbehalten. Alle SEEBURG acoustic line Produkte sind nur für den gewerblichen Einsatz bestimmt. All specifications are current at the time of publishing but are subject to change. SEEBURG acoustic line...
