EN
Operating instructions
Dear customer,

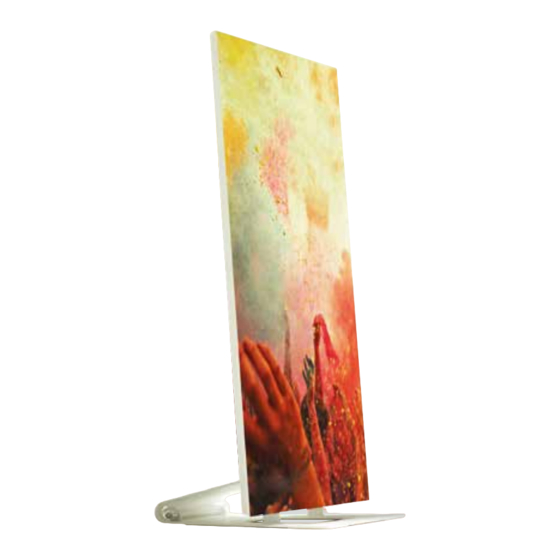

Congratulations on your new infra evolution infrared heating panel. You now own an ecological and economic heater and make an
important contribution to the protection of our environment. The infra evolution heating system is maintenance-free, easy to install and
suitable for a wide range of uses. Please read these operating instructions carefully before taking the infrared heating system into opera-
tion to ensure your safety and to make sure that you can enjoy your infrared panel for a long time.
PLEASE NOTE: Your new infrared heating panel is a radiant heater. It heats the solid structures in the room, which in turn give off heat
to the immediate surroundings. The result is a pleasant and comfortable indoor climate that you will not want to do without in the future.
Depending on the environment, the change of the room climate can take a few hours, or even a few days after taking your infrared
panel into operation for the first time. Once your furniture, walls, ceiling and floors have reached the desired room temperature, the ope-
rating time of the panel is reduced to a minimum. Make sure to use your infrared heating system only in combination with a high-quality
room thermostat. This will ensure optimum switching cycles, and you can enjoy the constant, pleasant warmth to the full. If you have any
questions, please contact your specialist dealer, who will be happy to advise you.
1. Scope of supply
Heating panel, EQUI FIX wall mount bracket with fittings
PLEASE NOTE: Follow the applicable installation guidelines, directives and standards of your country. Your electrical company will be
happy to provide you with information.
Designa-
H x W
tion
(cm)
Konvex 1
90 x 25
Konvex 2
62 x 37
Konvex 3
62 x 50
Konvex 4
118 x 37
Konvex 5
150 x 37
Konvex 6
100 x 62
Konvex 7
150 x 50
Konvex 8
150 x 62
Konvex 9
125 x 75
Konvex 11
150 x 75
Konvex 13
180 x 75
All Konvex models are also available in Extrem-line
design. IP Code IP67 with 4 m black rubber cord.
Example of model designation: Konvex 13X
Watt
Weight
at 230V
(kg)
225
4
230
5
310
6
440
8
550
10
620
11
750
14
900
16
940
16
1125
19
1350
23
Advertisement
Table of Contents
Summary of Contents for Infra Evolution Konvex Series
- Page 1 Dear customer, Congratulations on your new infra evolution infrared heating panel. You now own an ecological and economic heater and make an important contribution to the protection of our environment. The infra evolution heating system is maintenance-free, easy to install and suitable for a wide range of uses.
- Page 2 2. Safety instructions • The encased design of the heating panels meets the protection requirements for IP54, IP65 (protection against water jets) or, upon special request, also for IP67 (protection against immersion up to 1 m maximum for 30 minutes maximum). If the heating panel in protection class IP54, IP65 or IP67 is used, the connection to the mains must be made by a specialist installation company in accordance with the relevant guidelines, directives and standards of your country (wall socket in IP54, IP65 design;...
- Page 3 8. Explanation of symbols EC Declaration of Conformity Infra Evolution GmbH declares that all infra evolution infrared heating devices meet the provisions of low-voltage directive 2014/30/EC. TÜV certified safety Proof of uniform production of all infra evolution infrared heaters according to consumer protection regulations.
- Page 4 /infraevolution Note: The information in this manual is subject to change without notice and is in no way binding on Infra Evolution GmbH. The equip- ment listed in this manual is supplied in accordance with the conditions of the right of use. With the exception of private use, this manual may not be reproduced or used in any way without the written permission of Infra Evolution GmbH.
