Model #: ILG-904

Advertisement

loading

Related Manuals for iLiving ILG-904

Summary of Contents for iLiving ILG-904

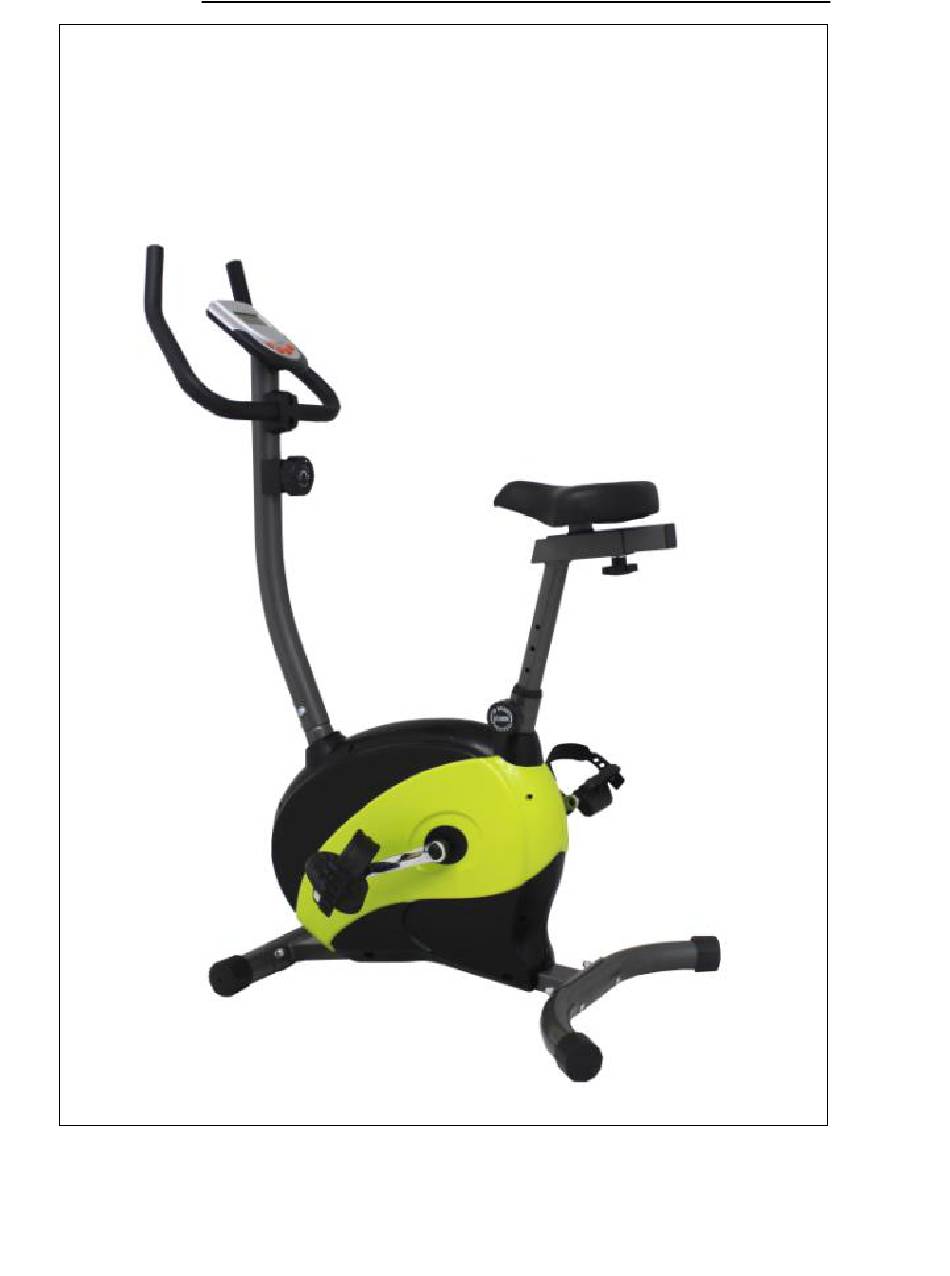

  • Page 1 Model #: ILG-904...
  • Page 2 Product parts picture & Schema ●...
  • Page 3 Assemble Steps Figure ● Take out screws, nuts, washeres of rear tube. Assemble the rear tube. Put on the screw. Put on the washer. Put on the nut. Use allen key to lock. Take out screws, nuts, washeres of Rear tube is done. front tube.
  • Page 4 Assemble Steps Figure ● Assemble the front tube. Put on the screw. Put on the washer. Put on the nut. Front tube is done. Use allen key to lock. Use allen key to take out the After take out the screw, screw.
  • Page 5 Assemble Steps Figure ● After assemble the front tube, Assemble the wire of meter. Assemble trim. After assemble trim, Assemble the handle bar. Put on the screw. After assemble the screw, Use allen key to lock.
  • Page 6 Assemble Steps Figure ● Take out the screw from meter. Assemble the wire of meter. Lock. the screw. Assembled the meter. Take out the screw . Use tool to lock the screw. After take out the screw . Assemble the handle bar.
  • Page 7 Assemble Steps Figure ● Put on the screw. Use allen key to lock. Put on the cover. After put on the cover, Assemble the tube of cushion. Take out the knob . Assemble the the knob . After assemble the the knob,...
  • Page 8 Assemble Steps Figure ● After take out the screw from cushion. Take out the screw from cushion. Assemble the cushion. Put on the washer. Put on the nut. Tak out the washer. Assemble the frame of cushion. Put on the washer.
  • Page 9 Assemble Steps Figure ● The knob is done. Put on the knob and lock . Assemble the pedal. Use wrench to lock the pedal. Assemble the ribbon on the The pedal is done. pedal.

  • Page 10: Functions And Operations

    ●Exercise Computer Instruction FUNCTIONS AND OPERATIONS: MODE/RESET – Push down to select functions. – Press to reset time, distance and calories. 1. AUTO ON/OFF: The monitor will wake up automatically if stop exercising for over 4 minutes, monitor will turn off and all function values to zero. 2.

  • Page 11: Specifications

    ●Exercise Computer Instruction CAUTION: Operating temperature:0℃-+50℃ / Storage temperature: -10℃-+60℃ NOTE： 1. If the display is illegible or only partial segments appear, remove batteries and wait 15 seconds before reinstalling. 2. Pull off the battery cover and place two of rd-4 batteries into battery housing on back of monitor, please refer to below illustrations.
