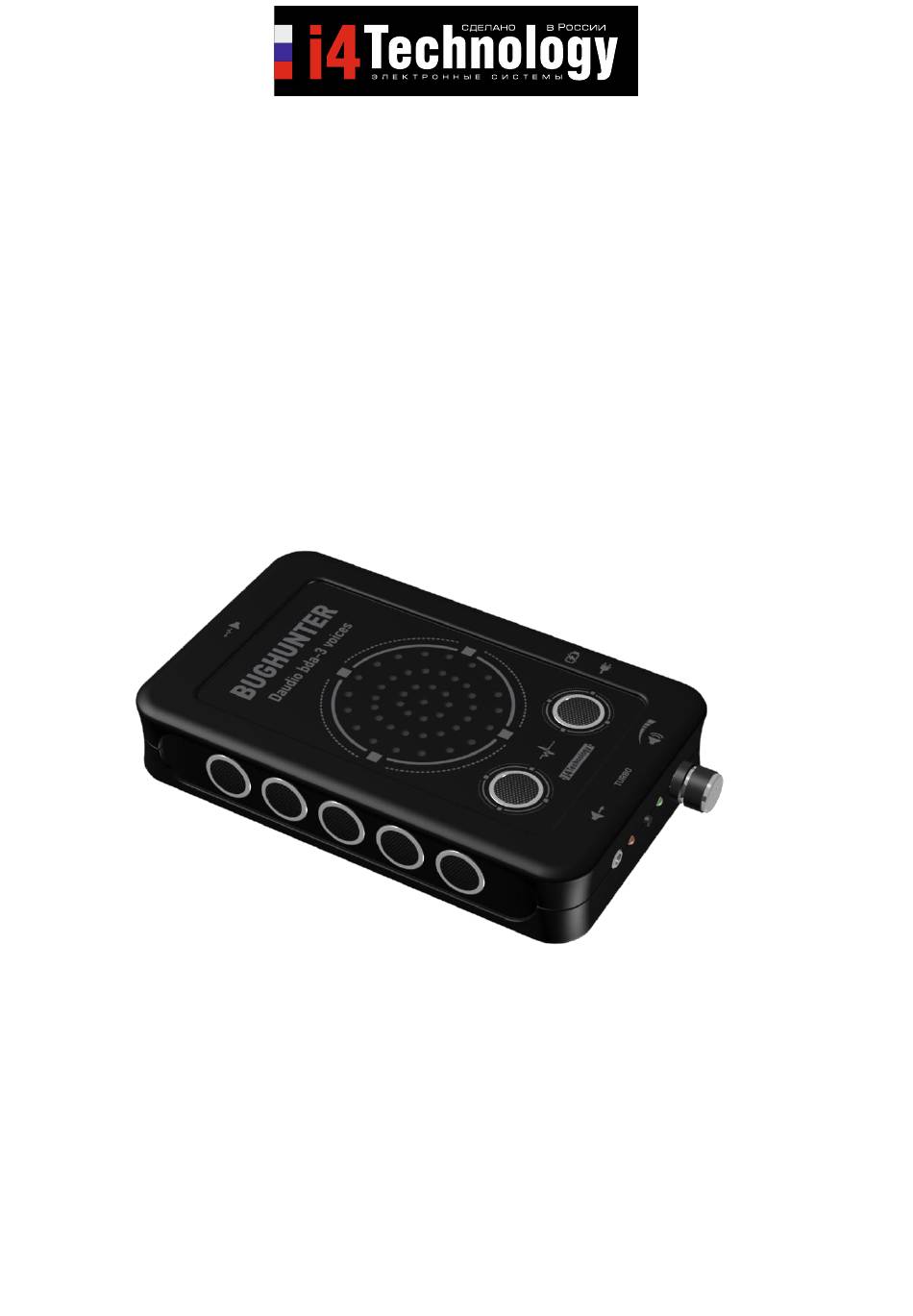

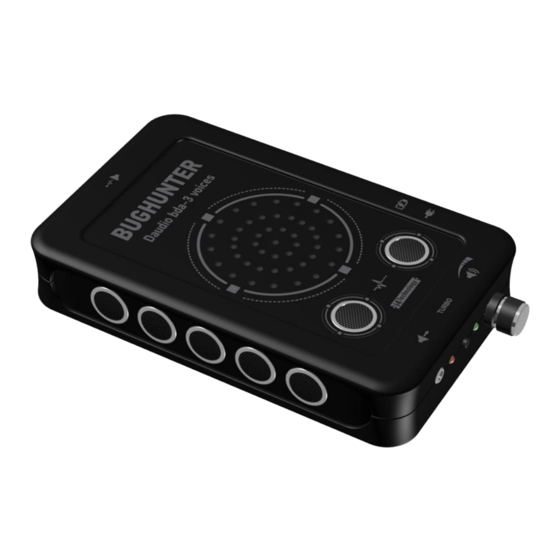

- Page 1 I4-technology LLC Microphones, bugs and tape recorders jammer "BugHunter DAudio bda-3 Voices" with five UV- transducers on the side, two UV- transducers on the top and an acoustic silencer. User manual...
-
Page 2: Table Of Contents
6. Manufacturer warranty......................... The User Manual includes key features, operating instructions (intended use, maintenance, repair, storage and transportation) Microphones, bugs and tape recorders jammer "BugHunter DAudio bda-3 Voices" with seven UV- transducers and an acoustic silencer (hereinafter - device). The device is designed to protect conversation areas from eavesdropping. Device blocks wireless microphones, tape recorders, wired microphones and most of professional digital tape recorders including tape recorders installed in mobile phones (smart phones). -
Page 3: Device Components
Figure 1. 1.2.2. Device characteristics: - Dimensions, mm................170х95х31 - Weight, including batteries................0,3 - Internal source of power supply, V ............12 - External source of power supply, V .............15 - Current consumption, A ………………………………………………………..0,35 - Effective (maximum) range of jamming the eavesdropping devices........7 - Effective (optimal) range of jamming the eavesdropping devices, ..........2 - Sound pressure level at 1 m distance from the device, dB ......120 - Installed batteries capacity, mAh..........1200... - Page 4 3 4 5 6 Figure 2. 1 – ultrasonic transducers 2 – jack to connect an external acoustic system (audio output) (аудио выход) 3 – turbo mode indicator 4 – button of turbo mode activation 5 – power switch ON indicator 6 –...
-
Page 5: Intended Use
1.4.2. The device runs under command of micro controller with embedded software. 1.4.3. Device’s transducers emit special high frequency sound waves (pattern of the sound is determined by software in accordance with the specially developed algorithm) with the sound pressure reaching 120 dB at 1 m distance from the transducers. - Page 6 – Green LED of the switch indicator (item 5) is lit constantly - device is running normally, the batteries charge is sufficient. – LED of the switch indicator (item 5) blinks 1 time per second - device is running, you need to connect an external power supply (battery charger);...
-
Page 7: Maintenance
- Shock acceleration peak value is up to 147 m/s2 (15 g), with a duration of shock acceleration 10 ... 15 ms The requirements on warning signs must be strictly obeyed when loading and transporting. 5. ACCEPTANCE CERTIFICATE. Microphones, bugs and tape recorders jammer "BugHunter DAudio bda-3 Voices" with seven UV- transducers and acoustic silencer. Serial number ____________________ Manufacture date ____________________ Manufactured and accepted in accordance with the applicable technical documentation and validated. - Page 8 Manufacturer has the right to amend and change device characteristics to improve it’s consumer properties Manufacturer's technical support: www.i4technology.ru © Copyright I4 technologey LLC, 2005-2017. All rights reserved. Questions concerning the exchange after-sales service should be applied to the distributor that completed a sale.
- Page 9 Warranty Certificate Product: Microphones, bugs and tape recorders jammer "BugHunter DAudio bda-3 Voices" with seven UV- transducers and acoustic silencer. Serial number _________________________________________________________________________ Manufacture date ________________________________________________________________________ Quality Department stamp ____________________________________________________________________ Date of purchase _____________________________________________________________________________ Seller’s signature and stamp _________________________________________________________________ I do not have any claim against quality of the device, its package and technical state _____________________...
