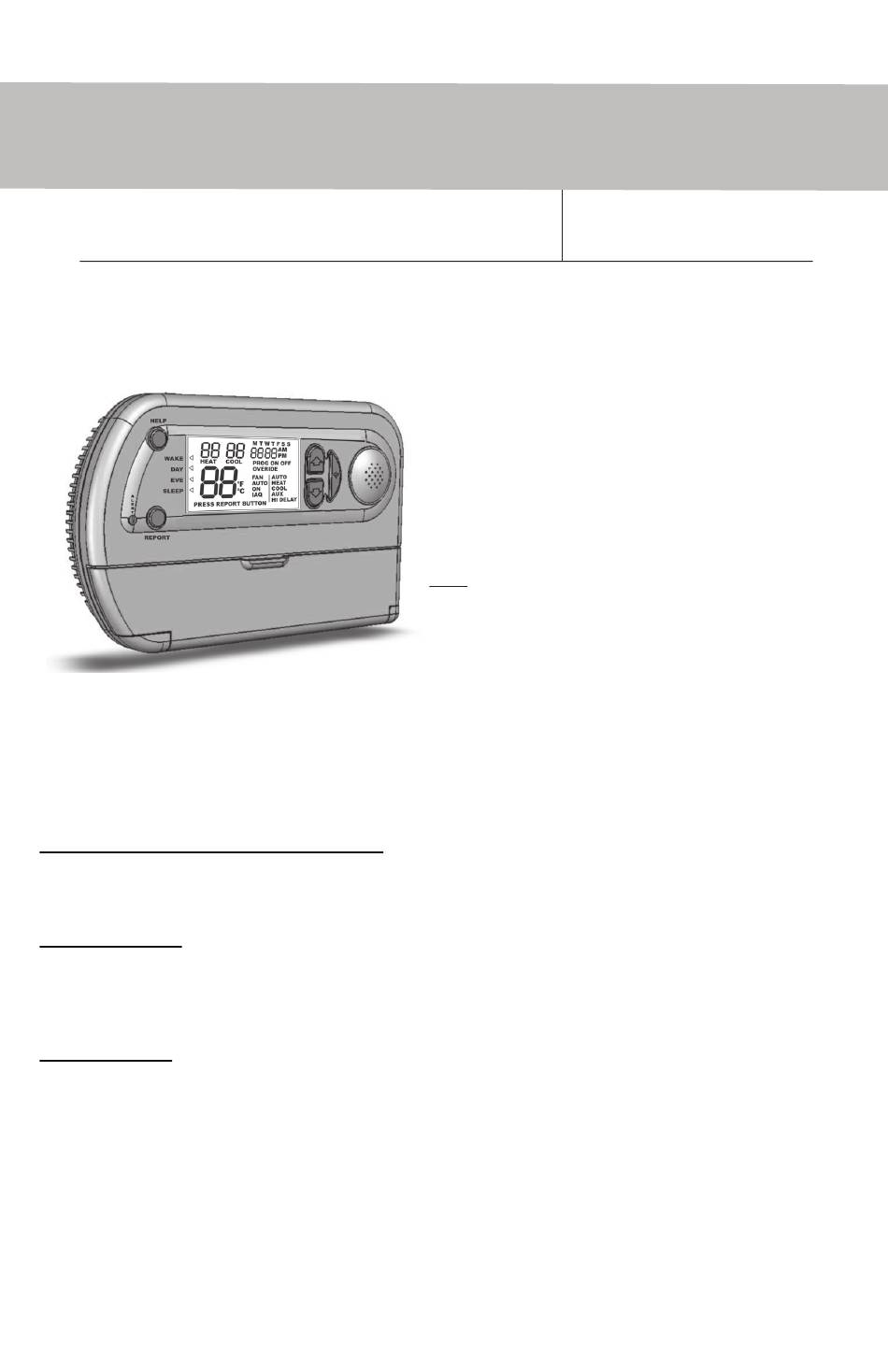

Talking Thermostat™
Model VT3000
User's Guide
SmartWay Solutions, Inc.
US Patent 6,608,560 & 7,162,253
Model VT3000, a universal thermostat for use on most Gas or Electric, Conventional or Heat Pump /
Dual Fuel (Hybrid) Systems including:
The VT3000 is a battery powered digital thermostat for controlling single and multi-stage heating and
cooling systems. Unique audio playback assists user in setting up and maintaining precise indoor
temperature management.
FEATURES
Heating & Cooling System Compatibility
Operates on 1 or 2 stage gas, oil or electric heating systems; 1 or 2 stage cooling systems; or 1 or 2
stage heat pump systems with auxiliary gas (dual fuel), oil or electric heating.
Audio Capability
Audio playback assists user in setting Day / Time and Programmable Operation; and reporting Indoor
Temperature, Temperature Settings, Alert Conditions and Service Company's name & phone
number.
Alert Messages
When an Alert Condition (Check Filter, Call For Service, Low Batteries or UV Light) occurs, the red
light on the case flashes, and the specific Alert Condition & PRESS REPORT BUTTON messages
appear on the display screen. When the REPORT button is pressed an audio message plays back
the exact Alert Condition.
For Quick Set-Up
go to Page 14
Single Stage Heat / Single Stage Cool
Single Stage Heat / Two Stage Cool
Two Stage Heat / Single Stage Cool
Two Stage Heat / Two Stage Cool
Three Stage Heat / Two Stage Cool
Note: Operates on Heat Pump/Dual Fuel Systems
with 1 or 2 Stage Compressors & Auxiliary Heat
(2H/2C and 3H/2C)
1
1
(1H / 1C)
(1H / 2C)
(2H / 1C)
(2H / 2C)
(3H / 2C)
