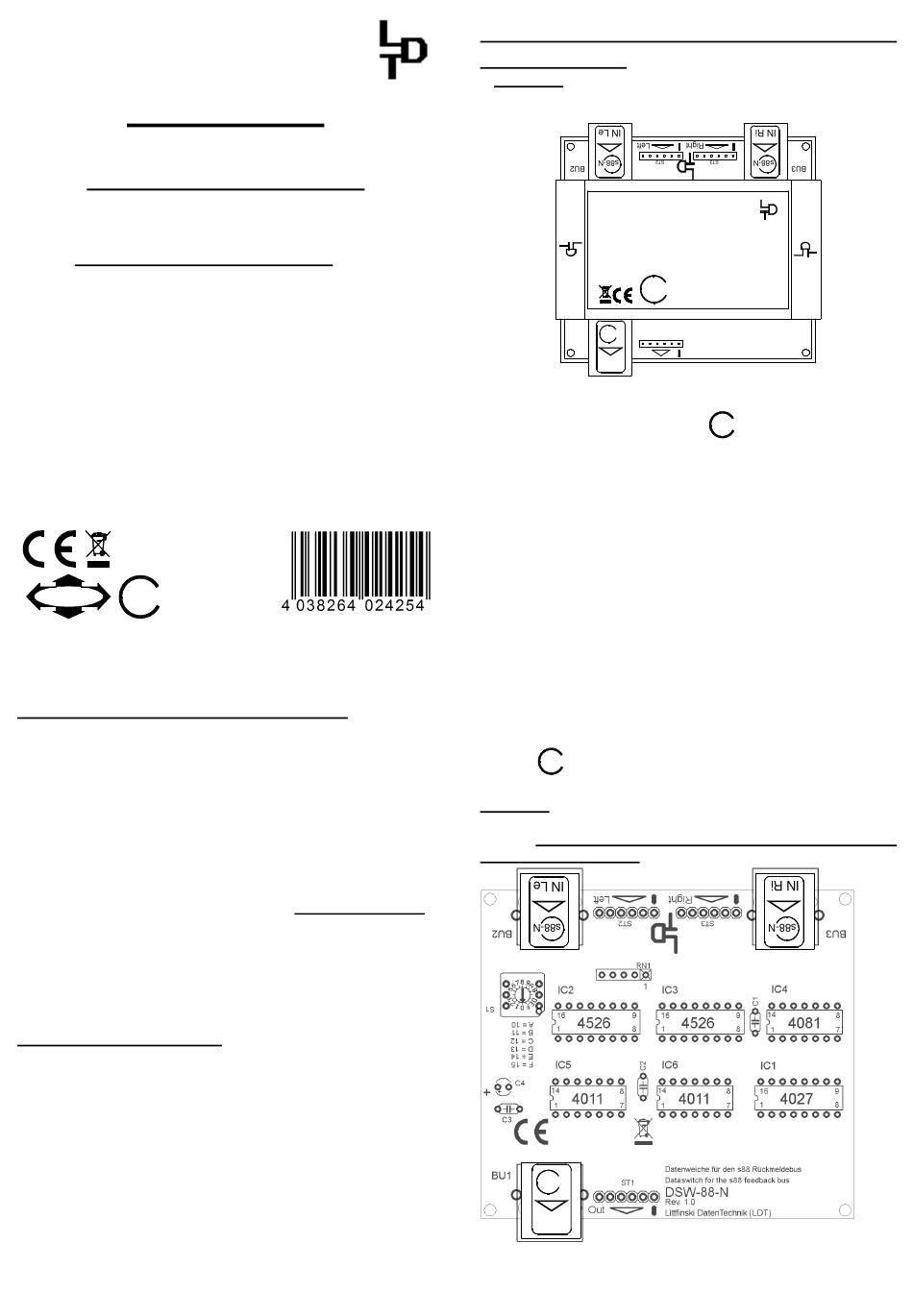

LDT Digital Professional Series Operating Instruction

L D T
ittfinski aten echnik (
Operating Instruction
Data switch
from the Digital-Professional-Series !
DSW-88-N-G
>> finished module in a case <<
suitable for the s88 feedback bus
The data switch DSW-88-N enables to ramify the
s88-feedback line.
⇒ for s88-standard connections and s88-N
(
with 6-poles s88-pinbars as well as RJ-45 sockets and
suitable for 5 and 12V bus voltage).
⇒ suitable for the digital control:
Control Unit, Central Station 1, Intellibox, TWIN-CENTER,
HSI-88(-USB), EasyControl, ECoS, DiCoStation.
This product is not a toy! Not suitable for children under 14 years of age! The kit
contains small parts, which should be kept away from children under 3 years of age!
Improper use will imply danger or injuring due to sharp edges and tips! Please store
this instruction carefully.
s88-N
Multi-Digital
Introduction / Safety Information:
You have purchased the data switch DSW-88-N for your model
railway. The DSW-88-N is a high quality product that is supplied
within the assortment of Littfinski DatenTechnik (LDT).
We are wishing you having a good time using this product.
The data switch DSW-88-N from the
can operate on your digital control without any problems.
The DSW-88-N is suitable for the application on any digital
control unit which supports the s88 feedback bus
The finished modules in a case come with 24 month warranty.
• Please read the following instructions carefully. Warranty will
expire due to damages caused by disregarding the operating
instructions. LDT will also not be liable for any consequential
damage caused by improper use or installation.
General description:
The s88-feedback bus is built up as a continuous line with all
feedback modules behind each other. They are building one line.
This feature has its disadvantages on some model railway
layouts. If the digital command station is positioned at the center
of a model railway layout the feedback line can only be directed
to the right or left hand side and has then to be re-directed from
the left or right end via the layout middle into the opposite layout
part.
The data switch DSW-88-N gives you the opportunity to ramify
the s88 feedback bus at any position on the track.
LDT
)
040113
Part-No.:
Digital-Professional-Series
Connecting the DSW-88-N to the digital
model railway:
• Attention: Before starting the installation switch-off the
drive voltage by pushing the stop button or disconnect the
main supply from all transformers.
Digital-Profi werden!
Datenweiche
DSW-88-N
Datenweiche für den s88-Rückmeldebus.
s88-N
BU1
s88-N
OUT
OUT
The data switch DSW-88-N contains three 6-poles pin-bars for
the s88-standard connection and as well three RJ-45 sockets
for a bus connection according to
pin-bars and sockets marked with OUT and IN.
OUT indicates the connection in direction to the command
station or interface. IN indicates the connection to the next
following feedback module within the s88-bus line.
Command stations and interfaces are always equipped with an
s88-input for a s88-standard connection.
For the s88-standard connection is an interference protected
twisted s88-bus cable with original s88-bus plugs available.
The plugs of the s88-bus cable are correct attached onto the
6-poles pin-bar of the data switch DSW-88-N if the white
single wire corresponds with the white marking on the pc-
board next to the pin-bar. The direction of the cable has to be
show directly away from the data switch.
If you use feedback modules with a ribbon-cable the plug has to
be inserted that way that the cable will point away from the
data switch.
Additionally attend to the position of the plugs on the 6-poles
pin-bars. No offset will be acceptable.
s88-N
For the s88-bus connection we offer a screened blue
patch-cable with RJ-45 plugs.
Attention: Command stations with PC-network connection
(e.g. Central Station 1 and ECoS) contain as well a RJ-45
socket. It is not acceptable to connect the DSW-88-N to the
RJ-45 network sockets.
s88-N
OUT
Littfinski DatenTechnik (LDT)
www.ldt-infocenter.com
Datenweiche für den s88 Rückmeldebus
Dataswitch for the s88 feedback bus
ST1
DSW-88-N
Rev. 1.0
Littfinski DatenTechnik (LDT)
s88-N
.
At the DSW-88-N are
