Summary of Contents for Grand Stands ACE-15

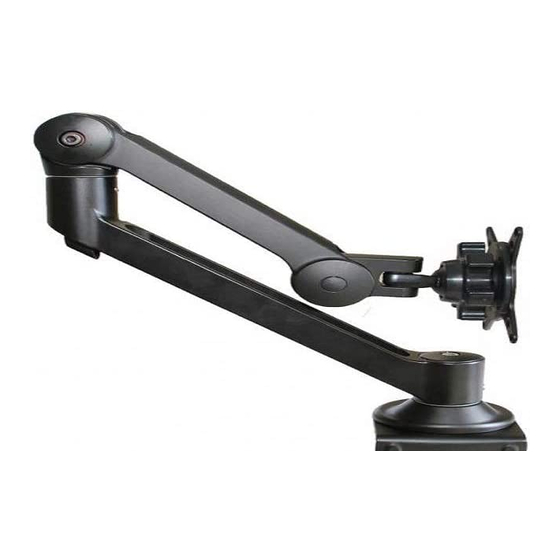

- Page 1 ACE-15 MONITOR ARM 1946 S. Myrtle Ave, Suite B Monrovia, CA 91016 +1-626-294-1777 Phone customerservice@grandstands.com www.grandstands.com...
- Page 2 Please Note! Please pay careful attention to all instructions for mounting and adjusting the 5 friction joints: Height Control Tilt Control Step 8: Swivel Friction Adjustment For Horizontal Rotation Rear Pivot Center Pivot Front Pivot The ACE monitor arm can support monitors, tablets, writing trays, virtually anything that needs 3D adjustability across a wide range of space.
-
Page 3: Product Dimension
Maximum Extension From Post: 23.31” Depth from Post (Closed): 0” Tilt adjustment: 15° Display Pan Swing - Side to Side: 180” VESA Compatibility: 75x75mm/100x100mm Height Range : 15” Weight Capacity : ACE-15 0 – 15 LB Product Dimension 3.94" 9.84" 9.05" 4.41"... -
Page 4: Supplied Parts
Supplied Parts Step 5: Tilt Friction Adjustment 360° Clamp upper section Clamp lower section : y 1 Monitor arm Cable guide-mounting screw Flat head hex socket M6*14 : y 1 : y 4 Step 6: Monitor Weight Friction Adjustment The ACE monitor arm uses a novel one-way friction device to hold the weight of the monitor(s). -
Page 5: Step 4: Monitor Mount
Step 1: Clamp Mount (Option A) Step 4: Monitor mount Allow monitor to mate Insert (2) Monitor Mounting Screws half and rest with monitor way into the monitors TOP VESA holes. hub slots. Insert the 2 remaining Monitor Mounting Screws to the monitors bottom VESA holes. - Page 6 Step 2: Grommet Mount (Option B) Step 3: Choose 180°or 360°stop at rear pivot 180° Phillips screwdriver 360° Page 5 Page 6...
