Solid Apollo LEDWizard Product Manual

Tablet and smartphone led control system w/ optional remote
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

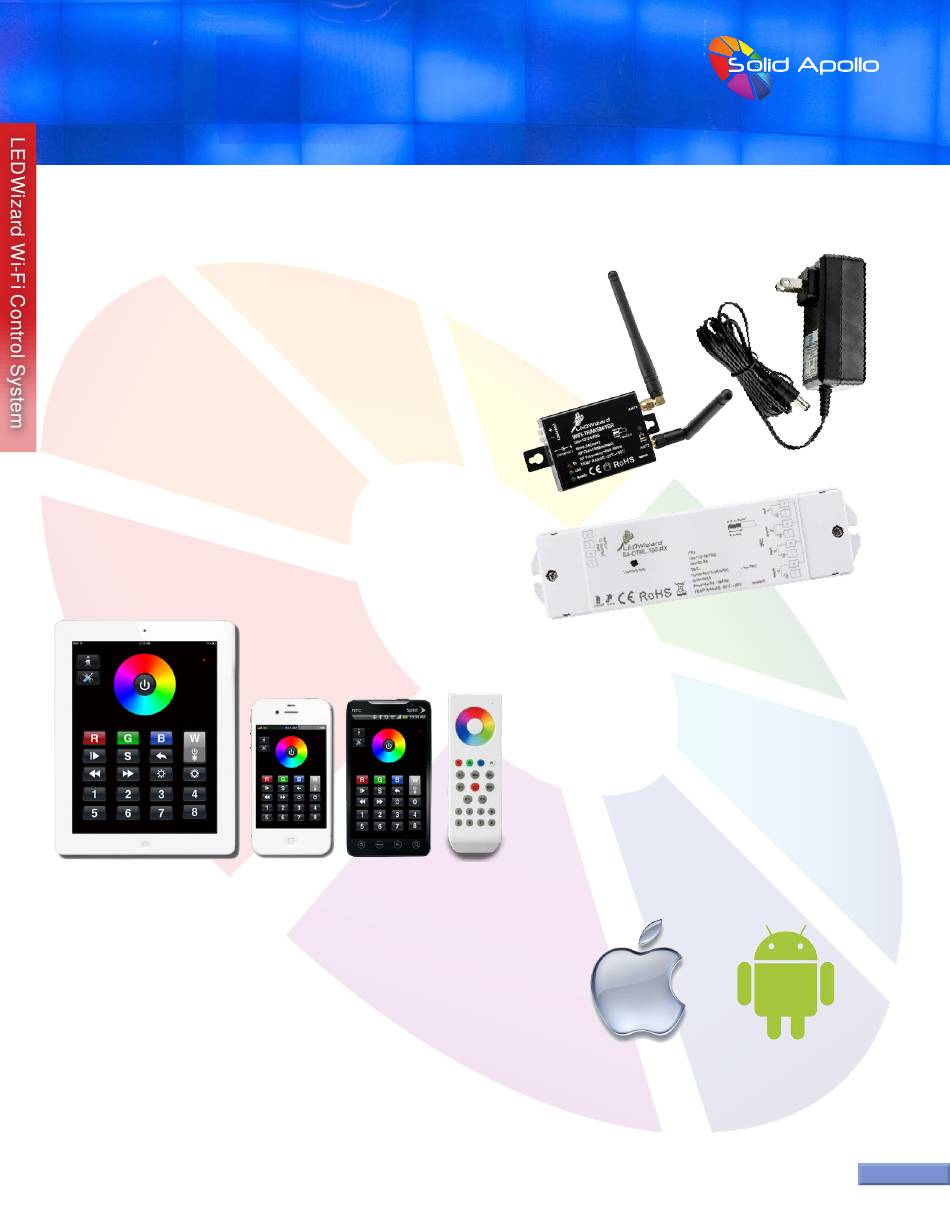

PRODUCT MANUAL
LEDWizard Tablet and Smartphone LED
Control System w/ Optional Remote
Getting in touch with your lighting
Thank you for purchasing Solid Apollo's LEDWizard Smartphone and
Tablet LED controller. This state of the art controller uses the Wi-Fi
capabilities in any Smartphone or tablet to control LED Lights.
The LEDWizard Smartphone and Tablet LED controller includes a Mini
Wi-fi Router, and one RGB-W receiver and software for any Android or iOS
system. In addition to using your tablet or phone to control your lights,
you can now utilize an optional RF that has the same functionality as the
wireless app, with six zone Control
Additional receivers can be purchased to expand and control more LED
lights or creates different Zones that can be individually controlled.
This Product Manual will Review:
1. Installation
2. Use of Tablet and Smart Phone Applications
3. Using the Optional Remote
4. Technical Details
Essential Product Features
•
Compatible with both Apple
•
Easy-to-use Controls
•
Adjust Individual Zones
•
Save specific Colors and Programs
*Optional Remote
Tel. 425.582.7533
Toll Free. 866-592-3873
www.SolidApollo.com
sales@SolidApollo.com
and Android
©
Copyright Google Inc and Apple Inc
™
SolidApollo.com
Products
©
page 1
page 1
page 1
page 1
